III - 5
Operating preparations

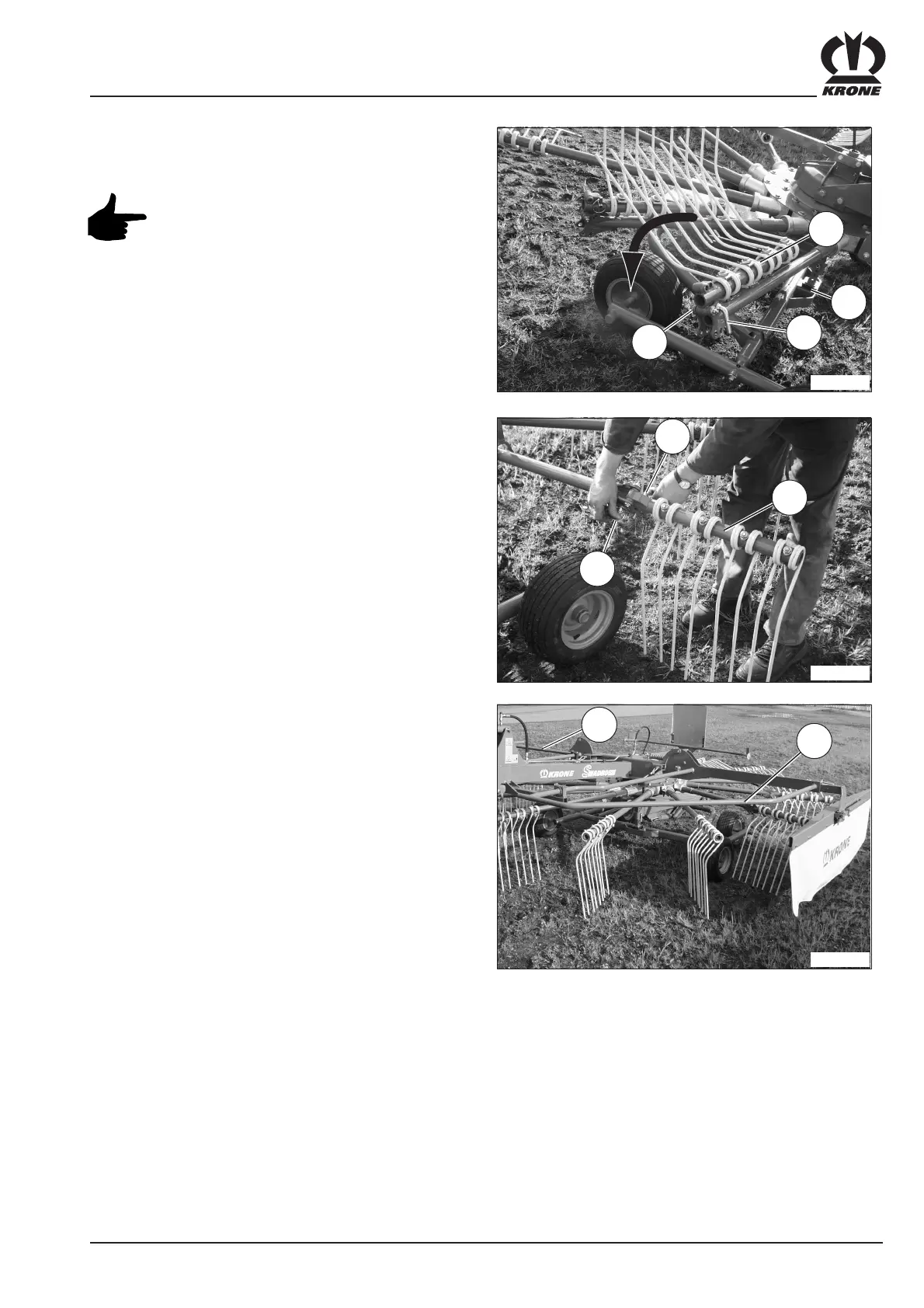

3.5 Changing from transport to
working position
• Slowly lower the rotor using the control valve until
the rubber buffer (1) rests on the frame.
• Remove the pins (2) from the folding tine arms
• Swing the tine arms (3) through 180° into working
position
SW46T008
2
3
4
1
SW46T009
2
3
4
SW46T010
5
6
• Secure tine arms (3) with pins (2) and lynch pin (4).
• Swing guard rails on right (5) and left (6) into working
position
Before changing from transport to
working position, switch off the engine
and remove the ignition key.
