IX - 2
2
5
1
4
6 7
SW46T032
1
4

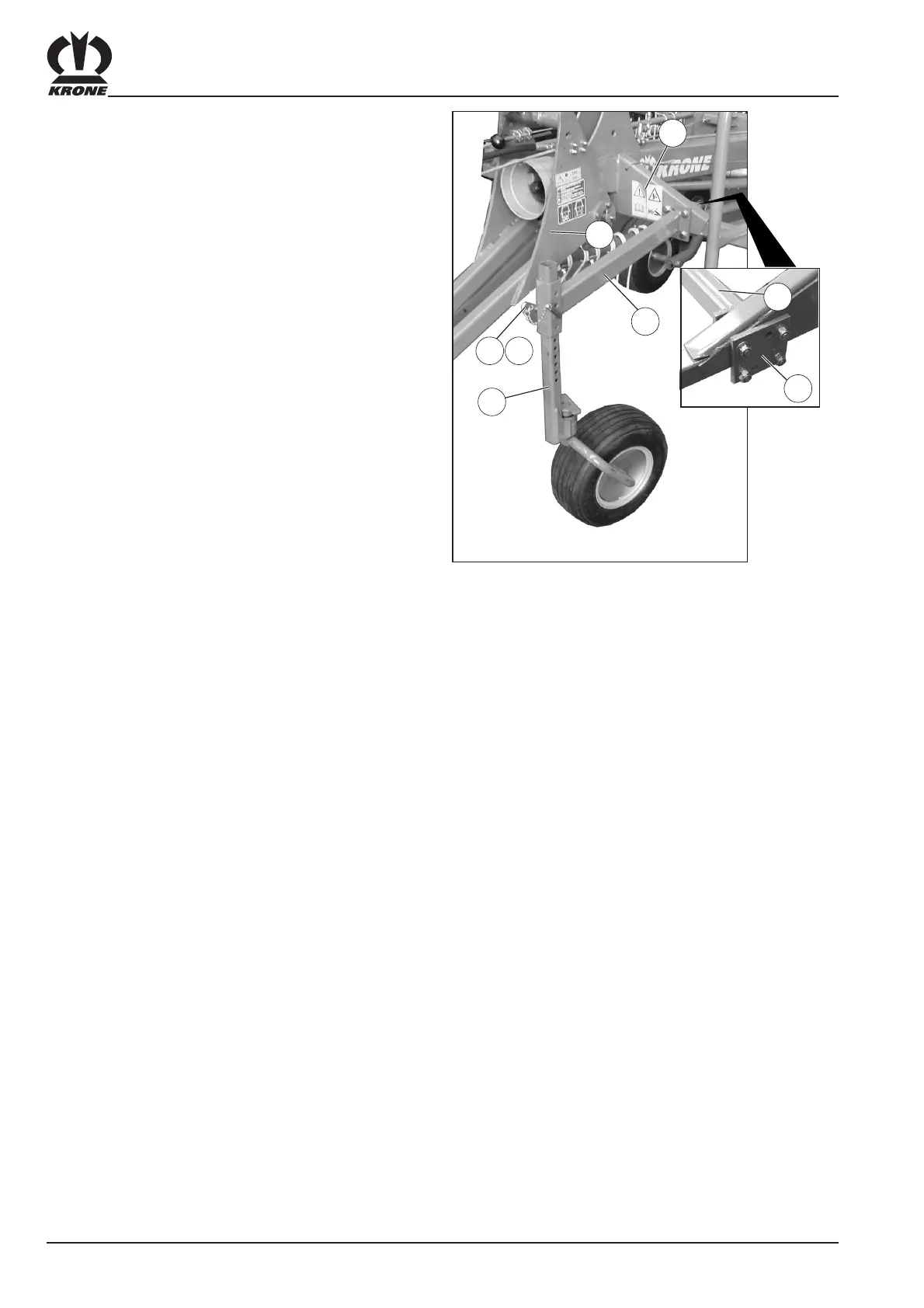

9.3 Supporting wheel
The supporting wheel (5) must always be used so it is
allowed to coast down by continuing to rotate!
Installing the supporting wheel:
• Mount the supporting wheel support (4) with the
flange plate (1) on the left (facing the direction of
travel) on the frame (2).
• Insert the supporting wheel (5) in the supporting
wheel support (4) and secure it in place with the bolt
(6) and spring cotter pin (7).
Height adjustment:
The working depth can be adjusted by changing the level
at which the supporting wheel (5) is mounted in the
supporting wheel support (4).
