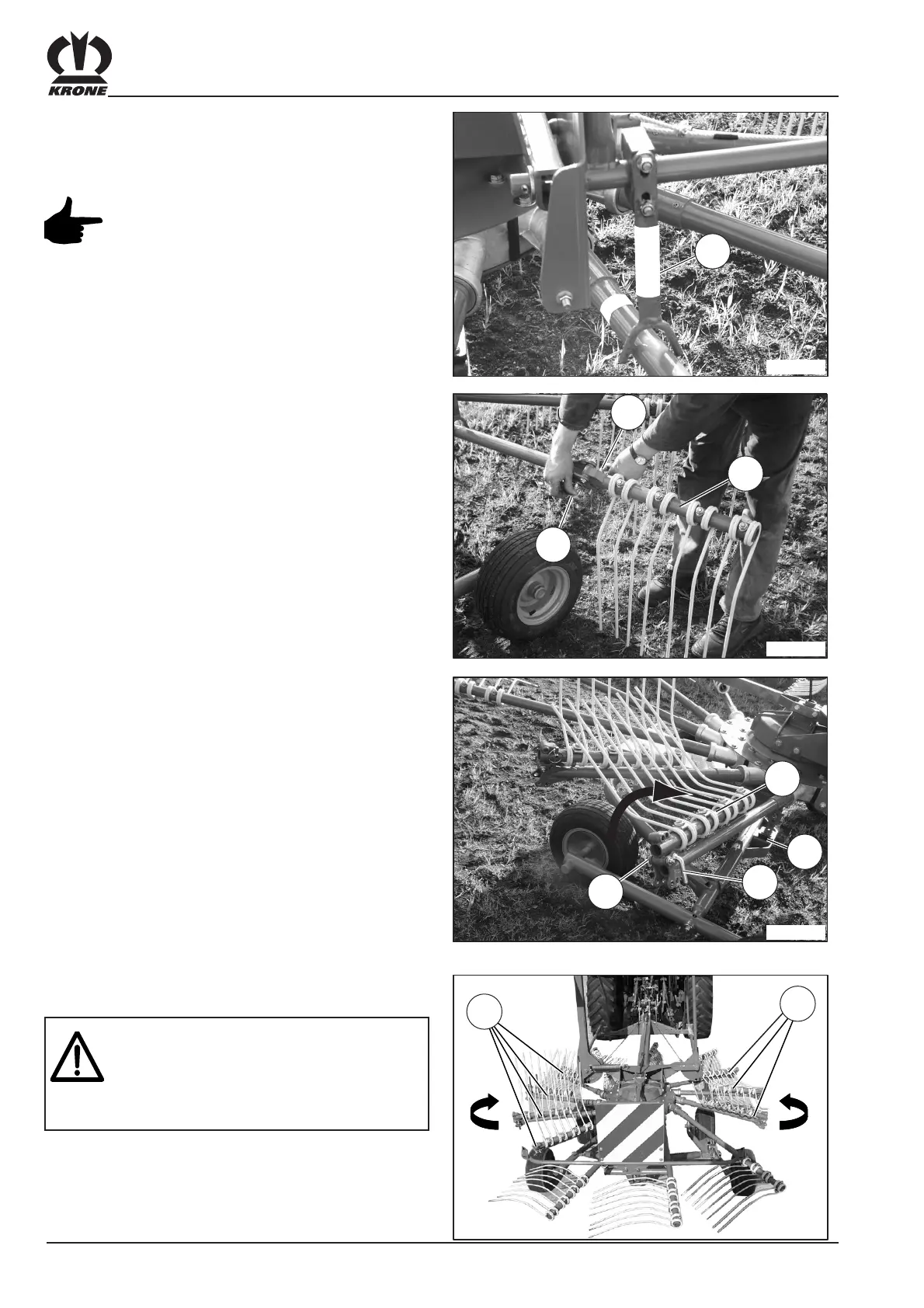

Krone Swadro 46 T - Changing from Working to Transport Position

III - 6
Operating preparations
3.6 Changing from working to
transport position
• Turn the rotor until the blocking arm (A) lines up with
the marked tine arm of the rotor.
SW46T011
A
SW46T009
2
3
4
• Push in the swath sheet (7).
• Swing up the guard rails (5) and (6).
• Remove the pins (2) from the folding tine arms (3).
• Swing the tine arms (3) through 180° into transport
position, fit pins (2) and secure with lynch pin (4).
SW46T013
2
3
4
1
Before changing from working to
transport position, switch off the engine
and remove the ignition key.
Please ensure that the seven tine arms (3)
(four tine arms on the left and three tine
arms on the right) are always swivelled in
transport position.
SW46T029
3
3
