ServiceManualEF472
20
R E P A I R S
Repairs that can be
done depend on the
degree of disassembly.
Thefollowing repairscannowbedone:
• "Replacingthecompactbrewingunit"onpage22
• ReplaceNTCtemperaturesensor,see"Replacingthethermoblock,NTCtempera
turesensorandfinewirefuse(s)"onpage23.
(Thethermoblockcanonlybereplacedafterthecompactbrewingunithasbeen
removed,see"Replacingthecompactbrewingunit"onpage22.)
• "Replacingtheflowmeter"onpage26

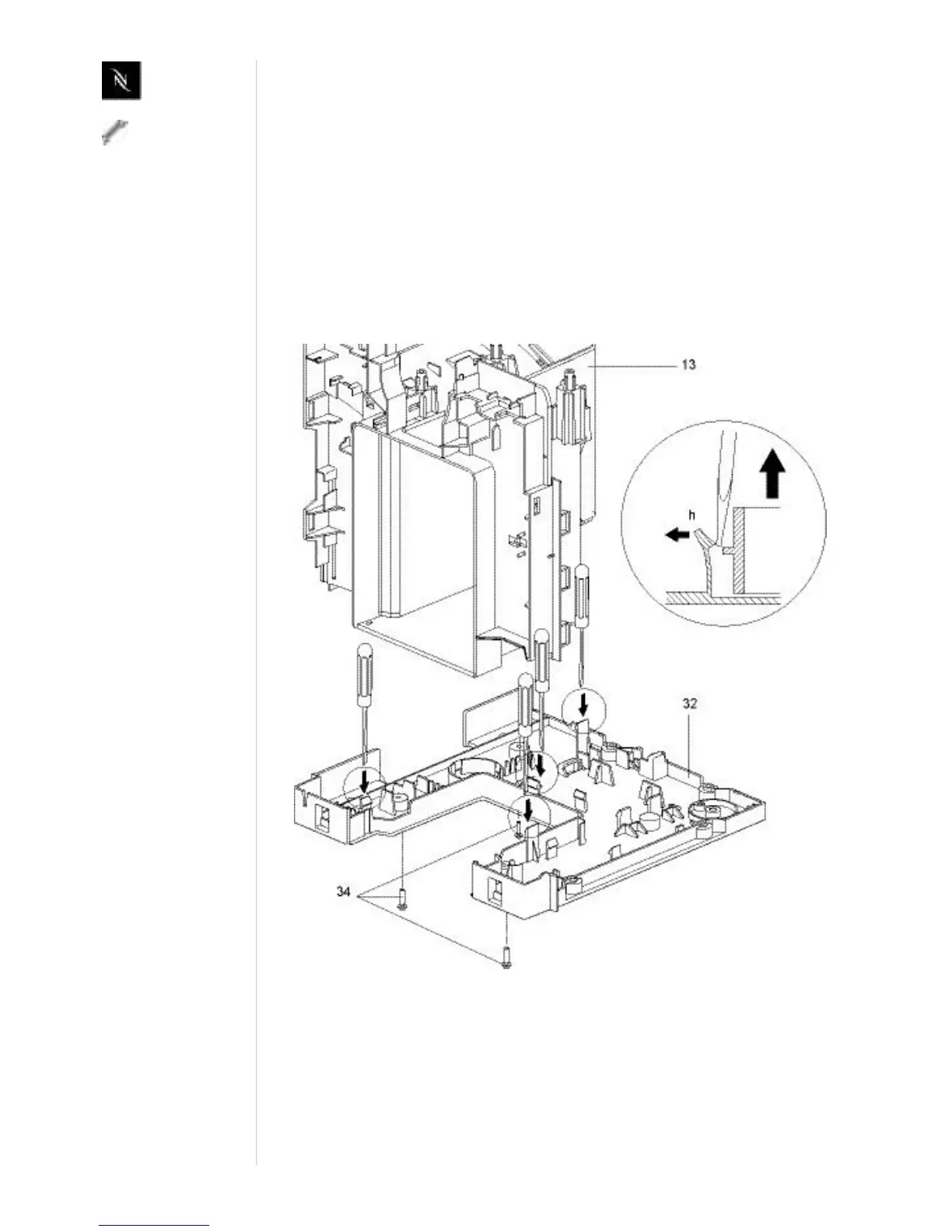

Forallotherrepairworksthesupport(13)ofthecompactbrewingunitmustbeloosened
fromthefloor(32).
14. Loosenthelastthreescrews(34)ontheundersideofthehousing(32).
15. Usethescrewdrivertocarefullyloosenthefourlockinglatches(h)andtosimulta
neouslypullthesupport(13)upwards.Intheend,carefullymovethesupport
forward.
16. Assembleinthereversesequenceaftertherepairworkshavebeencompleted.
