KSB Delta Macro
1983.843/04-EN
4.8.2 Inlet conditions, version F
LT
PI
PT

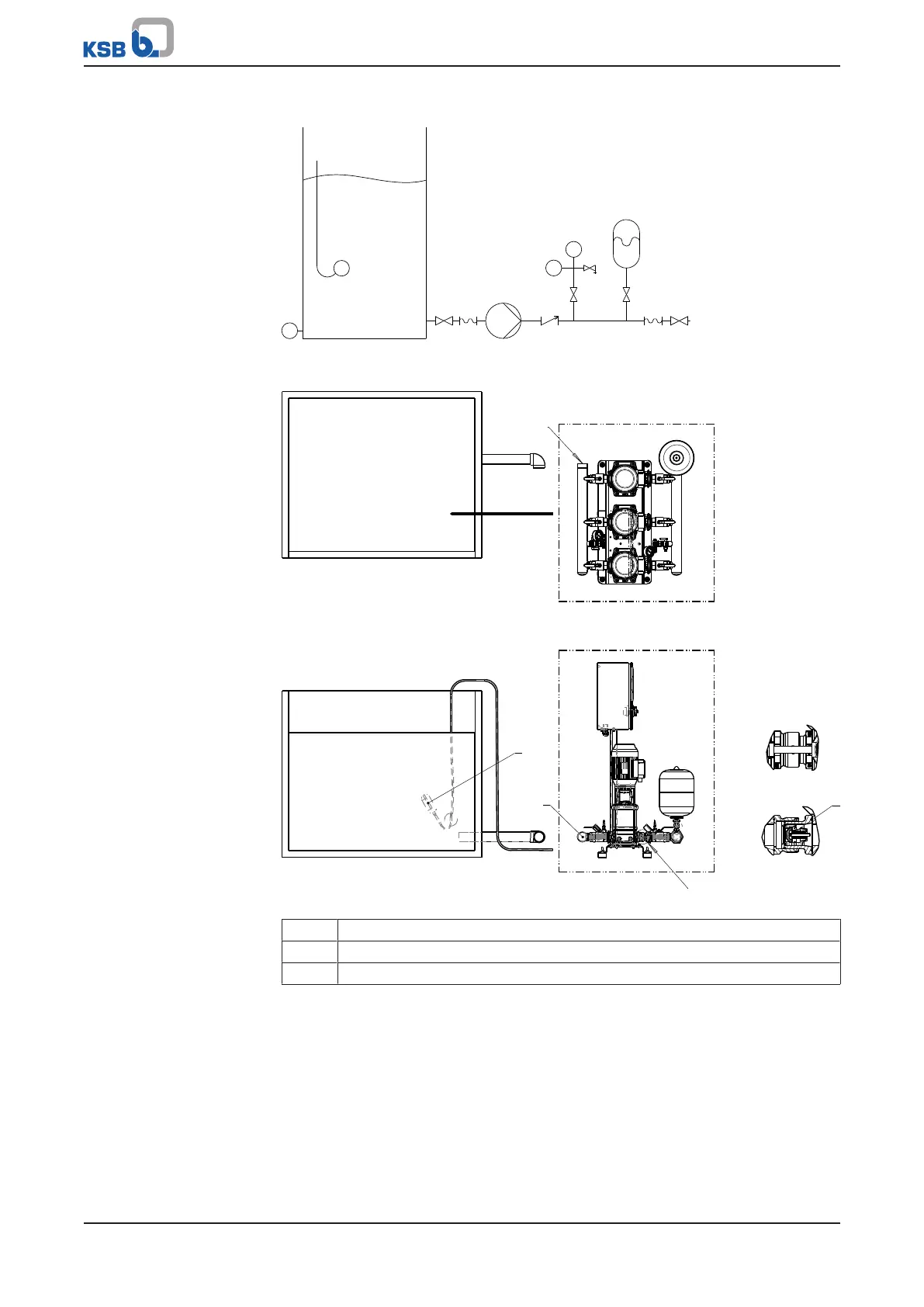

Fig.8: F = Pressure booster system with break tank arranged on same level as pump,
suction head operation
A
1
3
1
2
A
Fig.9: Scope of supply, version F
1 Suction line (included in KSB’s scope of supply)
2 Lift check valve (included in KSB’s scope of supply)
3 Dry running protection (not included in KSB’s scope of supply)
