10.1 General drawings with list of components
10.1.1 KSB Delta Macro F/VC/SVP with Movitec 2B, 4B, 6B, 10B, 15C
412
743
742.01
742.02
79-2
691
743.90
743.90
591
655
79-1
595

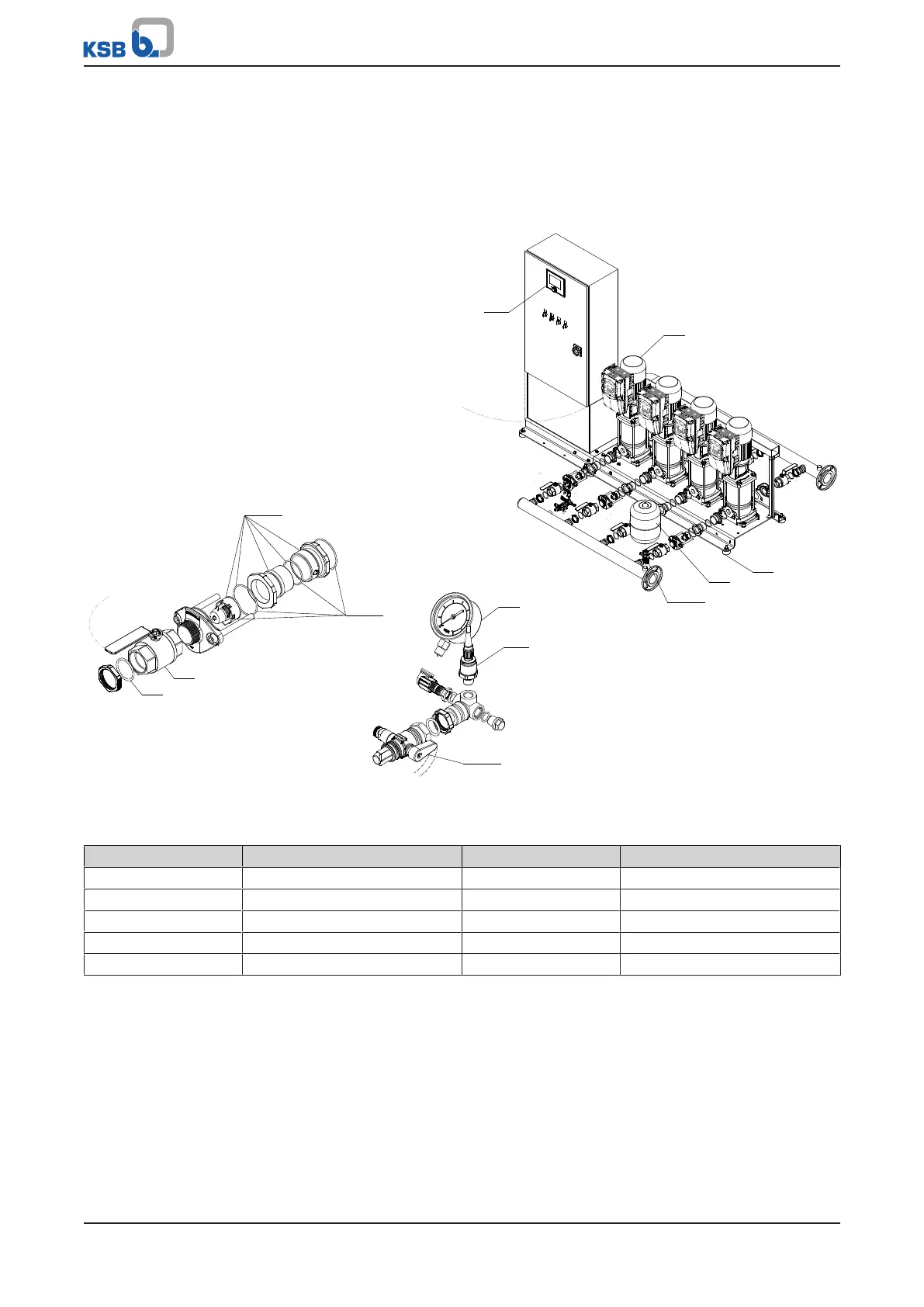

Fig.21: KSB Delta Macro F/VC/SVP with Movitec 2B, 4B, 6B, 10B, 15C
Table23: List of components
Part No. Description Part No. Description
79-1 Automatic control unit 655 Pump
79-2 Measuring transducer 691 Pressure gauge
412 O-ring 742.01/.02 Lift check valve
591 Accumulator 743 Ball/plug valve
595 Anti-vibration pad 743.90 Ball valve
The individual parts of the pump set are shown in the product literature of the pump
set.
