5 Installation at Site
25 of 60
Multi Eco

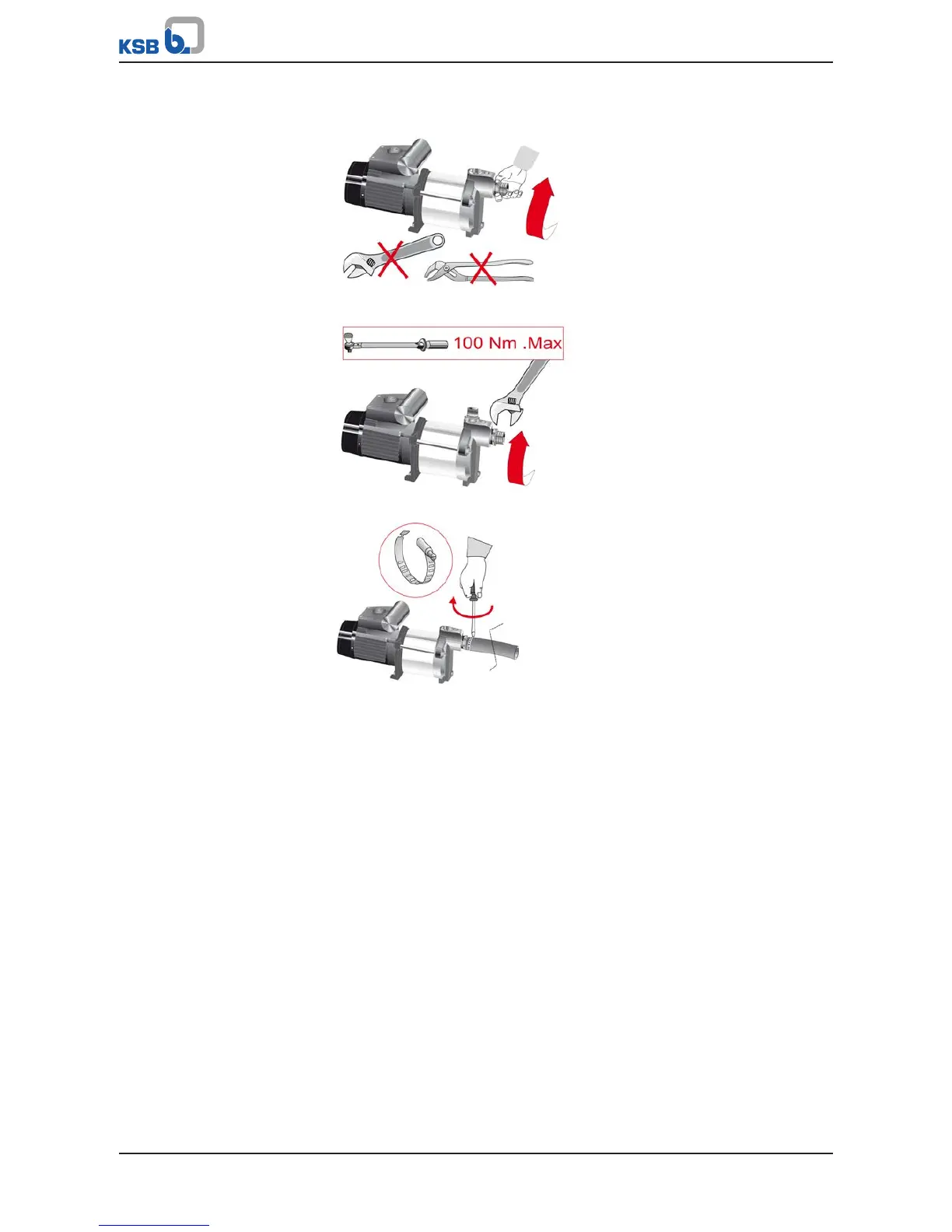

4. Screw the connection fitting into the pump.
(Screw plastic fittings in by hand.)
(Tighten metal connection fittings to a tightening torque of 100 Nm with a
wrench.)
5. Slide the suction line onto the connection fitting and fasten with a clamp.
