5 Installation at Site
26 of 60
Multi Eco

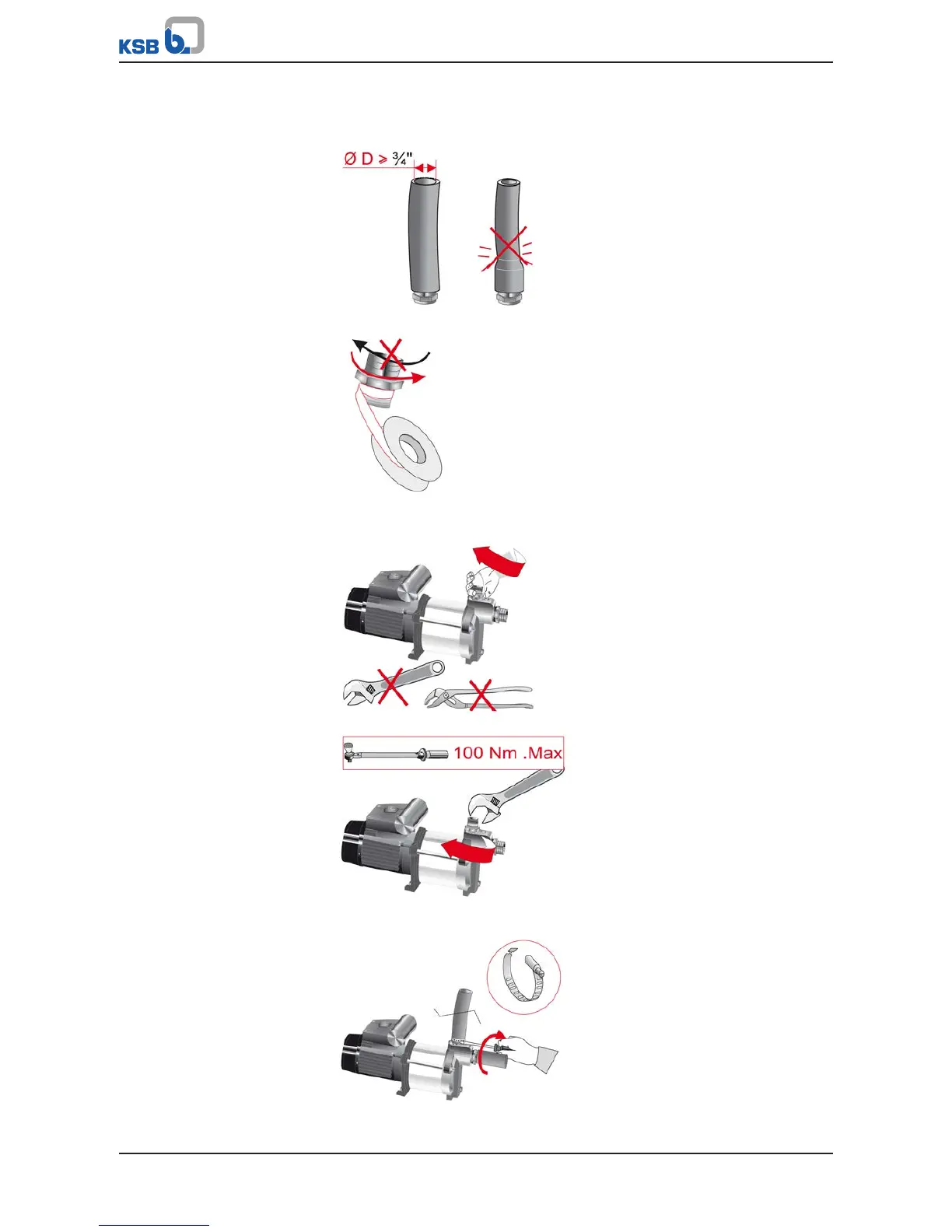

Connecting the discharge line
ü The nominal diameter of the discharge line must be at least equal to the nominal
diameter of the pump's discharge nozzle.
1. Seal the discharge line connection with Teflon tape.
2. Screw the connection fitting into the pump.
(Screw plastic fittings in by hand.)
(Screw in metal connection fittings with a wrench (tightening torque: 100 Nm)).
3. Slide the discharge line onto the connection fitting and fasten with a clamp.
