7

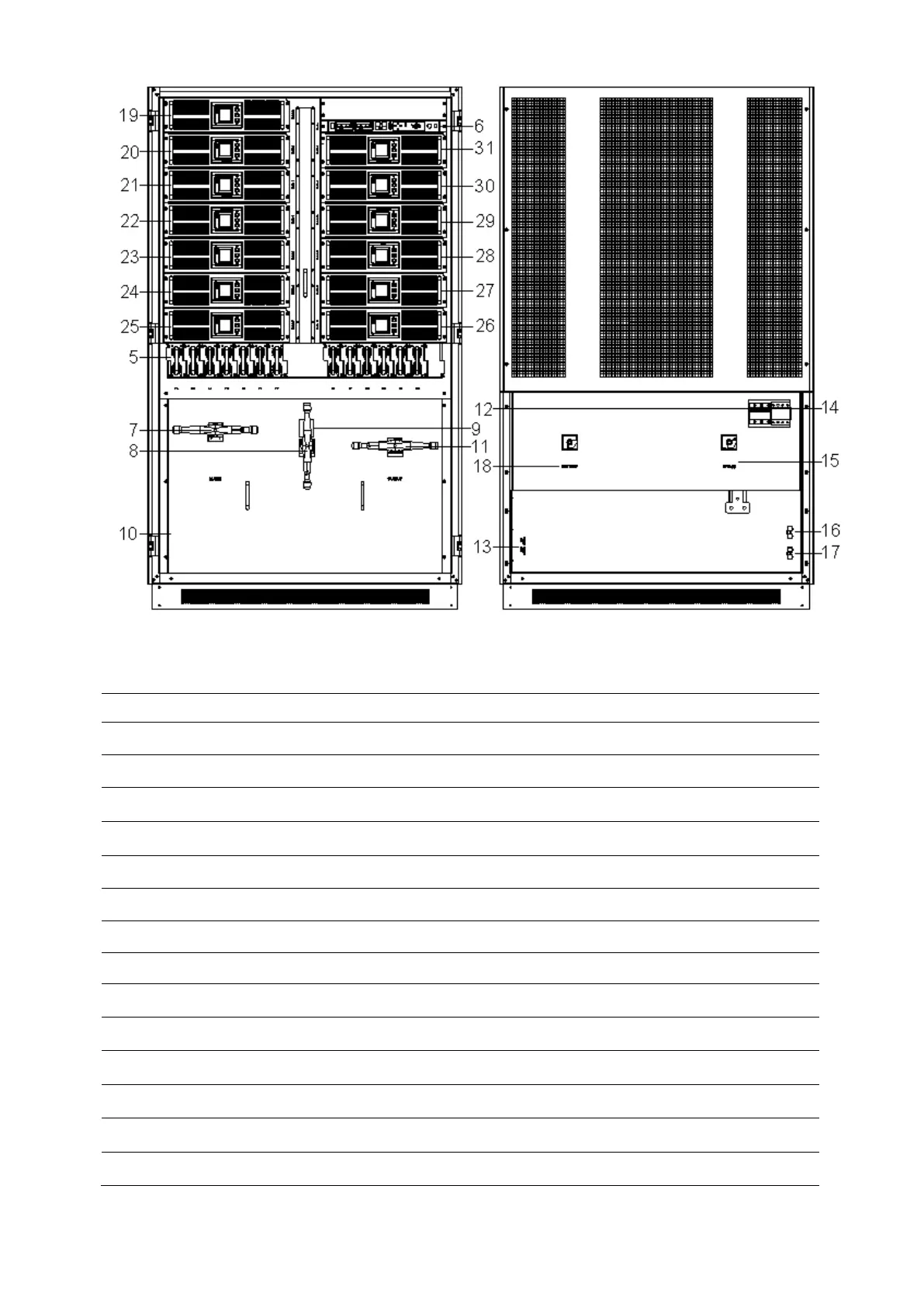

Front View
internal
Rear View
internal
(1) LCD panel : LCD and LED display
(2) Front lock
(3) Lightning arrester cover plate : Remove cover plate to replace lightning arrester
(4) Bypass switch cover plate : Remove cover to operate bypass switch
(5) Fuse box : Input fuse board and Battery fuse board inside, fuse box 1 connect ot module 1
(6) Communication module
(7) I/P Switch
(8) Maintenance switch
(9) Maintenance switch cover : Remove cover UPS transfers to Maintenance
(10) Input/Output Terminal cover : Remove cover to operate wire
(11) O/P Switch
(12) Lightning arrester
(13) Parallel port 1/2
(14) The input filter capacitor switch : connect capacitor or not
(15) Bypass Switch
(16) LBS port
