2 SETUP 10
S01466-10
–

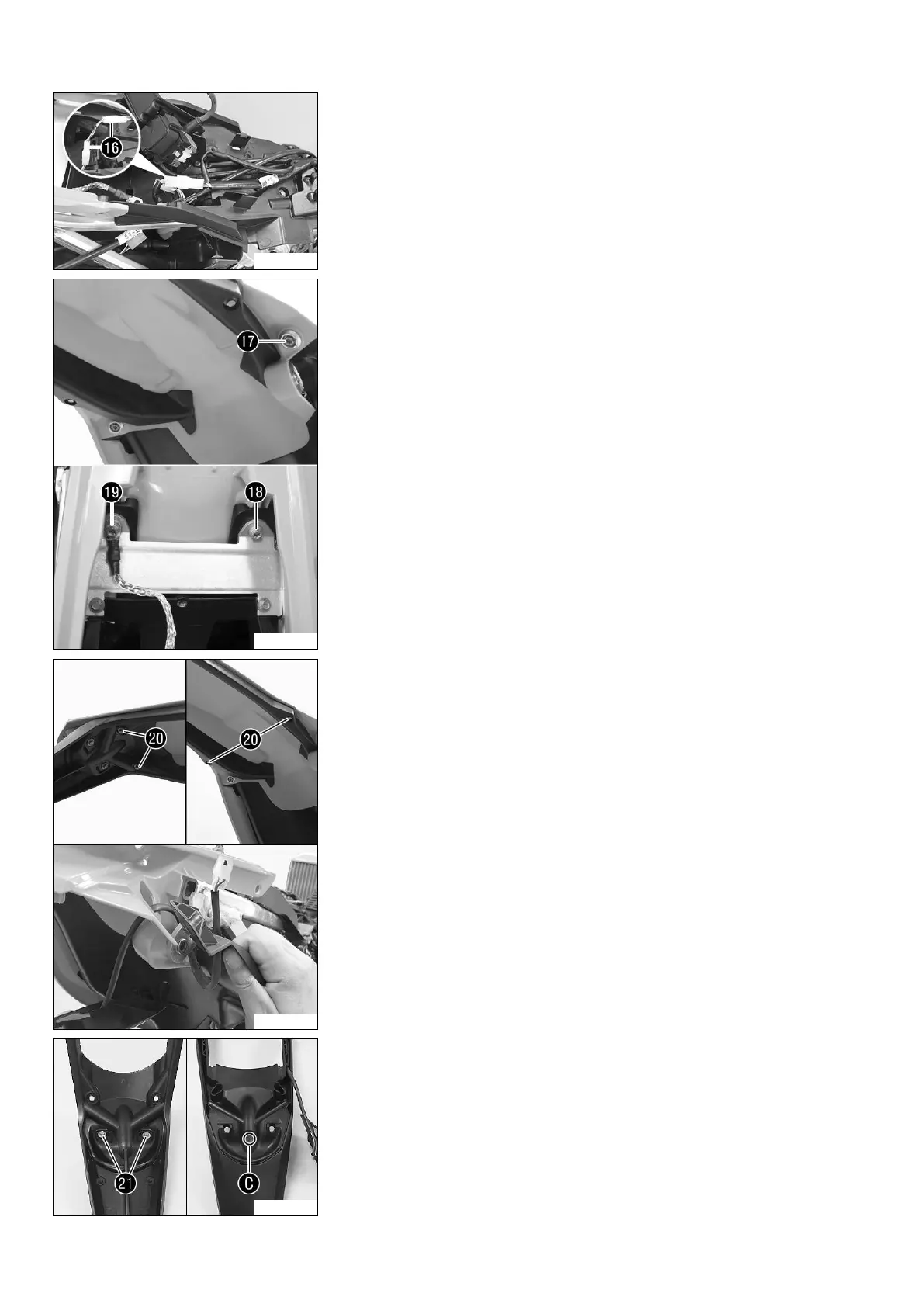

Disconnect plug-in connector
on main wiring harness and take off.
– Connect turn signal cable harness plug-in connector to the main wiring harness
plug-in connector.
E00489-11
–
Remove screw
with the collar bushing.
–
Remove screw
.
–
Remove screw
with negative cable and contact disk.
S01416-11
–
Remove screws
.
– Carefully pull the tail light cable out of the frame, paying attention to the plug
as you do so.
– Take off license plate holder with tail light toward the rear.
E00491-11
–
Remove screws
and hang the tail light to the side.
–
Drill a hole at the marking
to the size of the marking.
