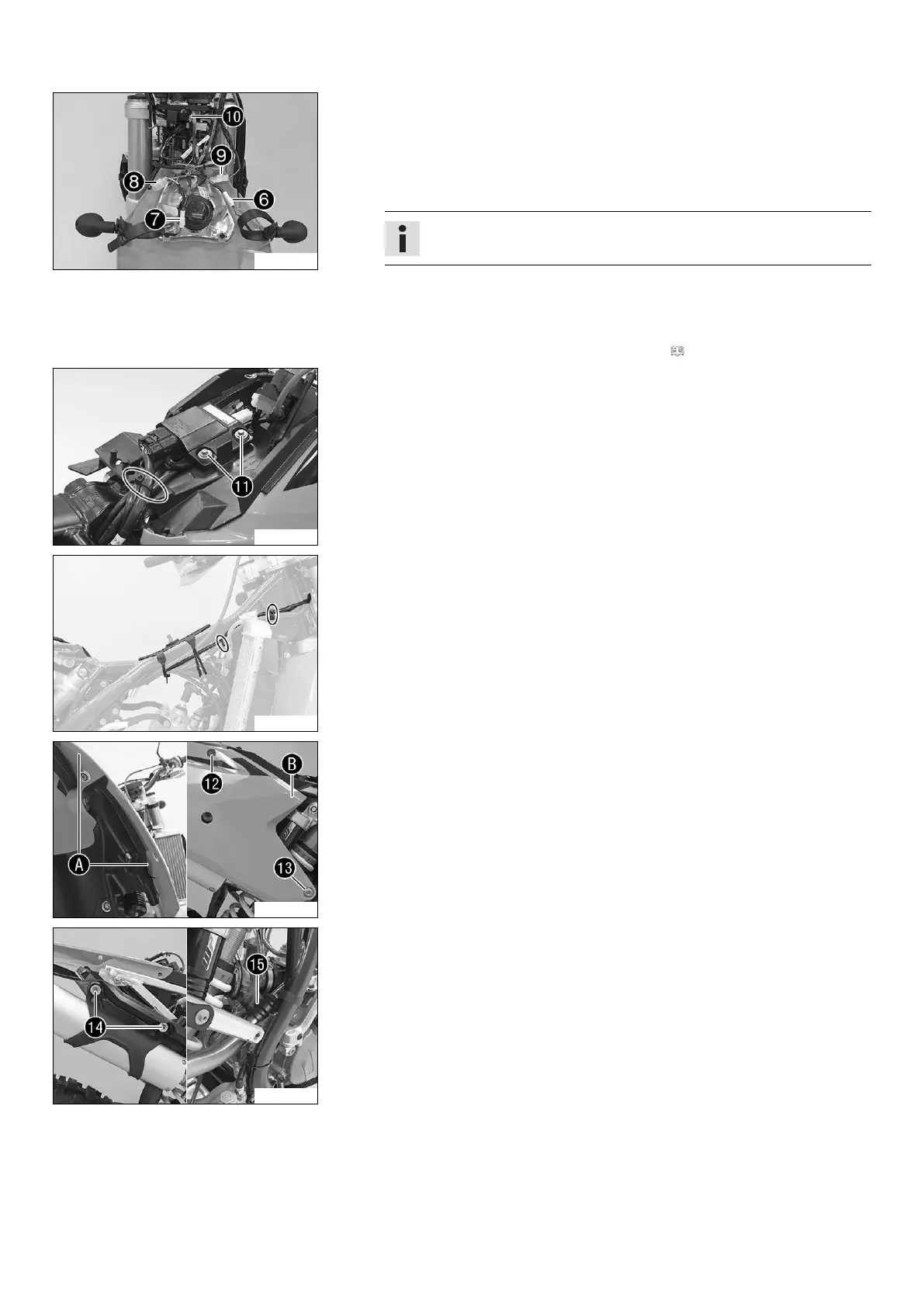

2 SETUP 9
S01460-10
– Position turn signal on the headlight mask on both sides, mount nuts with
washers and tighten.
–
Connect the plug-in connector
of the left turn signal using the violet and
brown cable colors of the turn signal cable harness.
–
Connect the plug-in connector
of the right turn signal using the black and
brown cable colors of the turn signal cable harness.
Info
Pay attention to where the brake line is routed when doing so.
–
Connect plug-in connector
of the headlight.
–
Connect plug-in connector
of the turn signal switch.
–
Secure turn signal relay
with a cable tie and plug in the connector.
– Install the headlight mask with the headlight. ( p. 25)
S01462-10
– Remove the cable tie(s).
–
Remove screws
with washers and hang the CDI unit to the side.
S01463-01
– Route the turn signal cable harness from the front to the back as far as the bat-
tery compartment.
– Position and secure turn signal cable harness using cable ties to the main
wiring harness under the rubber bands of fuel tank support.
S01464-10
–
Remove screw
.
–
Remove screw
.
–
Pull off the side cover in area
and area
and remove it toward the rear.
S01465-10
–
Remove screws
with the washers.
–
Pull off the main silencer from the manifold at rubber sleeve
.
