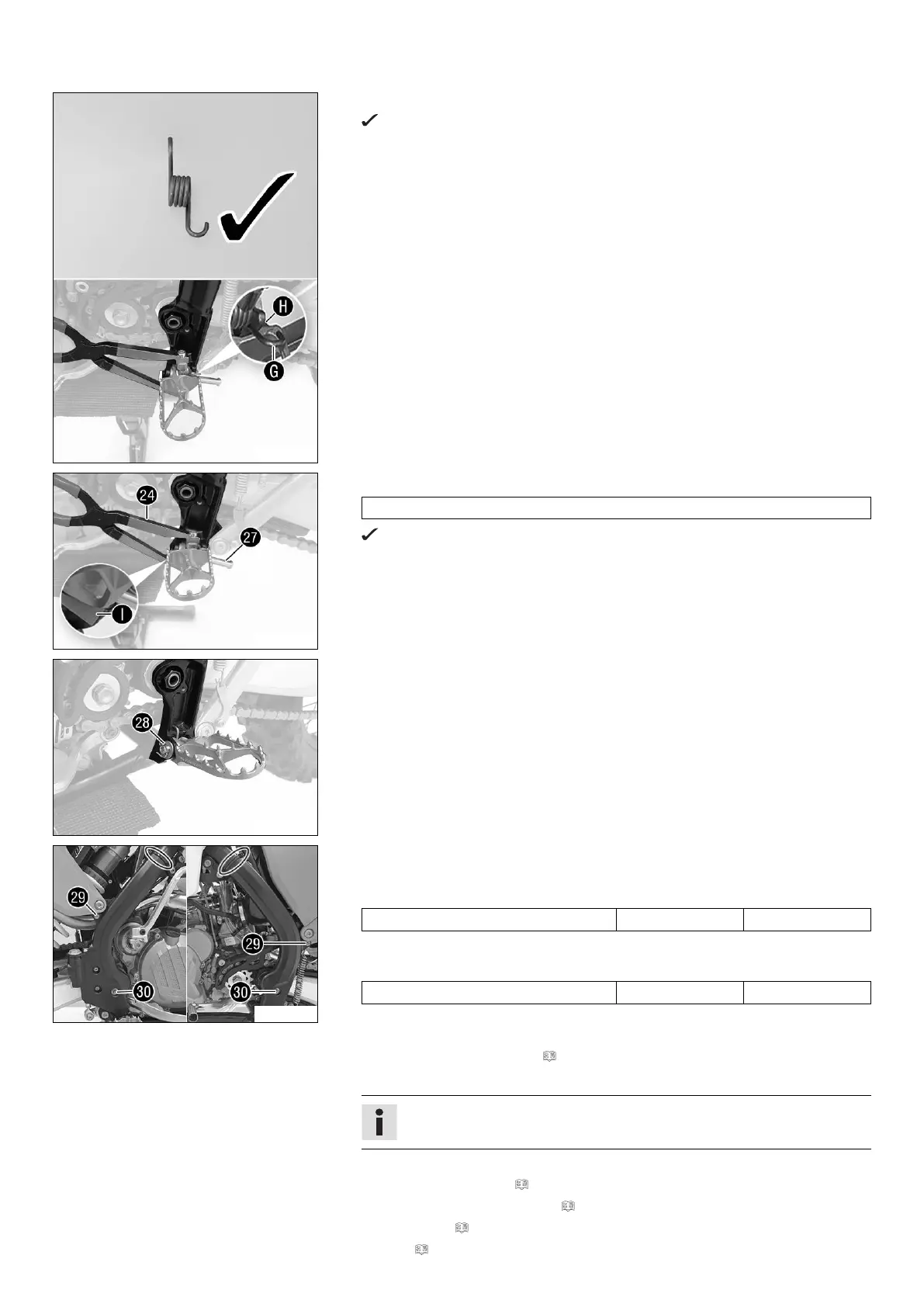

2 SETUP 14
S01399-10
Position spring as shown.
Spring
engages in area
.
S01400-11
Press the spring with special tool

.
Pliers for footrest spring (79029083000)
The special tool is applied to area
on the footrest.
Mount pin

.
S01401-11
Mount the washer and split pin

.
S01468-10
Position the frame protectors on both sides.
Mount and tighten screws

.
Guideline
Screw, frame protector M5 3 Nm (2.2 lbf ft)
Mount and tighten screws

with the washers.
Guideline
Screw, frame protector M5 3 Nm (2.2 lbf ft)
Mount the cable tie(s).
(All Six Days models, EXC AU)
Install the engine guard. ( p. 26)
Unpack and mount the KTM PowerParts included in the delivery (optional).
Info
Read the accompanying KTM PowerParts fitting instructions.
Apply the sticker included in the delivery (optional).
Set kilometers or miles. ( p. 28)
Set the speedometer functions. ( p. 28)
Set the clock. ( p. 29)
Refuel. ( p. 27)
