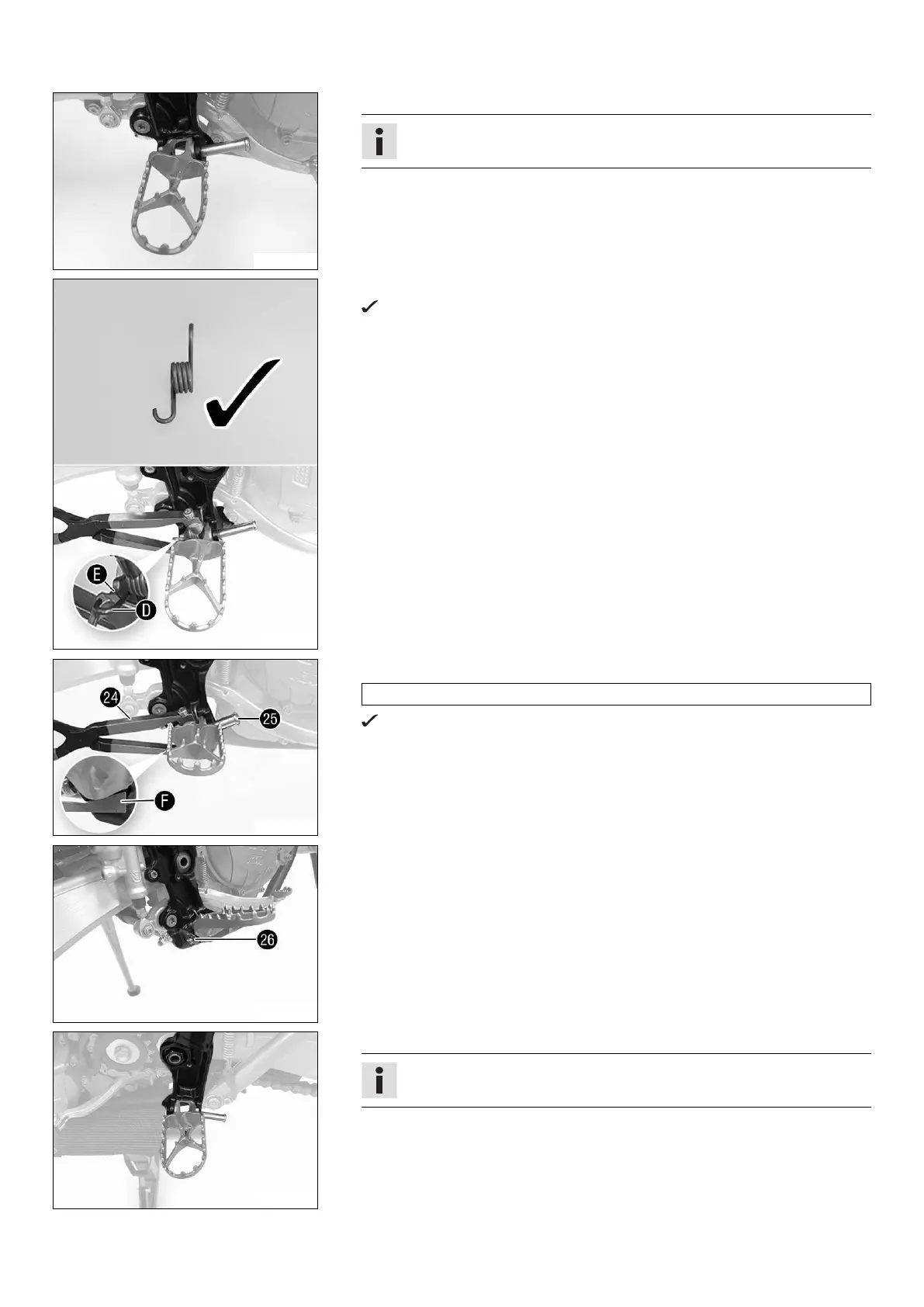

KTM 125 XC-W EU 2017 - Page 15

2 SETUP 13
R01229-10
– Position the right footrest and pin.
Info
Only insert the pin to the extent that the spring can still be mounted.
S01395-11
– Position spring as shown.
Spring

engages in area

.
S01396-11
–
Press the spring with special tool

.
Pliers for footrest spring (79029083000)
The special tool is applied to area

on the footrest.
–
Mount pin

.
S01397-11
–
Mount the washer and split pin

.
S01398-10
– Position the left footrest and pin.
Info
Only insert the pin to the extent that the spring can still be mounted.
