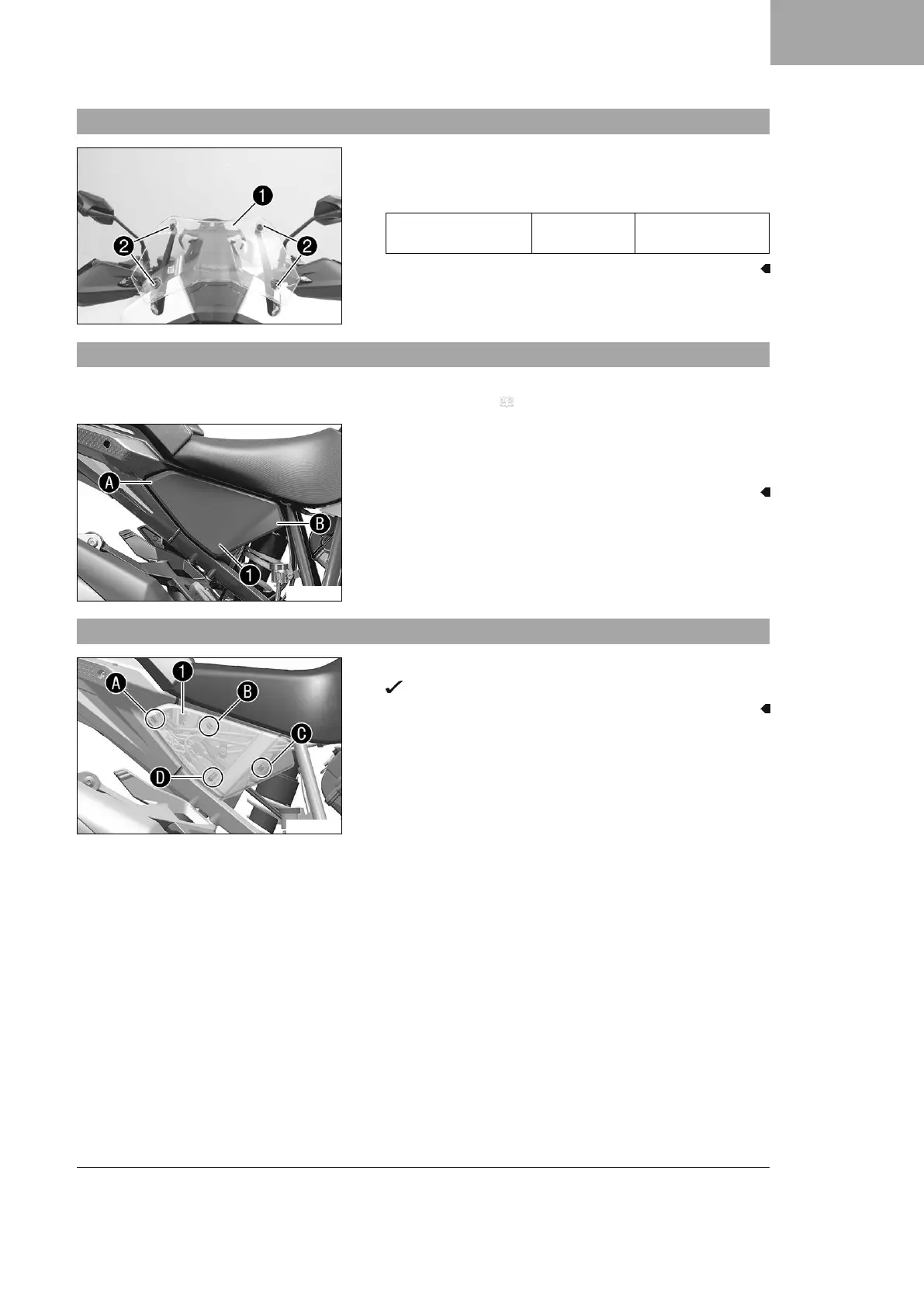

3.2 Installing the windshield
E02347-11
–
Position windshield
1
.
–
Mount and tighten screws
2
with the rubber bushings.
Guideline
Screw, windshield M5x14 3.5 Nm
(2.58 lbf ft)
3.3 Removing the rear right side cover
Preparatory work
– Remove the seat. ( p. 10)
E02423-10
Main work
–
Take off cover
1
in area
A
and
B
.
– Take off the cover.
3.4 Installing the rear right side cover
E02425-10
–
Position cover
1
and attach it in areas
A
,
B
,
C
and
D
.
The cover engages with an audible click.
