KTM 1290 SUPER ADVENTURE R User Manual

3 WORK
8

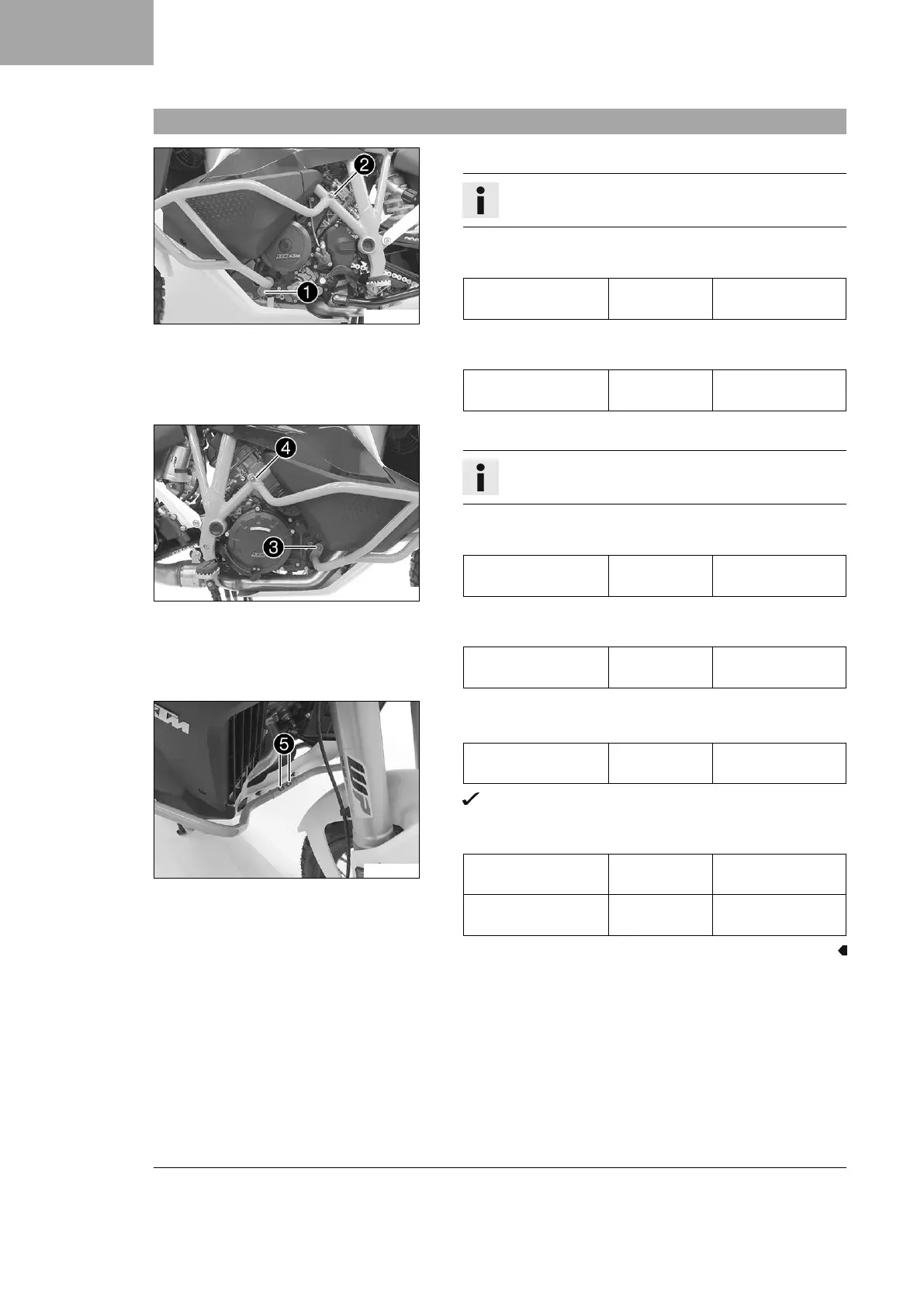

3.1 Installing the crash bar
E02352-11
– Position the left crash bar with the frame protector.
Info
Cover the components to protect them against damage.
–
Mount screw
1
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M8 25 Nm (18.4 lbf ft)
–
Position clamps and mount screw
2
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
E02351-11
– Position the right crash bar with the frame protector.
Info
Cover the components to protect them against damage.
–
Mount screw
3
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M8 25 Nm (18.4 lbf ft)
–
Position clamps and mount screw
4
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
E02350-11
–
Mount and tighten fittings
5
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
The crash bars are equally aligned with each other.
– Tighten all the screws of the crash bar.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Remaining screws,
chassis
M8 25 Nm (18.4 lbf ft)
