ERGONOMICS 8
109

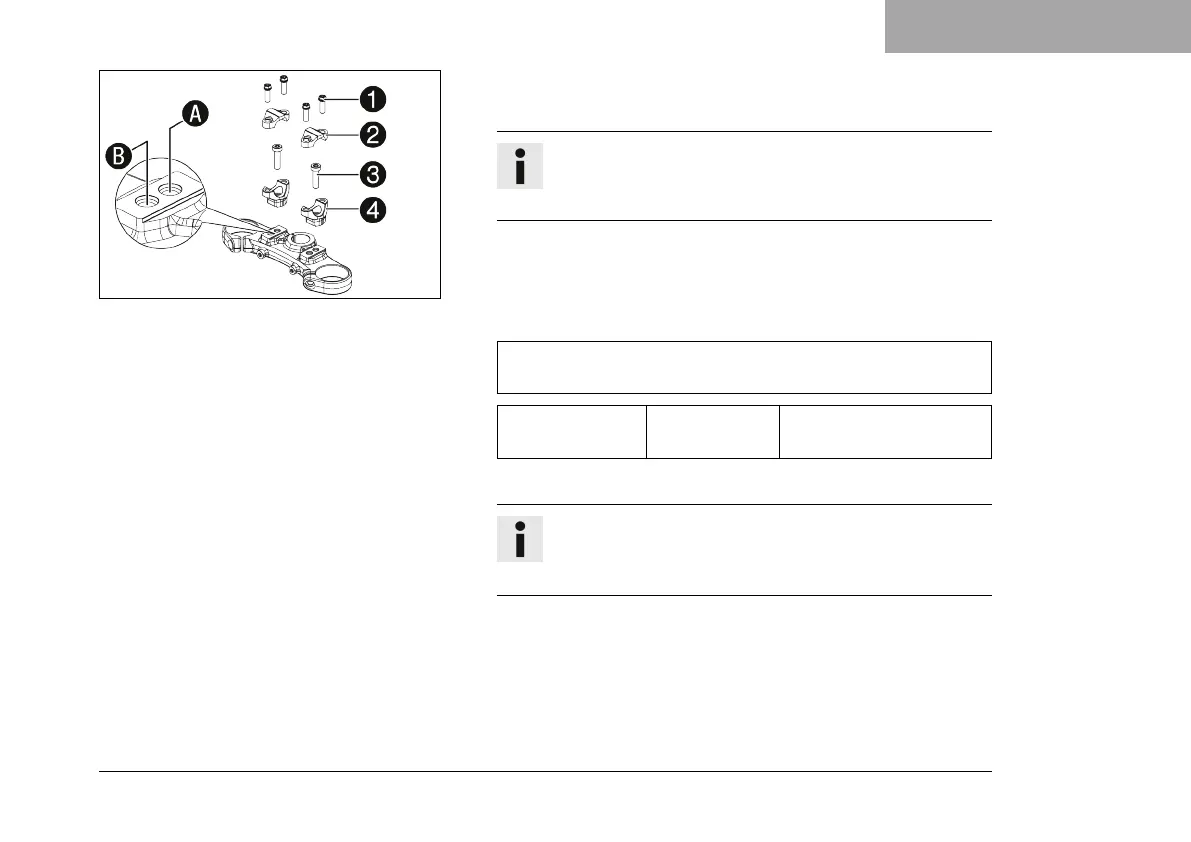

V01210-10
–
Remove screws
1
. Take off the handlebar clamps
2
. Posi-
tion the handlebar so that screws
3
are accessible.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
3
. Take off handlebar supports
4
.
–
Move the handlebar supports into the desired position
A
or
B
. Mount and tighten screws
3
.
Guideline
Mount the left and right handlebar supports in the same
position.
Screw, handle-
bar support
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position the handlebar clamp. Mount screws
1
and tighten
evenly.
