15 WHEELS, TIRES

194

K01366-10

–

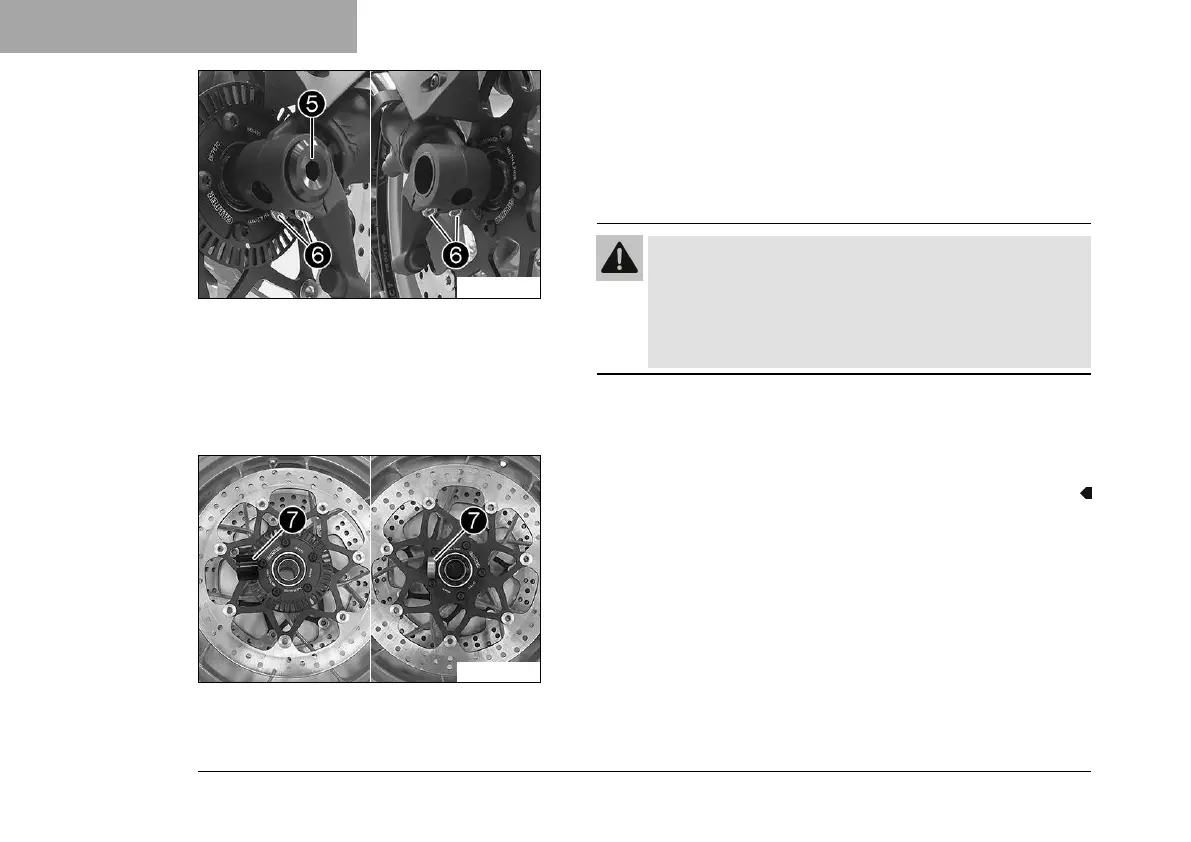

Loosen screw

by several rotations.

–

Loosen screws

–

Press on screw

to push the wheel spindle out of the axle

clamp.

–

Remove screw

Warning

Danger of accidents Damaged brake discs reduce the

braking effect.

– Always lay the wheel down in such a way that the

brake discs are not damaged.

– Hold the front wheel and remove the wheel spindle. Take the

front wheel out of the fork.

K01367-10

–

Remove spacers
