RT120Q Operator’s Manual Backhoe - 121
Set Up
Prepare Backhoe

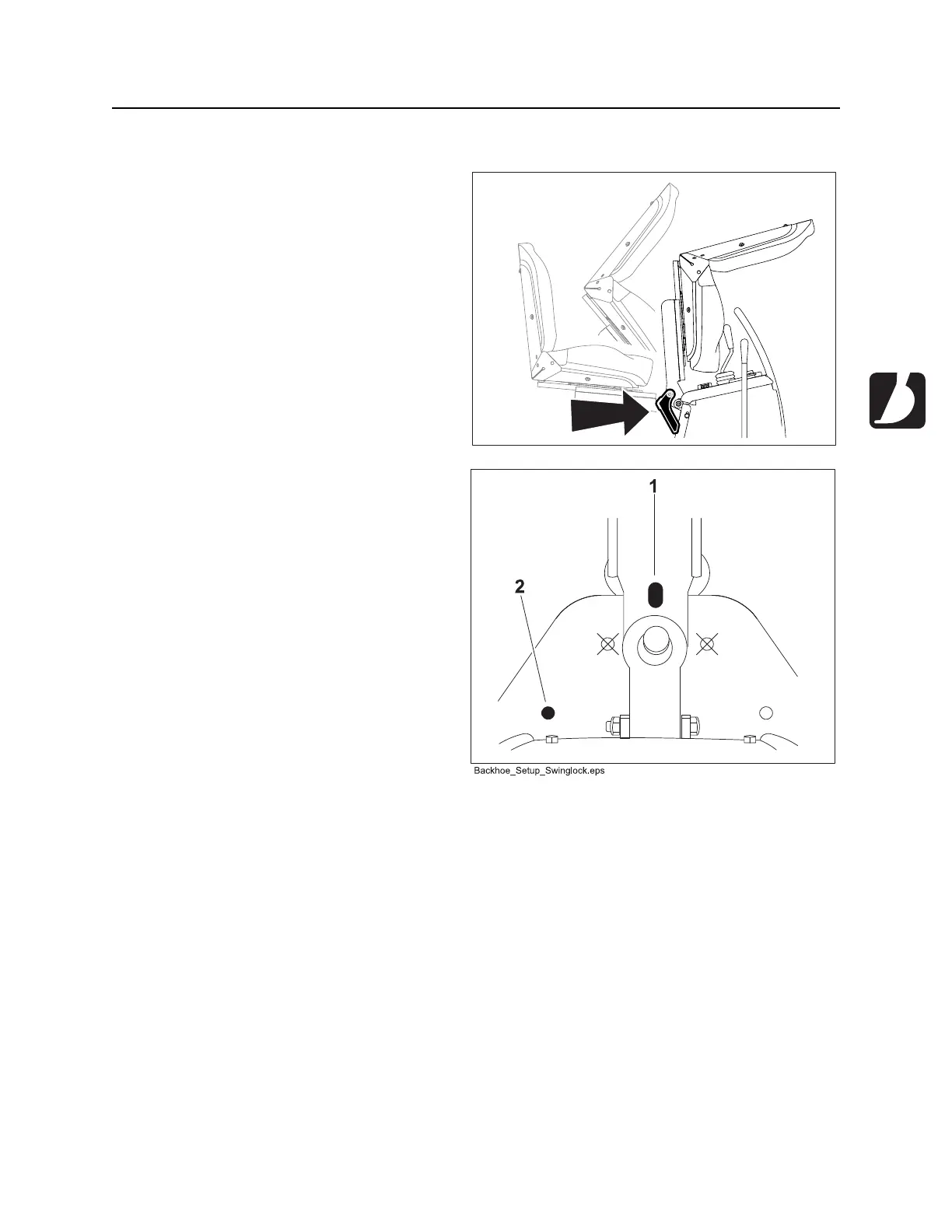

1. Disengage seat lock (shown) and rotate
seat out of stowed position.
2. Remove swing lock pin from hole (1) and
store in hole (2).
3. Raise boom to release tension on stow
lock.
4. Release stow lock by pushing handle
forward. For more information about stow
lock, see page 63.
Backhoe_Seat_32016.eps
To Next Page
