5.6 Replacing the Antenna Gyro
Assembly
1. Remove the main PCB cover, as described in
“Removing the Main PCB Cover” on page 106.
2. Using a
3
8" nut driver/socket, remove the four nuts
and washers securing the antenna gyro to the
reflector bracket (see Figure 5-8). The nut on the
bottom right also secures a cable clamp. Set the
nuts, washers, and cable clamp aside.
3. Disconnect the antenna gyro Molex connector
from the main PCB (see Figure 5-3 on page 107).
Remove the old antenna gyro assembly.
4. Connect the new antenna gyro’s Molex connector
to the main PCB.
5. Replace the antenna gyro gasket (see Figure 5-8).
Maintenance
54-0147
111
Make sure the cable passes
through the PCB access slot to
protect the wires from the edge of
the PCB frame.
Gyro
Gasket
Bracket

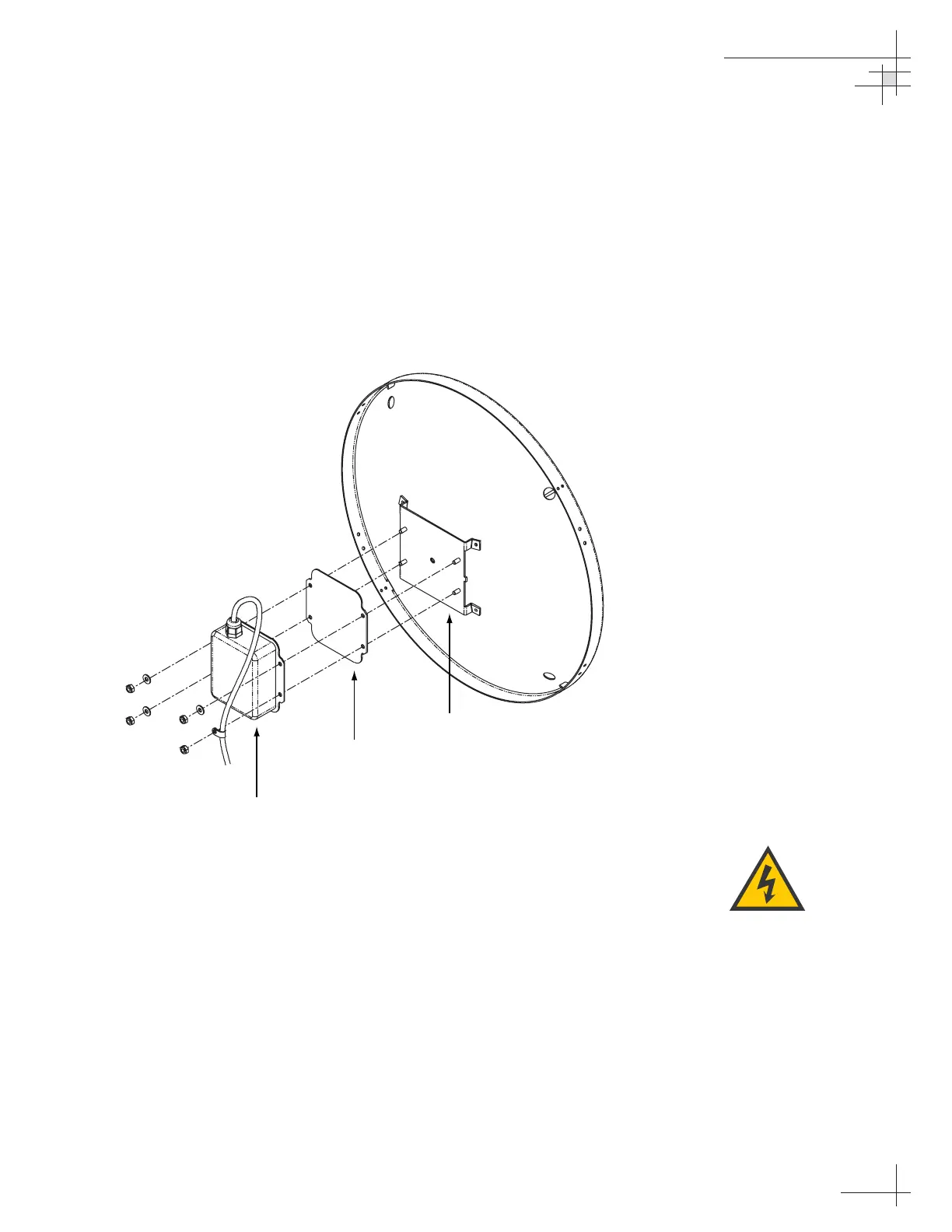

Figure 5-8
Replacing the Antenna Gyro
Assembly

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KVH Industries TracVision G4 and is the answer not in the manual?

KVH Industries TracVision G4 Specifications

General IconGeneral
Operating Temperature-25°C to +55°C
Maximum Wind Speed Survival100 knots
TypeSatellite TV Antenna
Tracking TechnologyDigital
PolarizationLinear
Elevation Range10° to 80°
Frequency Range10.7-12.75 GHz
Maximum Wind Speed Operational50 knots
HumidityUp to 100%
CompatibilityDIRECTV, DISH Network
