Installation
54-0147
19
2.3 Mounting the GyroTrac Sensor
GyroTrac comes with the following two mounting brackets:
Horizontal Sensor Bracket
Attaches directly to the sensor module housing
and must be used in all mounting arrangements
Vertical Sensor Bracket
For mounting the sensor to a vertical surface
These two brackets should enable you to place the sensor module
as level as possible. If you are unable to place the sensor module
in a level arrangement, refer to “Entering Gyro Offset Values” on
page 75 to compensate for the offset.
To mount the GyroTrac sensor, choose either of the following
options:
Option 1 - Mounting the Sensor to a Horizontal Surface
Option 2 - Mounting the Sensor to a Vertical Surface
The following sections describe how to mount the sensor for both
of these options.

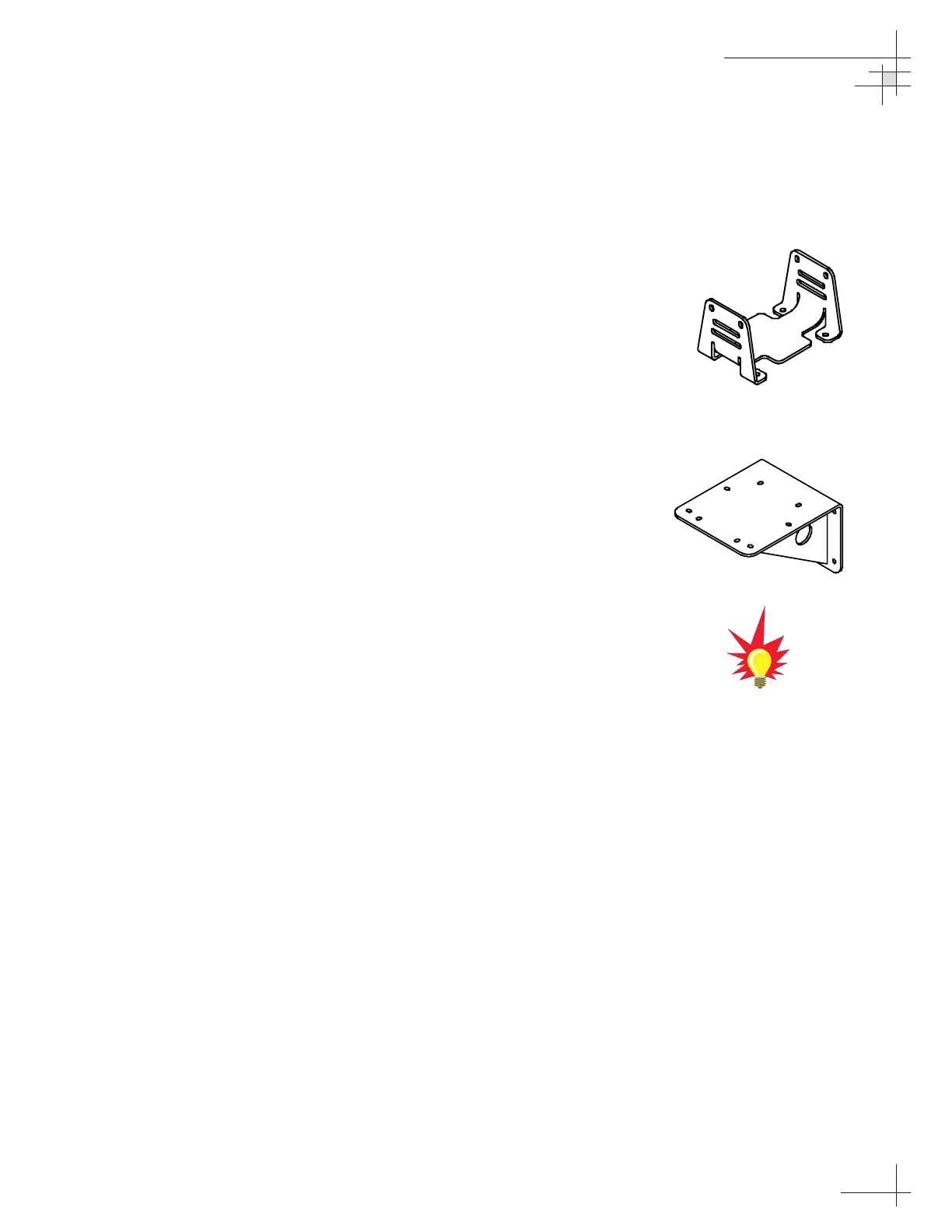

Figure 2-9
Horizontal Sensor Bracket
Figure 2-10
Vertical Sensor Bracket
Be sure to follow the guidelines in
“Choosing the Best Location for the
GyroTrac Sensor” on page 14.
