KVH Industries TracVision G4 User Manual

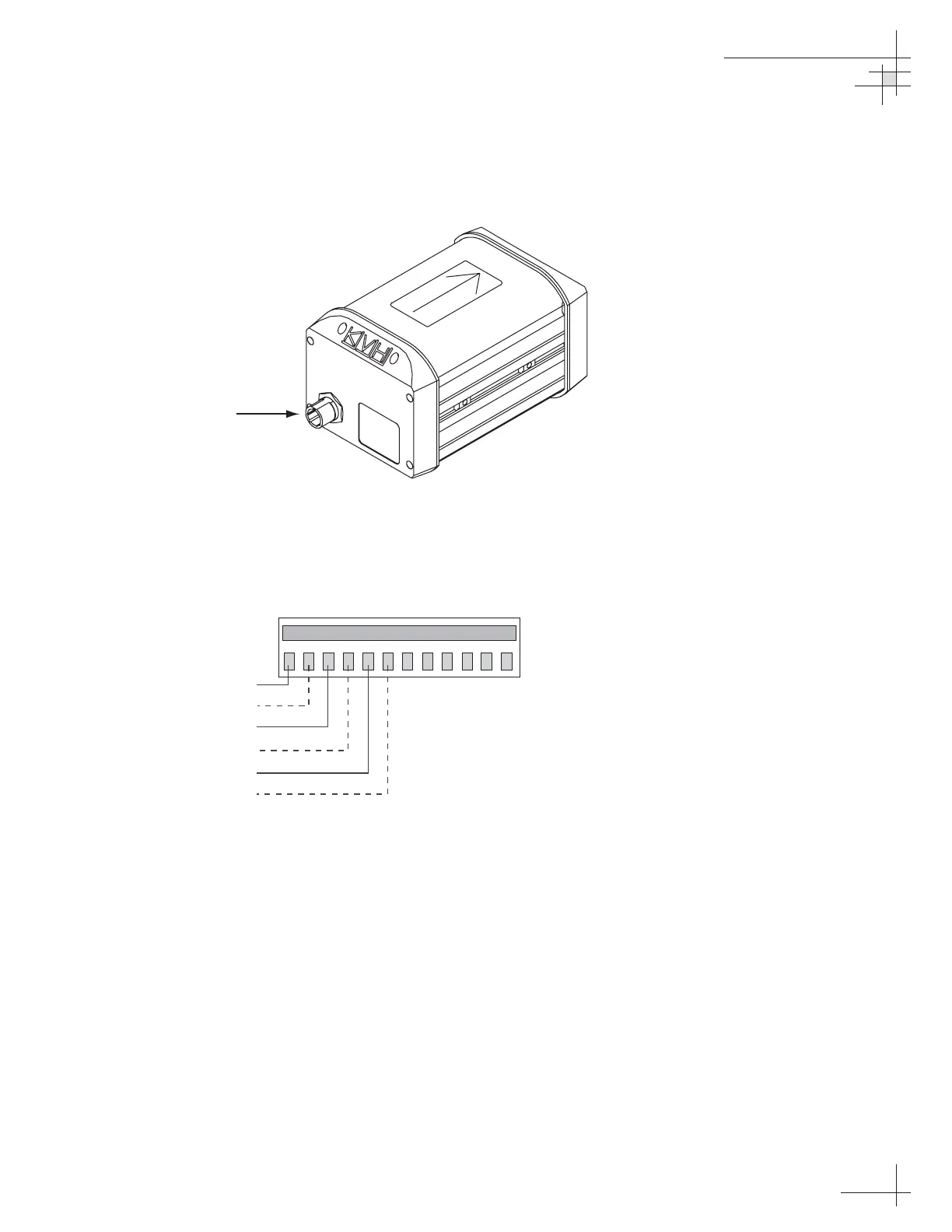

Connecting the GyroTrac Sensor Cable
1. Connect the connectorized end of the sensor cable
to the GyroTrac sensor module. Twist until locked
in place.
2. Connect the other end of the sensor cable to the
blue ADCU terminal strip connector as shown in
Figure 2-25.
Installation
54-0147
33
13 14 232221201918 24171615
White/Green
White/Blue
Blue/White
White/Orange
Orange/White
Green/White
Blue Label
Sensor Cable
Connector
Figure 2-24
GyroTrac Sensor Connector
Figure 2-25
Sensor Cable to ADCU Wiring
