THROTTLE LEVER ADJUSTMENT
Adjust the engine idling speed before
adjusting the throttle lever free play.
To adjust throttle free play:
1. Slide the rubber sleeves (1) back to expose
the throttle cable adjuster (2).
2. Loosen the lock nut (3), then turn the
adjuster to obtain the correct free play.
(1~4 mm or 0.04~0.16 in)
3. Tighten the locknut and reinstall the
sleeve.
Other checks:
Check the throttle cable for kinks and signs of
wear that could cause stretching or failure.
Lubricate the throttle cable with a
commercially available lubricant to prevent
premature wear and corrosion.
NOTE:
96
(1)
(1)
(2)
(3)

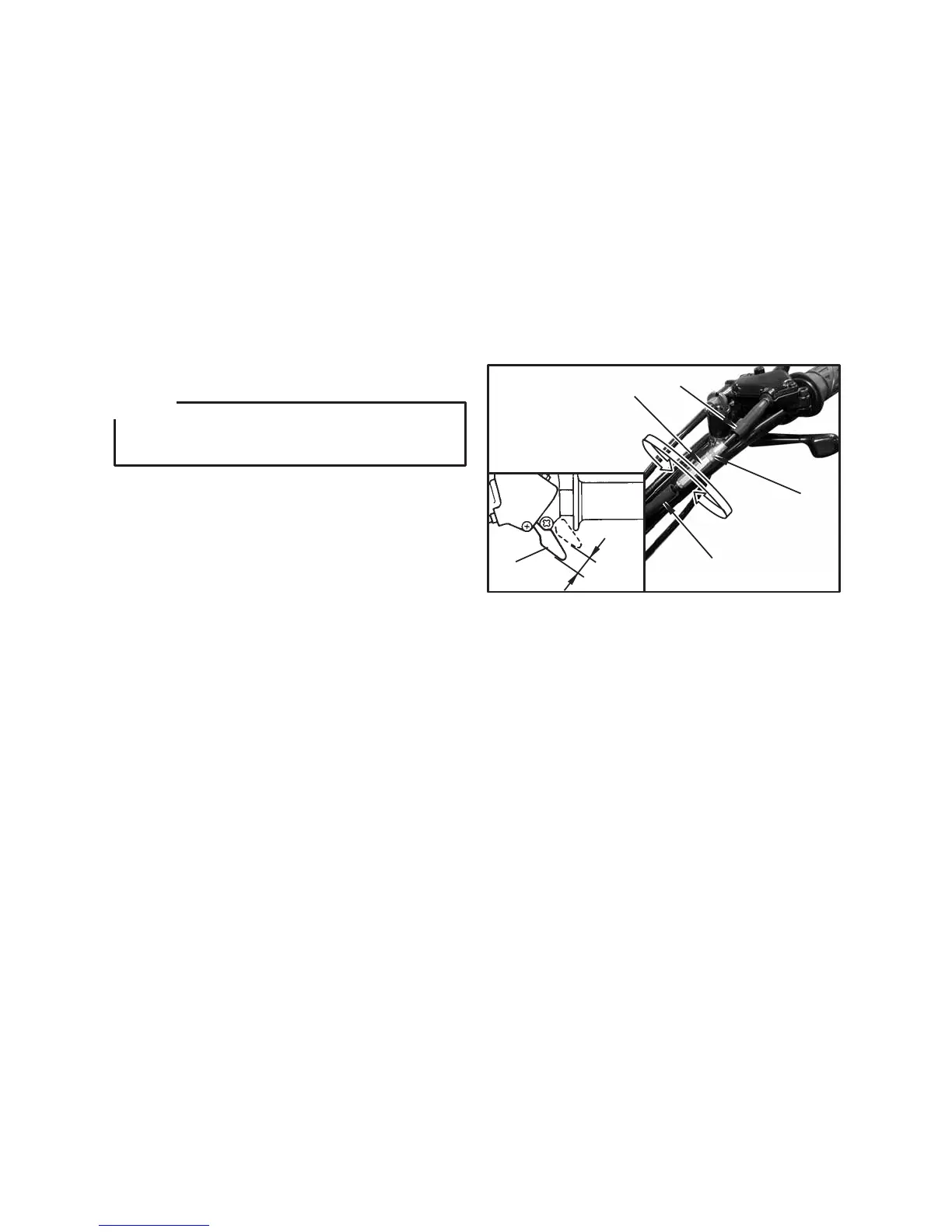

(1) Rubber sleeve (2) Cable a
(3
(A) 1~4 mm (0.04~0.16 in)
djuster
) Locknut (4) Throttle lever
(4)
(A)
