RES
OFF
ON
(2)
(1)

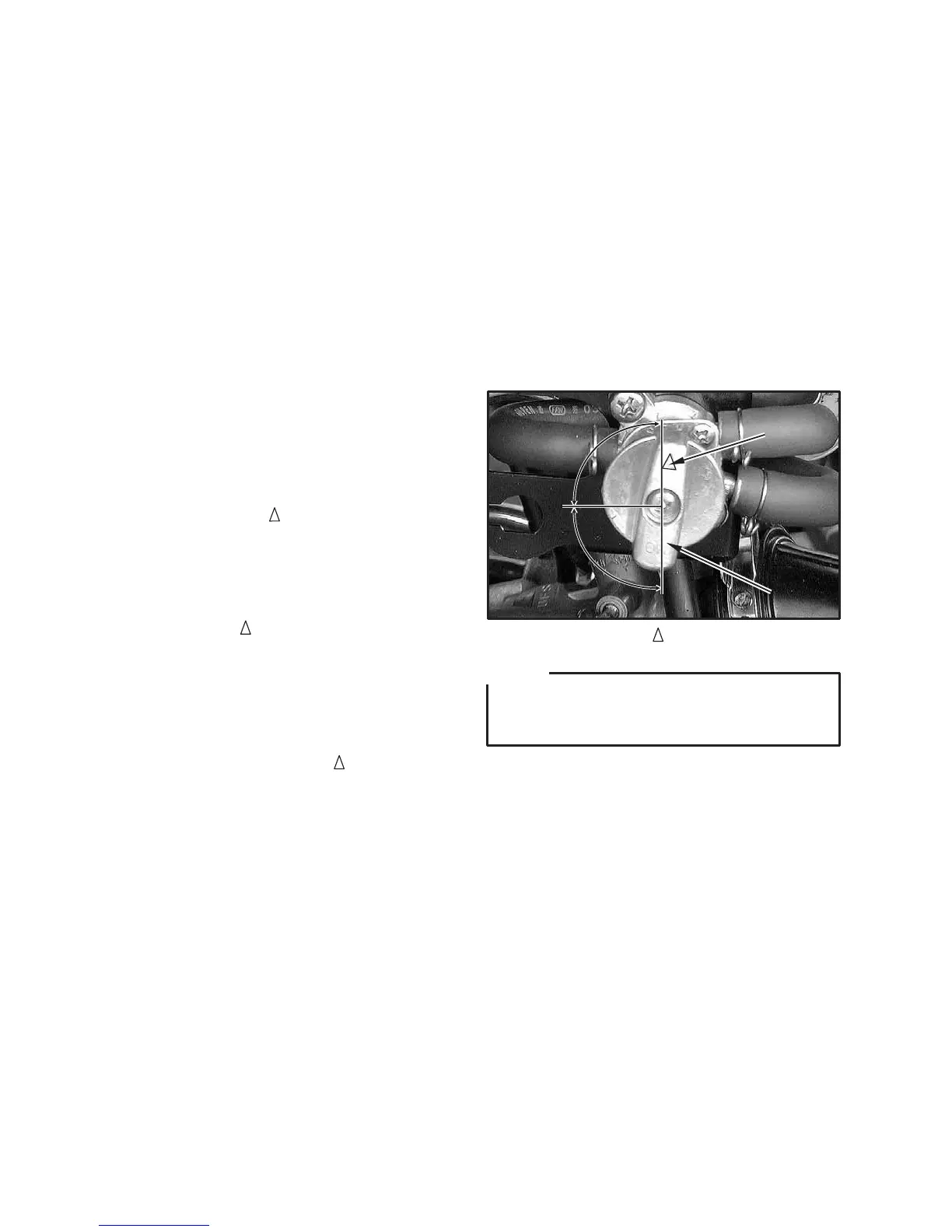

FUEL VALVE
The fuel valve supplies fuel from the fuel tank
to the carburetor.
The fuel valve has three positions.
OFF:
With the lever and " " mark in this position
fuel will not flow. Always turn the lever to this
position when the engine is not running.
ON:
RES:
With the lever in this position, fuel
flows to the carburetor. Normal riding is done
with the lever in this position.
This indicates reserve. If you run out of fuel
while riding, turn the lever to this
position. THEN FILL THE FUEL TANK AT
THE FIRST OPPORTUNITY. After refueling,
return the fuel valve lever to the "ON"
position.
""mark
""mark
NOTE:
After refueling, do not operate the ATV with
the fuel valve in the RES position. If you run
out of fuel, there will be no reserve supply.
(1) Fuel lever (2) " " mark
