98
(A)

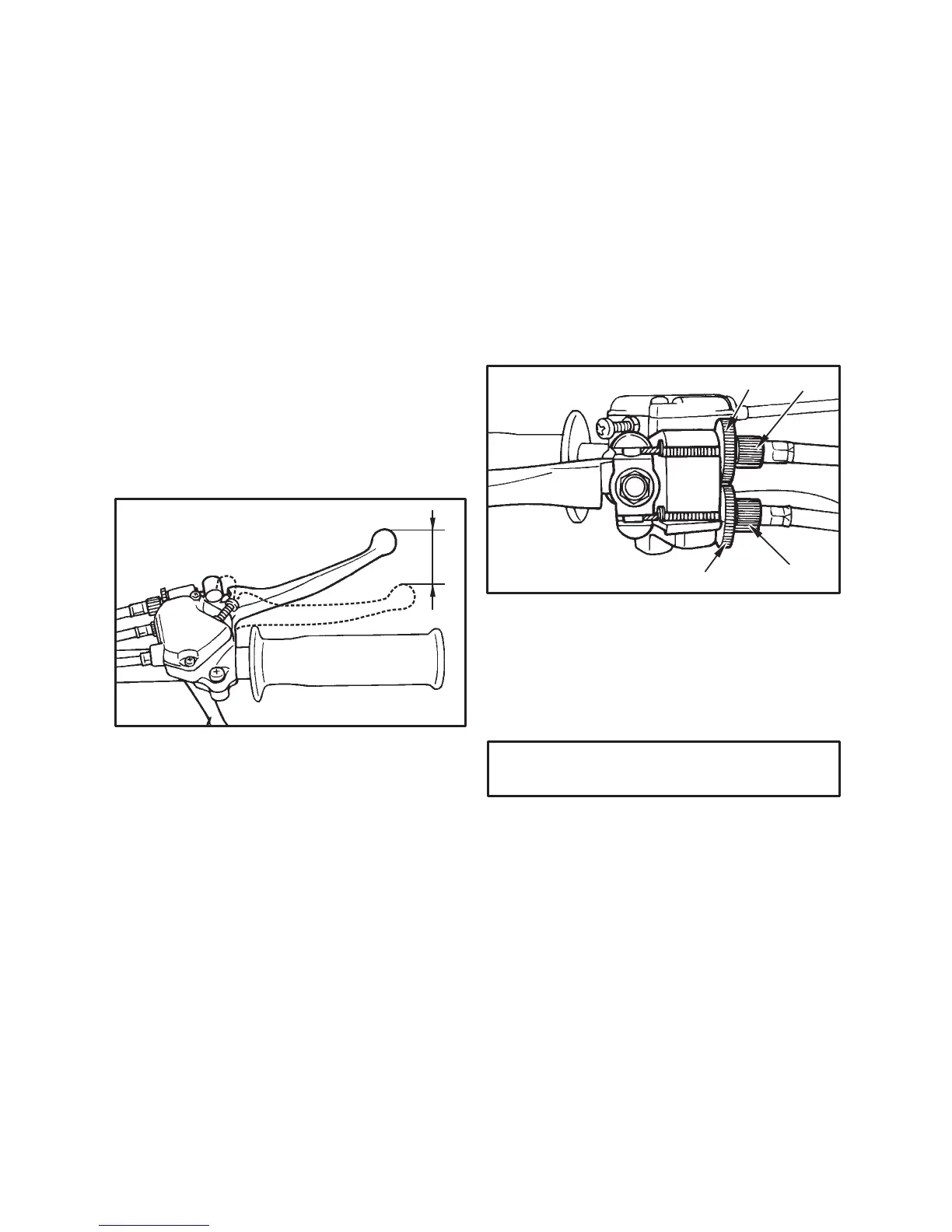

FRONT BRAKE LEVER FREE PLAY
ADJUSTMENT
The front brake lever free play should be
adjusted to 10~20 mm (0.4~0.8 in) at the
If the free play is incorrect,
adjust as follows:
tip
of the brake lever.
1. Loosen the upper locknut (1) and fully turn
in the upper adjusting bolt (2).
(A) Free play 10~20 mm (0.4~0.8 in)
(1) Upper locknut
(3) Lower locknut
(2) Upper adjusting bolt
(4) Lower adjusting bolt
(1)
(2)
(3)
(4)
2. Loosen the lower locknut (3).
3. Turn the lower adjusting bolt (4) until
specified free play is obtained.
4. Tighten the lower locknut.
Specified free play:
10~20 mm (0.4~0.8 in)
