(A)

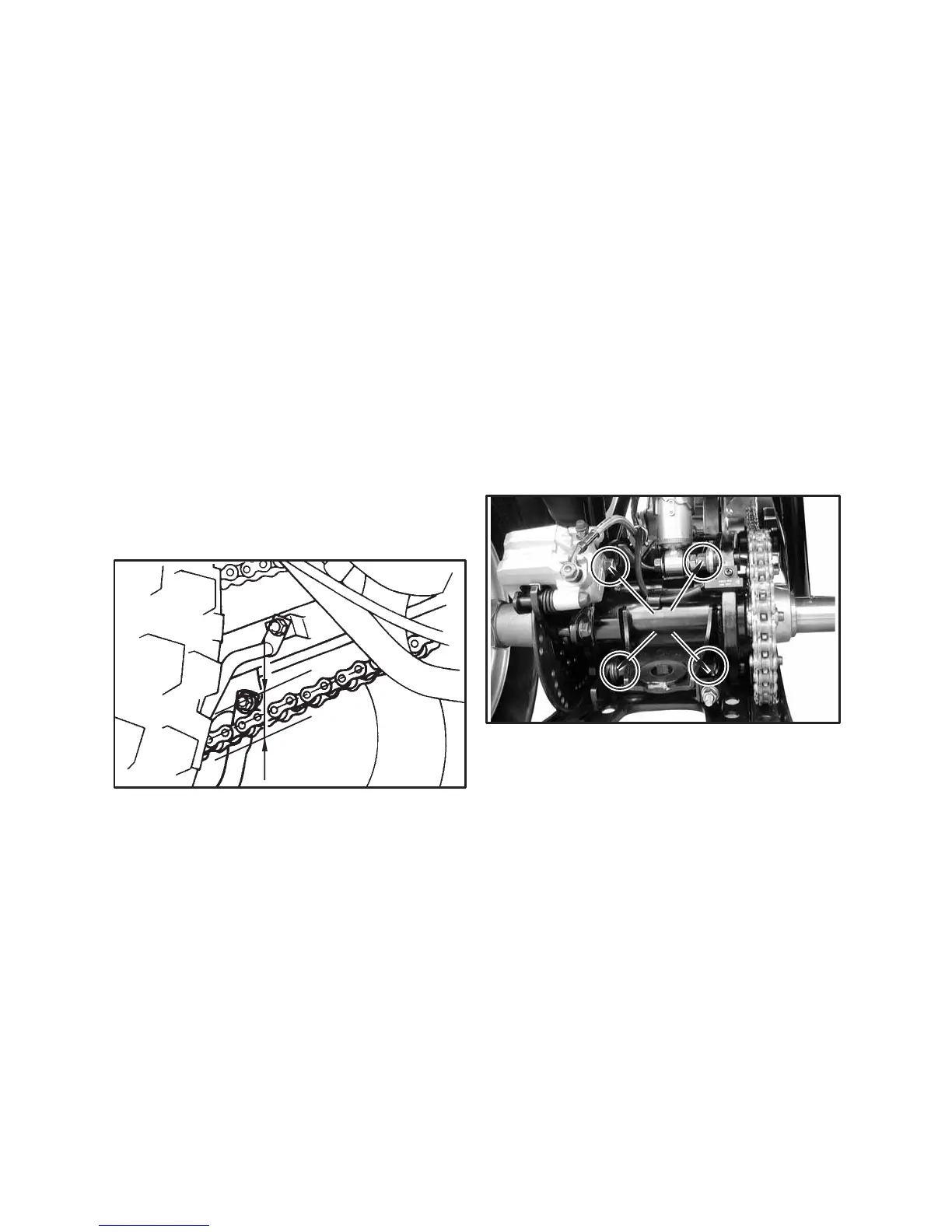

DRIVE CHAIN SLACK CHECK
Inspect the drive chain while all tires are
touching the ground. Check the slack at the
position shown in the figure. The normal
vertical deflection is approximately 10~20
mm (0.4~0.8in). If the deflection exceeds 20
mm (0.8 in), adjust the chain slack.
Drive chain slack adjustment
1.Loosen the upper and lower axle holding
bolts (1).
102
(A) 10~20 mm (0.4~0.8 in)
(1) Axle holding bolt x 4
(1)
