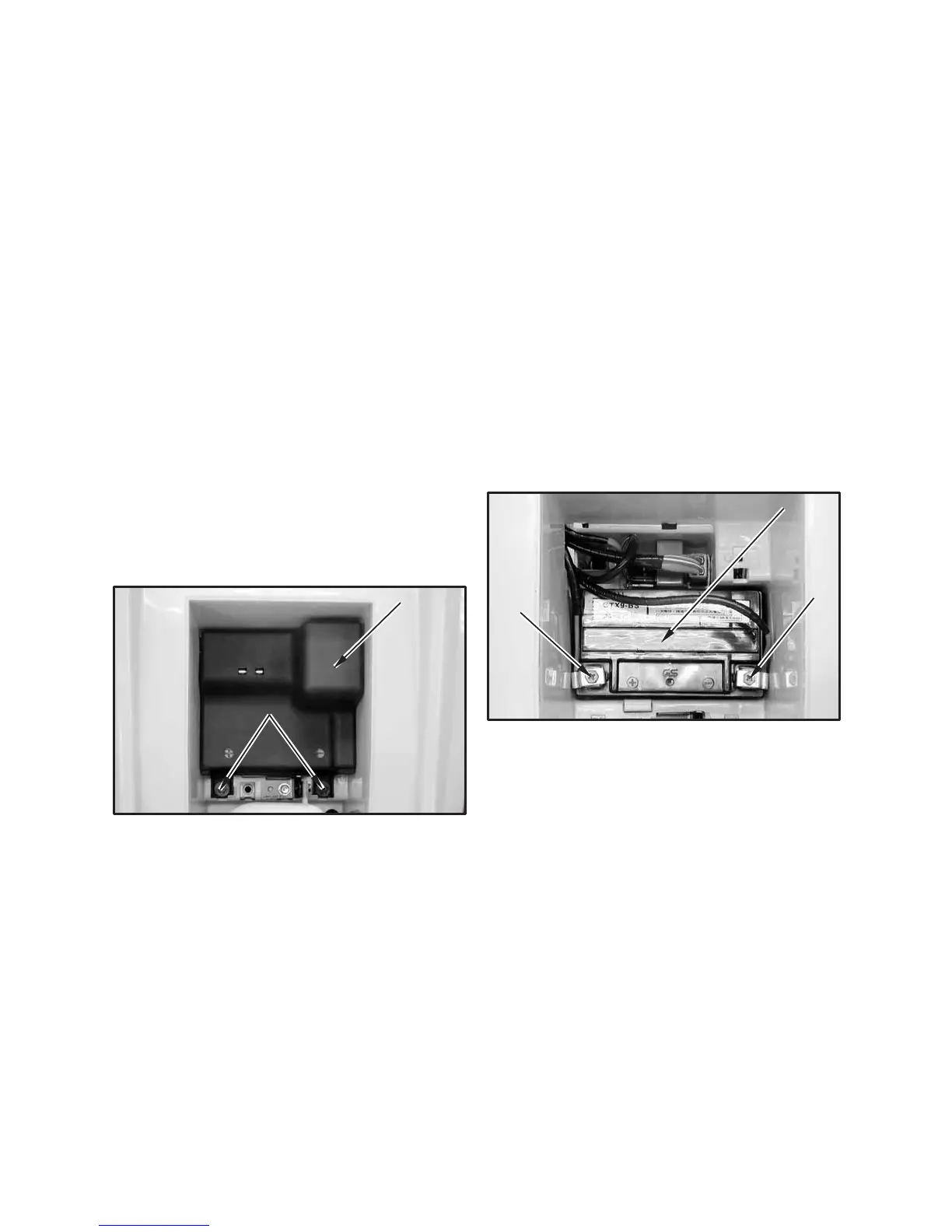

(1) Battery cover (2) Screws
Battery remove
1. Make sure the ignition switch is OFF.
2. Remove the seat (page 36)
3. Remove the battery cover (1), by removing the
mount screws (2).
4. Disconnect the negative (-) terminal lead (4)
from the battery first, then disconnect the
positive (+) terminal lead (5).
5. Remove the battery (3).
Battery installation
1. Install in the reverse order of removal.
2. Check all bolts and other fasteners are secure.
3. After installing the battery, check to see if the
battery cables are routed correctly.
(1)
(3)
(4)
(5)
(3) Battery
(4)
(5)
Negative (-) terminal lead
Positive (+) terminal lead
(2)
108
