KYMCO ZING 150 - Disassembly (Brake Master Cylinder); Inspection (Brake Master Cylinder)

13. HYDRAULIC BRAKE
13
-
6
Master Cylinder
Spring
Snap Ring Pliers
Main Piston
Snap Ring

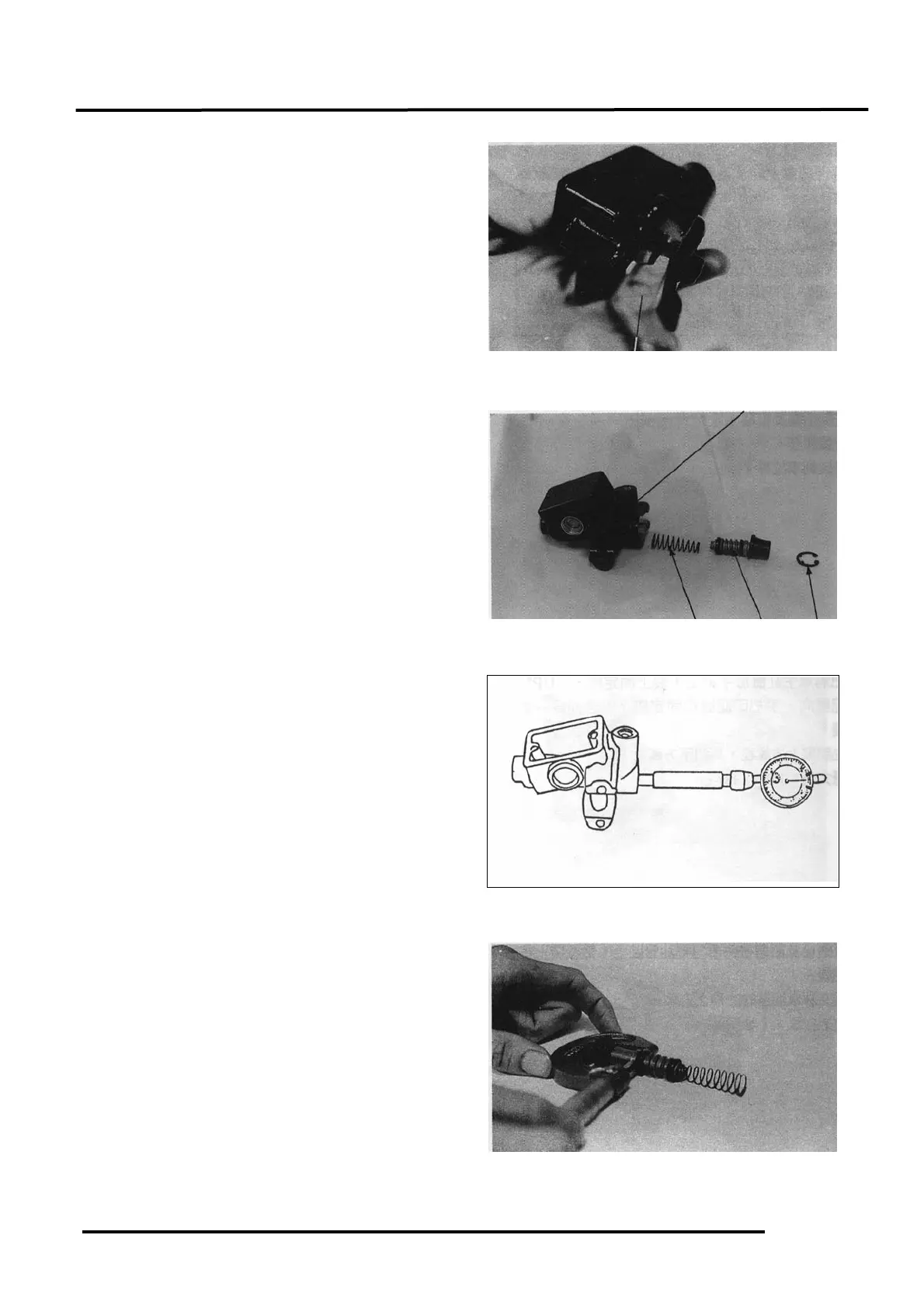

DISASSEMBLY
Remove the piston rubber cover and snap
ring from the brake master cylinder.
Remove the washer, main piston and spring
from the brake master cylinder.
Clean the inside of the master cylinder and
brake reservoir with brake fluid.
INSPECTION
Measure the brake master cylinder I.D.
Inspect the master cylinder for scratches or
cracks.
Service Limit: 12.75mm replace if below
Measure the brake master cylinder piston
O.D.
Service Limit: 12.64mm replace if below
