KYMCO ZING 150 - Carburetor Installation; Throttle Valve Assembly

4. FUEL SYSTEM
4
-
8

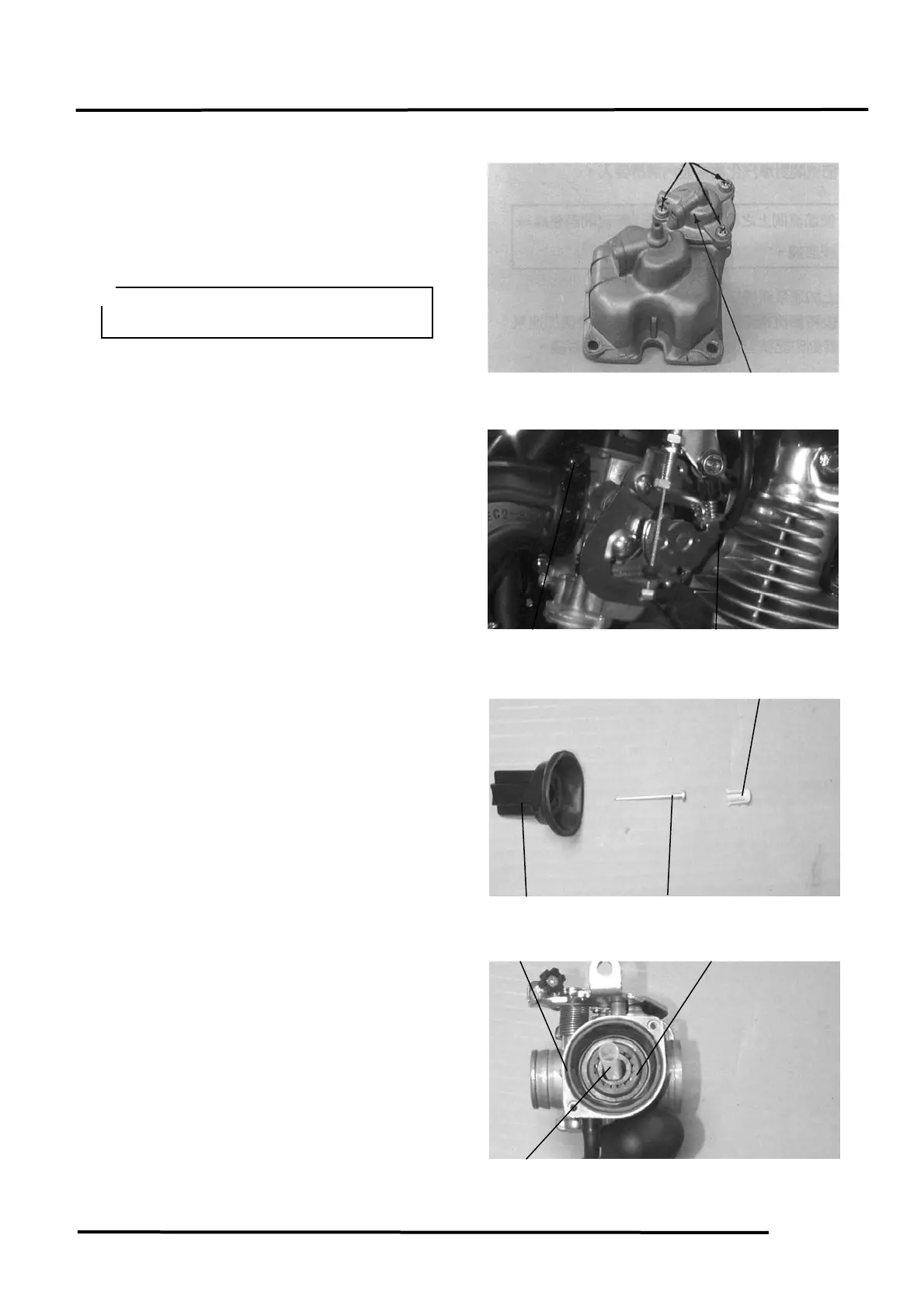

Accelerating Pump Installation
First install the accelerating pump
diaphragm.
Install the spring.
Install the accelerating pump cover and
tighten the three screws.
CARBURETOR INSTALLATION
Install the carburetor onto the intake
manifold and tighten the two lock nuts.
Torque: 0.8～1.2kg-m
Install the air cleaner connector and tighten
the band screw.
THROTTLE VALVE ASSEMBLY
Install the jet needle into the throttle valve
and secure with the needle retainer.
Assemble the rubber cover, carburetor cap
and throttle valve spring.
Connect the throttle cable to the throttle
valve.
Lock Nut
Jet Needle
Screws
Accelerating Pump Cover
Band Screw
Needle Retainer
Carburetor Cap
Spring
Throttle Valve
Throttle Valve
When installing the diaphragm, be sure
to position it correctly.
＊
＊＊
＊
