KYMCO ZING 150 - Carburetor Removal; Throttle Valve Disassembly

4. FUEL SYSTEM
4
-
3

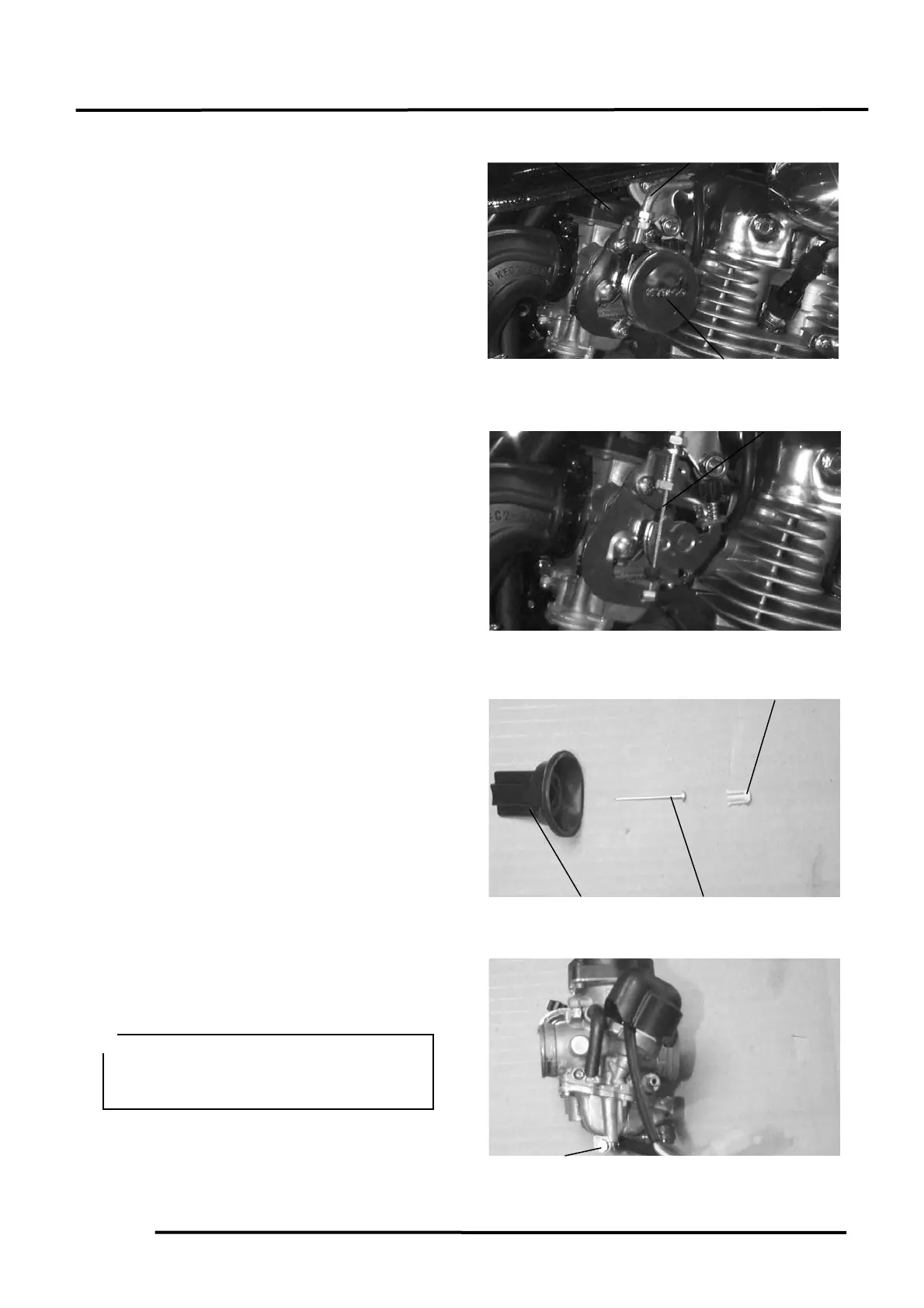

THROTTLE VALVE DISASSEMBLY
Remove the right side cover.
Remove the carburetor cap.
Pull out the throttle valve.
Disconnect the throttle valve and remove the
spring from the carburetor cap.
Pry off the needle retainer and remove the jet
needle.
Check the throttle valve and jet needle for
wear or damage.
CARBURETOR REMOVAL
Loosen the drain screw to drain the gasoline
from the float chamber.
Disconnect the fuel inlet tube and air cut-off
valve (A.C.V.) tubes.
Throttle Valve
Drain Screw
Carburetor Cap
Throttle Cable
Needle Retain
er
Jet Needle
Throttle Cable
•
Keep sparks and flames away from the
work area.
• Drain gasoline into a clean container.
＊
＊＊
＊
Right side cover
