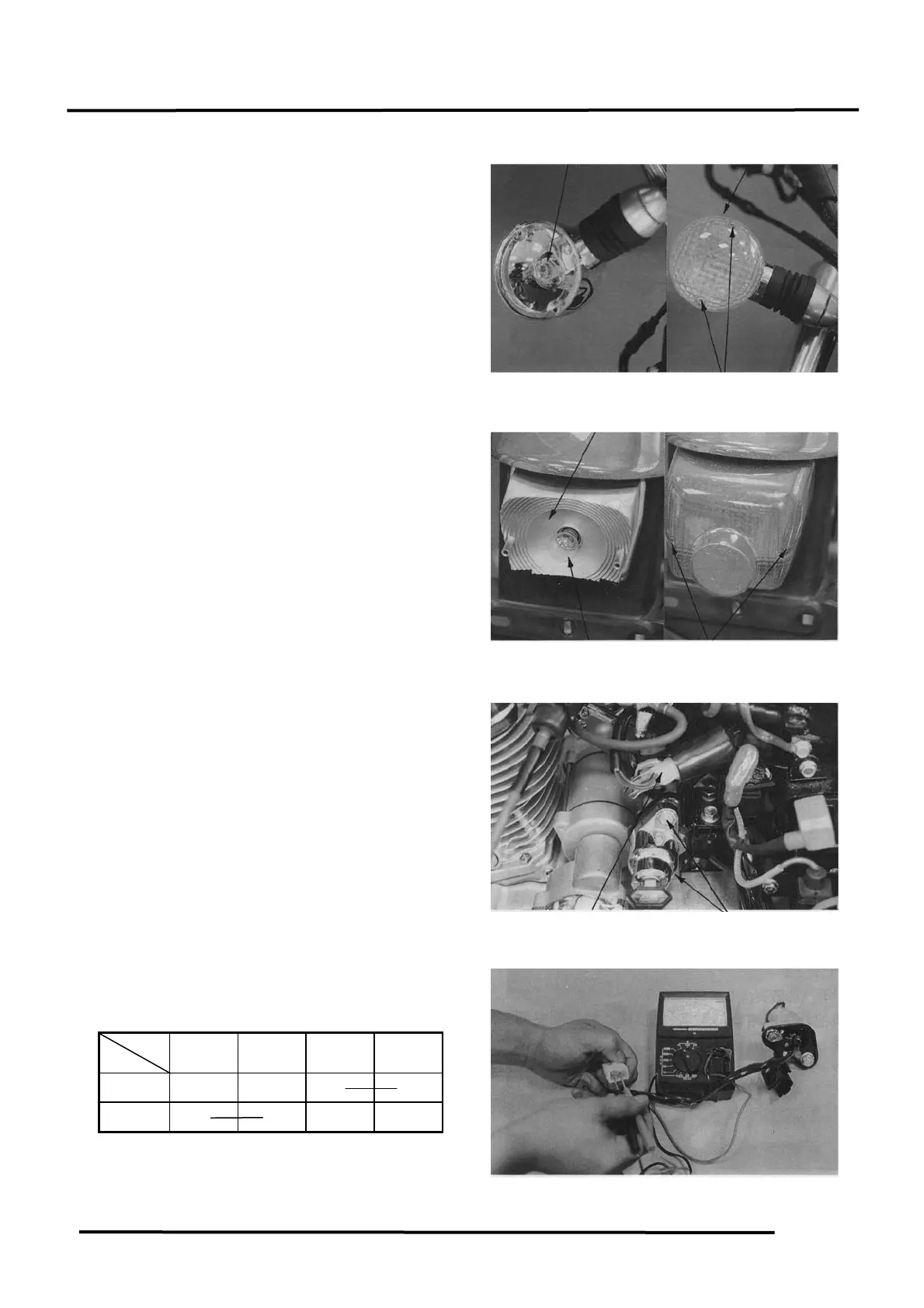

KYMCO ZING 150 - Ignition Switch Inspection

18. LIGHTS/INSTRUMENTS/SWITCHES/HORN
18
-
2
TURN SIGNAL LIGHT
Remove the two turn signal light shell
screws and the bulb.
Check the bulb for damage and replace with
a new one if necessary.
The installation sequence is the reverse of
removal.
STOP LIGHT/TAILLIGHT
Remove the two taillight shell screws and the
shell.
Remove the bulb and check the bulb for
damage. Replace with a new one if
necessary.
Bulb Specification: 12V.18/5W
IGNITION SWITCH
Disconnect the ignition switch wire coupler.
Remove the two bolts attaching the ignition
switch.
Remove the ignition switch.
INSPECTION
Check for continuity between the wires
indicated below.
Color
Position
Black Red
Black/
White
Green
OFF ○
○○
○ ○
○○
○
ON ○
○○
○ ○
○○
○
Bulb
Reflector
Bulb
Light Shell
Wire Coupler
Bolts
Scr
ews
Screws
