6. CYLINDER HEAD/VALVES
6
-
10

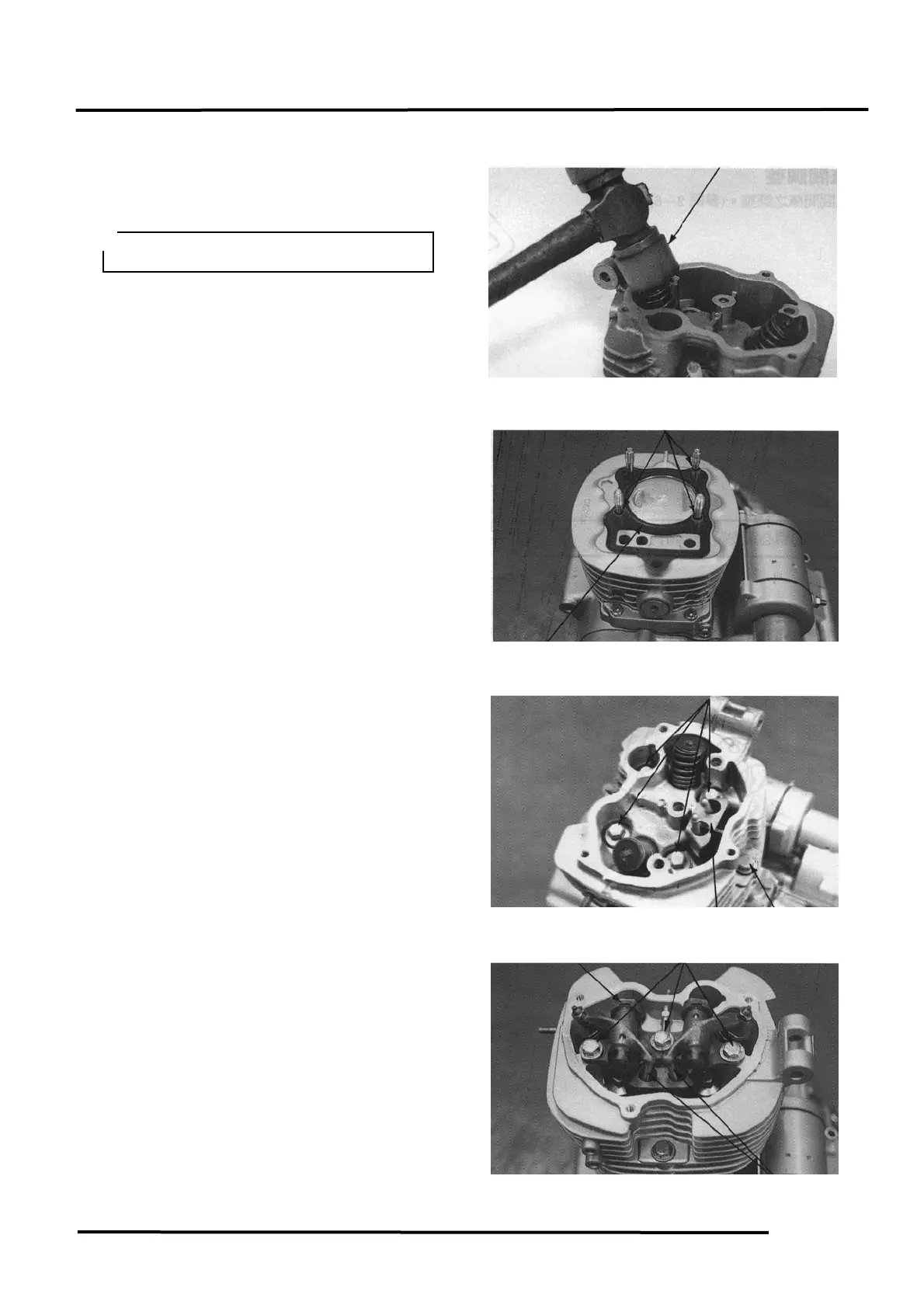

Tap the valve stems gently with a plastic
hammer for 2～3 times to firmly seat the
cotters.
CYLINDER HEAD INSTALLATION
Install the dowel pins and a new gasket onto
the cylinder.
Install the cylinder head.
Install the push bar guide plate and the four
cylinder head lock nuts.
Tighten the cylinder head lock nuts
diagonally.
Torque: 2.3～2.8kg-m
Install the cam follower shaft bolt, copper
washer and then tighten the bolt.
Torque: 1.8～2.3kg-m
Install the two push bars.
Install the rocker arm set, bolts and copper
washers.
Tighten the center bolt first and then tighten
the left and right bolts.
Torque: 1.5～2.0kg-m
Gasket
Plastic Hammer
Be careful not to damage the valves.
＊
＊＊
＊
Dowel Pins
Bolts
Push Bars
Rocker Arm Set
Cam Follower
Shaft Bolt
Cylinder Head Lock Nuts
Push Bar
Guide Plate
