KYMCO ZING 150 - Secondary Air Cleaner

19. EVAPORATIVE/EXHAUST EMISSION
CONTROL SYSTEM
19
-
17
SECONDARY AIR CLEANER

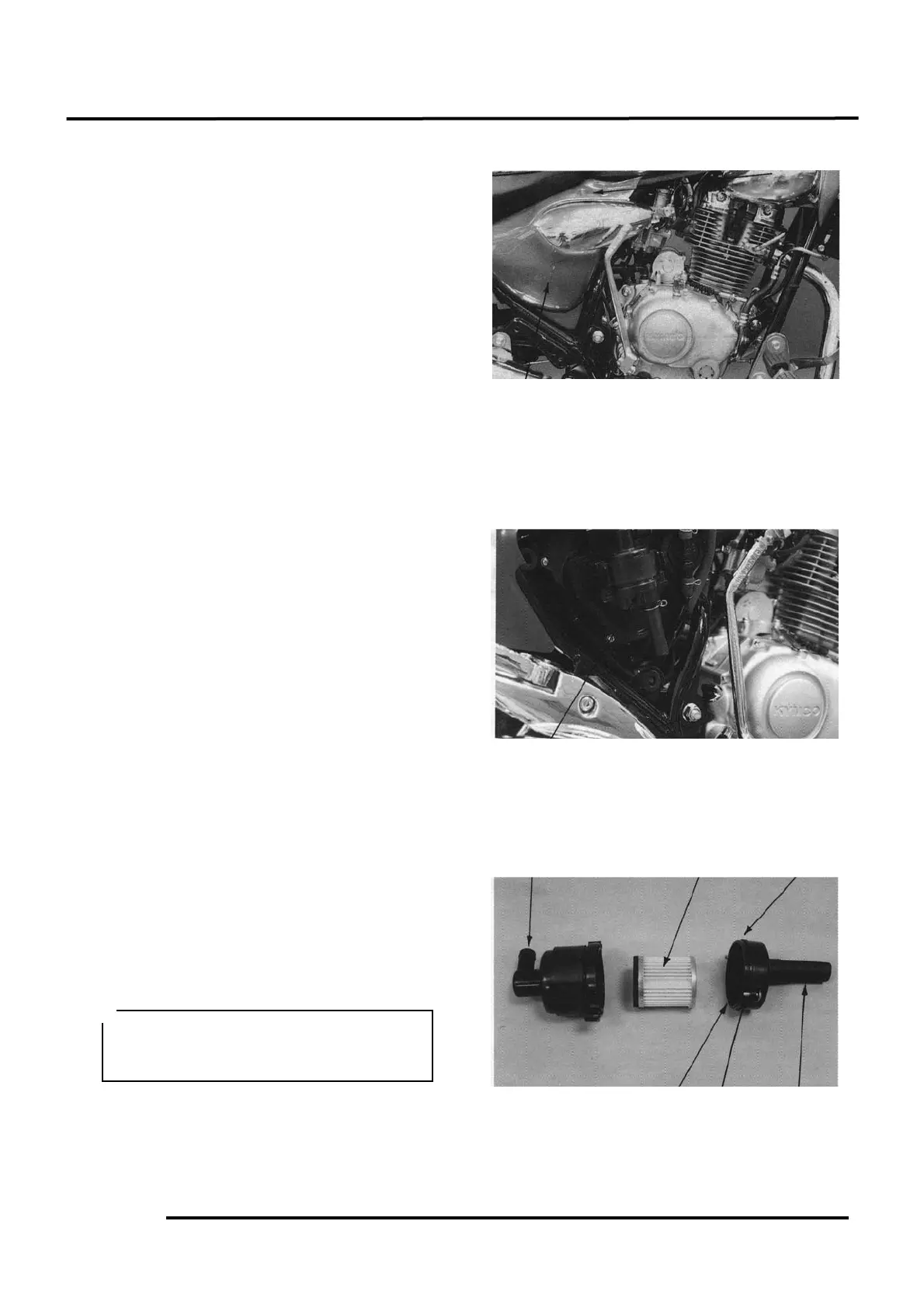

REMOVAL
1. Remove the right side cover and
disconnect the secondary air cleaner
connecting tube.
2. Remove the secondary air cleaner case.
DISASSEMBLY
1. Remove the two secondary air cleaner
cover screws and the air cleaner cover.
2. Remove the air cleaner element.
3. Inspect the air cleaner for dirt or clogging.
•
The secondary air cleaner must be
assembled and installed properly to
avoid dust entering the air cleaner.
＊
＊＊
＊
O
-
ring
Secondary Air Cleaner
Connecting Tube
Air Outlet Tube
Bolt
Screws
Air Inlet Tube
Right Side Cover
Element
Cover
