KYMCO ZING 150 - Starter Motor Assembly

17. STARTING SYSTEM
17
-
4
Check if the bearing in the rear cover turns
freely and has no excessive play.
Replace if necessary.

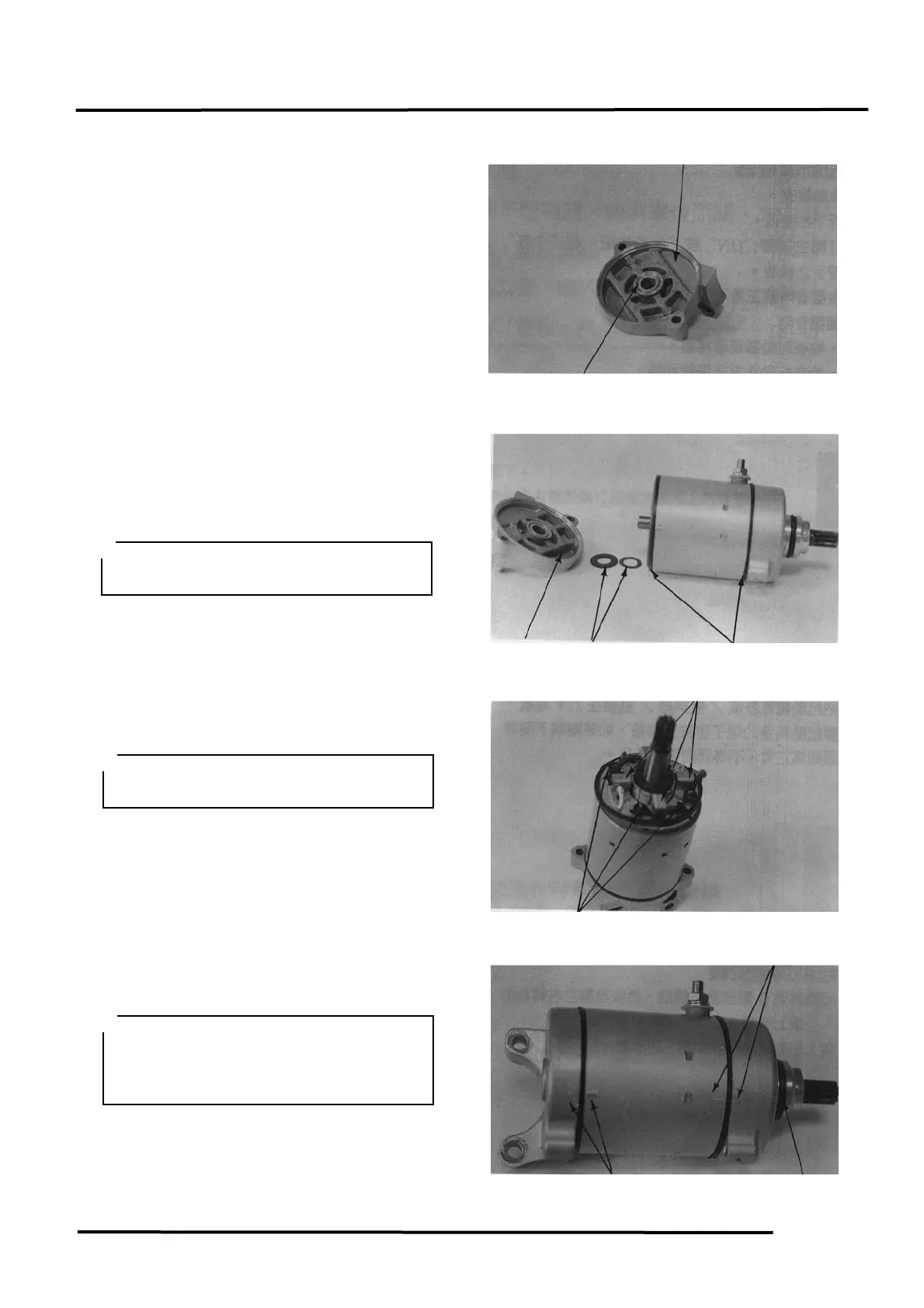

ASSEMBLY
First remove the brush springs and then
install the brushes onto the brush holders.
Insert the commutator into the starter motor
housing.
Apply a thin coat of grease to the rear cover
bearing and then install the washers and rear
cover.
Install the brush springs.
Apply a thin coat of grease to the front cover
oil seal and bearing.
Install the O-ring and front cover onto the
motor body.
Tighten the starter motor case bolts.
Torque: 0.8～1.2kg-m
After assembly, check the starter motor for
proper operation.
•
Be careful not to damage the brush and
commutator contacting surfaces.
＊
＊＊
＊
•
Be careful not to damage the oil seal.
• After the front and rear covers are
installed, the punch marks must be
aligned with each other.
＊
＊＊
＊
Rear Cover
Brushes
Washers
Bearing
O
-
rings
Rear Cover
•
Make sure that the brushes move freely
after installation.
＊
＊＊
＊
Springs
Punch Marks
Punch Marks
O
-
ring
