Troubleshooting > Clearing Paper Jams

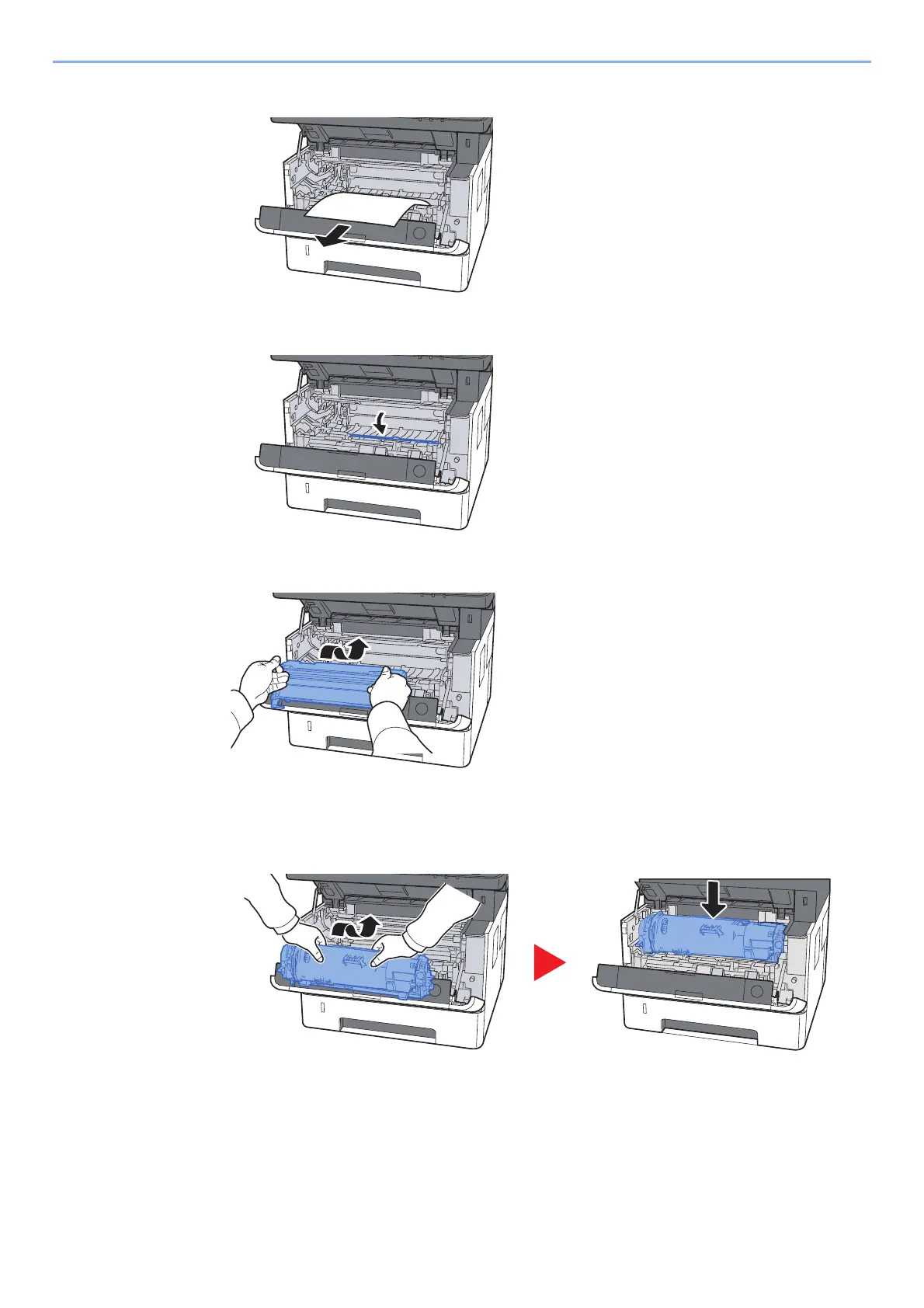

Remove any jammed paper.

Push Feed Cover back in.

Return the drum unit to the original position.

Return the developer unit together with the toner container to

its position, aligning the guides at both ends with the slots in

the machine.
