Using the Operation Panel

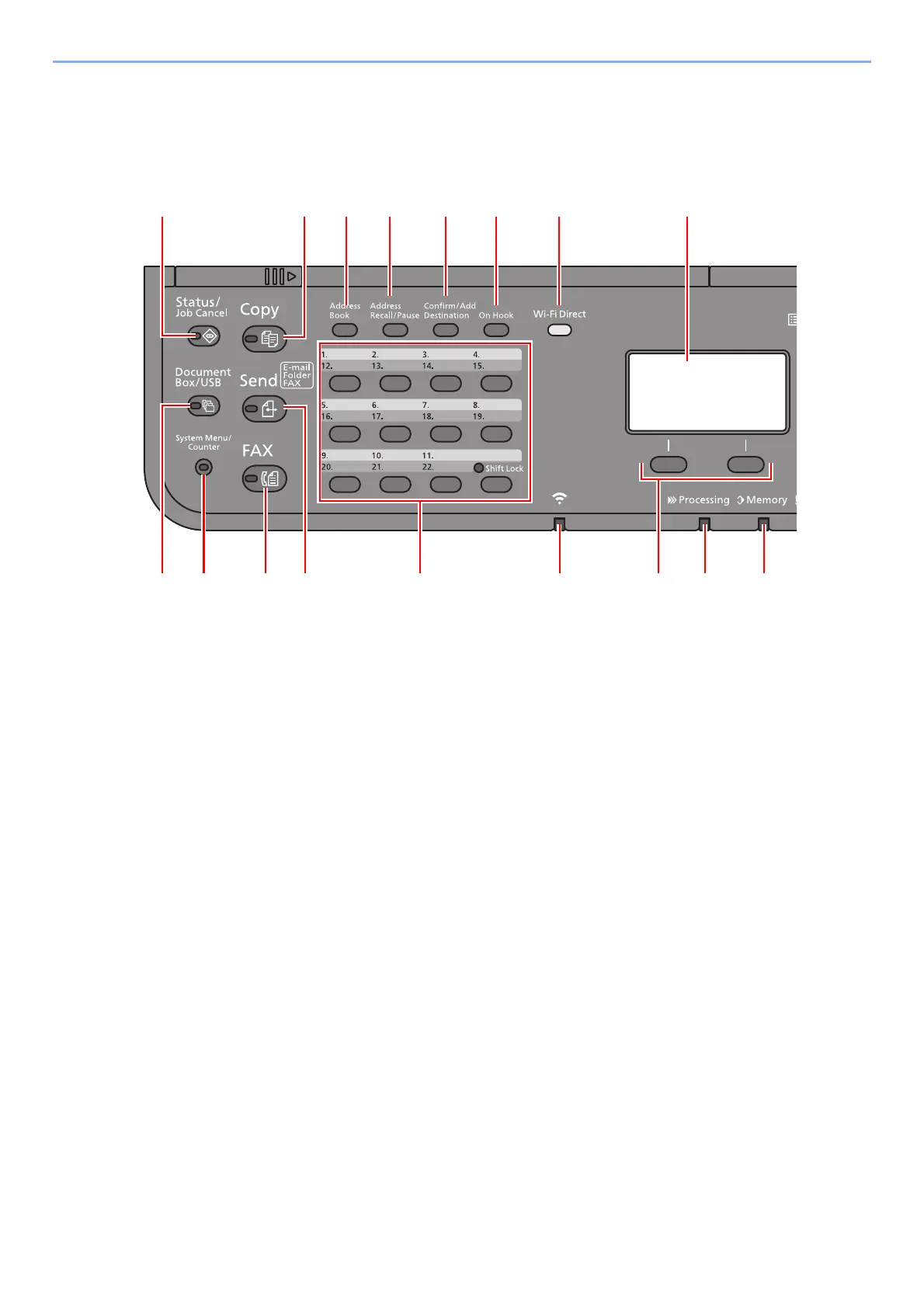

Operation Panel Keys
1[Status/Job Cancel] key: Displays the Status/Job Cancel screen.
2[Document Box/USB] key: Displays the Document Box/USB screen.
3[System Menu/Counter] key: Displays the System Menu/Counter screen.
4[FAX] key
*1
: Displays the FAX screen.
5[Send] key: Displays the screen for sending. You can change it to display the Address Book screen.
6 One Touch keys: Recalls the destination registered for One Touch Keys.
7[Wi-Fi] indicator
*
2
: Blinks during Wi-Fi connection.
8 Select keys: Selects the menu displayed at the bottom of the message display.
9[Processing] indicator: Blinks while printing or sending/receiving.
10 [Memory] indicator: Blinks while the machine is accessing the machine memory or fax memory.
11 Message display: Displays the setting menu, machine status, and error messages.
12 [Wi-Fi Direct] key
*2
: Set Wi-Fi Direct, and show information necessary for connection and the connection status.
13 [On Hook] key
*1
: Switches between on-hook and off-hook when manually sending a FAX.
14 [Confirm/Add Destination] key: Confirms the destination or adds a destination.
15 [Address Recall/Pause] key
*3
: Calls the previous destination. Also used to enter a pause when entering a FAX
number.
16 [Address Book] key: Displays the Address Book screen.
17 [Copy] key: Displays the Copy screen.
*1 Only on products with the fax function installed.
*2 Please note that the Wi-Fi and Wi-Fi Direct listed in this manual can not be used with this machine.
*3 The products without the fax function have the [Address Recall] key instead of the [Address Recall/Pause] key.
