Kyocera ECOSYS MA4000cix

To Next Page

To Previous Page

Installing and Setting up the Machine > Part Names (Machine Exterior)

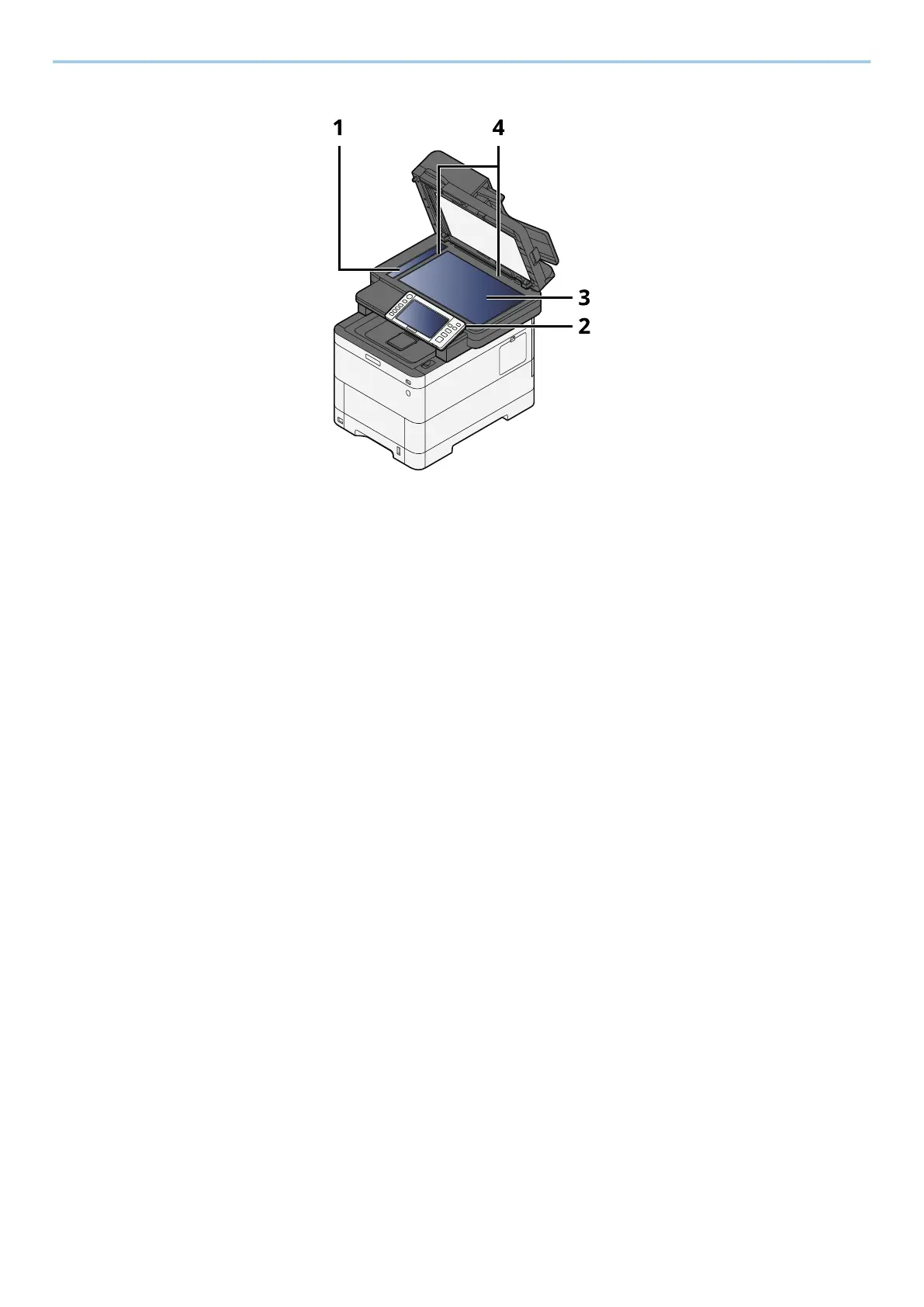

1 Slit glass

2 Operation panel

3 Platen

4 Original size indicator plate
