Installing and Setting up the Machine > Part Names (Connectors/Interior)

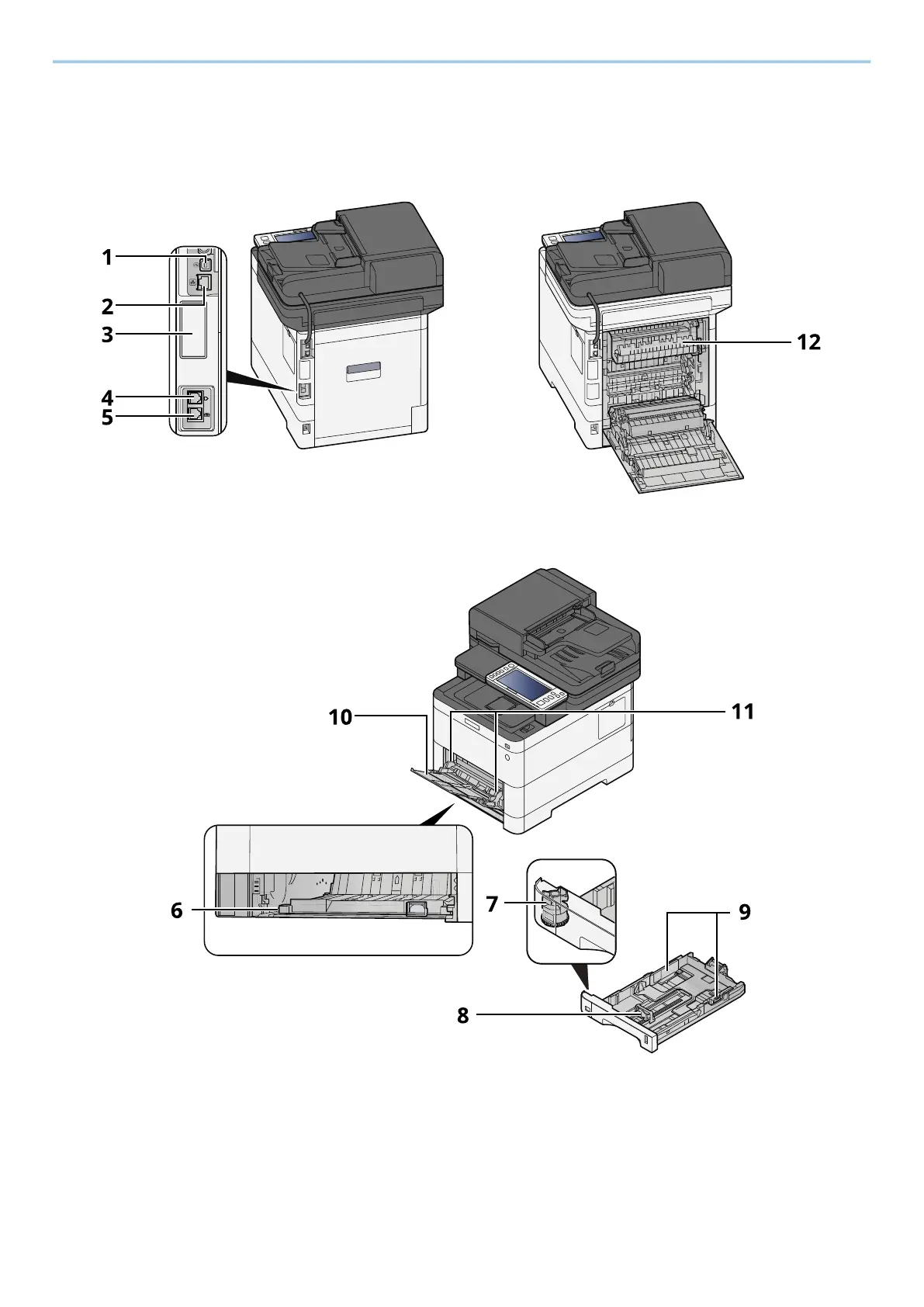

Part Names (Connectors/Interior)

1 USB interface connector

2 Network interface connector

3 Optional interface slot

4 LINE connector

5 TEL connector
