2LY/2LZ

2-1-12

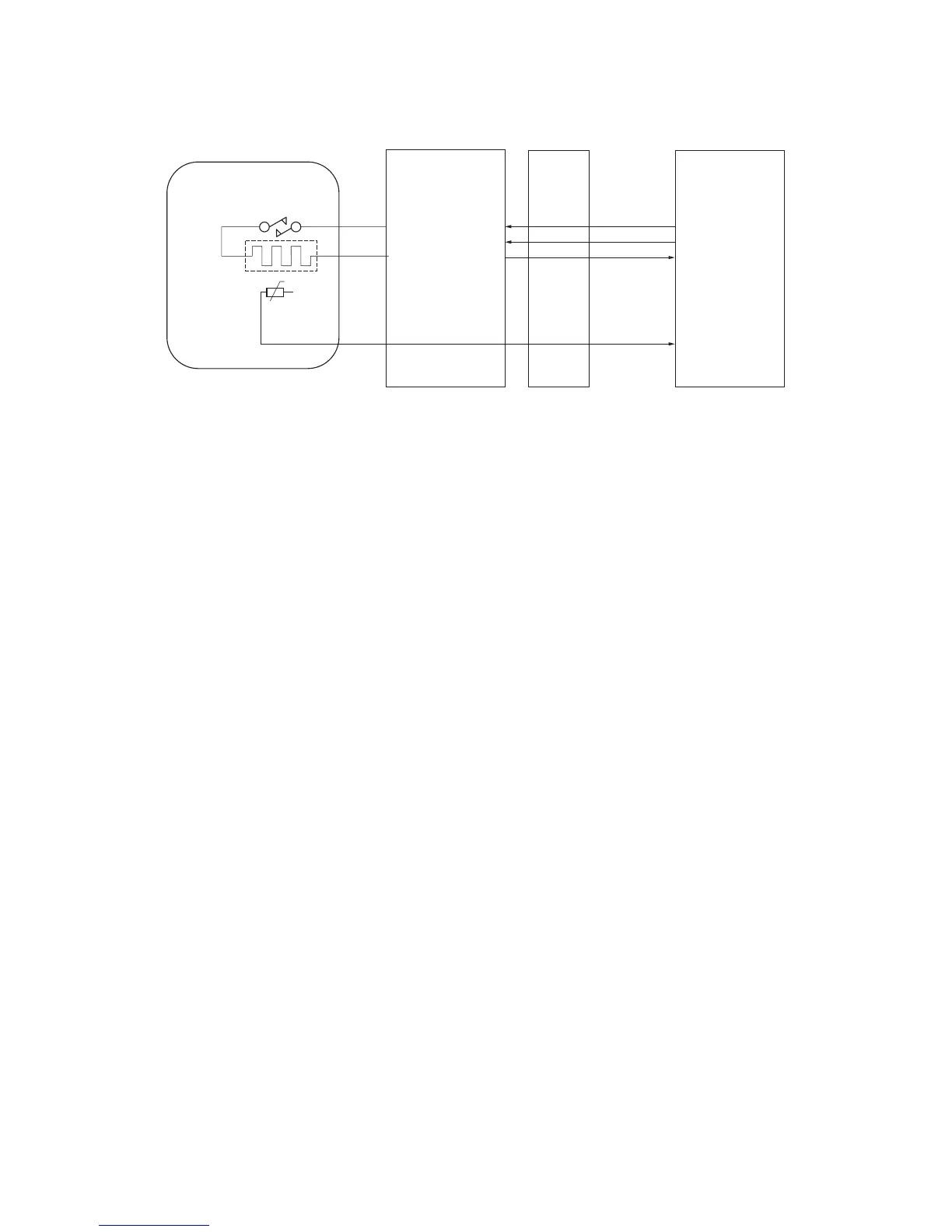

Figure 2-1-19 Fuser section block diagram

THERM

HEATN

SLEEP

ZCROSS

YC102-1

YC102-3

YC103-6

YC103-7

YC103-8

YC311-5

YC311-6

YC311-3

YC311-16

Fuser unit

Fuser

thermistor

Fuser

heater

lamp

Fuser thermal cutout

Power

source PWB

Control PWB

High

voltage

PWB
