Kyocera FS-1320D - Paper Feed Section; Detaching and Refitting the Paper Feed Assembly (Paper Feed Roller and Pickup Roller)

2LY/2LZ
1-5-6
1-5-3 Paper feed section
(1) Detaching and refitting the paper feed assembly (paper feed roller and pickup roller)
Procedure
1. Remove the cassette.

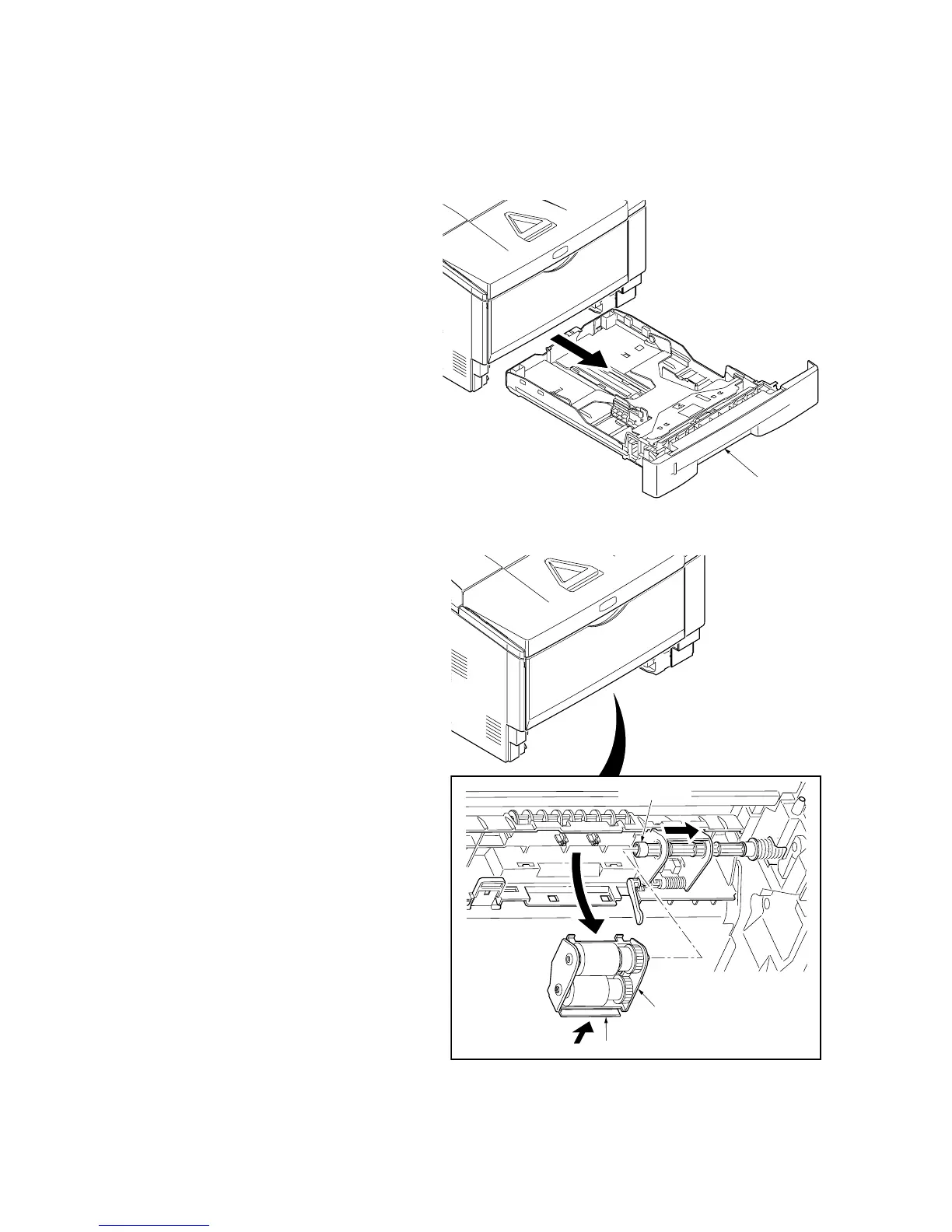

Figure 1-5-7
2. Slide the feed shaft.
3. While pressing the lever and then remove
the paper feed roller assembly.
Figure 1-5-8
Cassette
Paper feed roller
assembly
Lever
Feed shaft
