2LY/2LZ
1-2-4
1-2-3 Installing the expanded memory (option)
Procedure
1. Turn off printer power switch.
Caution: Do not insert or remove expanded
memory while printer power is on.
Doing so may cause damage to the printer
and the expanded memory.

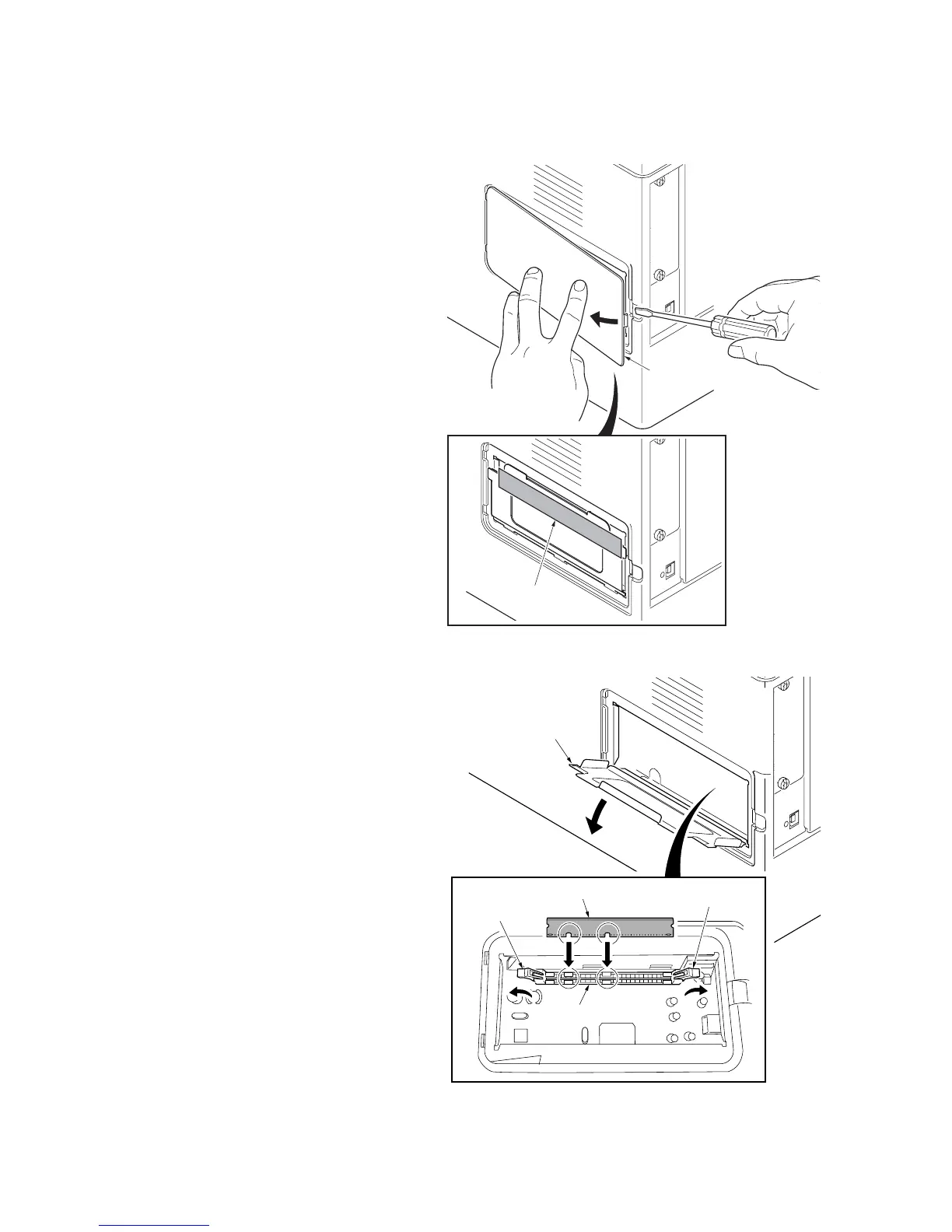

2. Remove the right side cover.
3. Remove the tape.
Figure 1-2-4
4. Open the memory slot cover.
5. Open clamps on both ends of the memory
socket on the control PWB.
6. Insert the expanded memory into the mem-
ory socket so that the notches on the mem-
ory align with the corresponding protrusions
in the slot.
The memory module is secured to the mem-
ory socket with the clamps.
7. Close the memory slot cover.
8. Refit the right side cover.
9. Print a status page to check the memory
expansion (See page P.1-3-2).
If memory expansion has been properly per-
formed, information on the installed memory
is printed with the total memory capacity has
been increased. Standard memory capacity
32 MB.
Figure 1-2-5
Right side cover
Tap e
Memory slot cover
Expanded memory
Clamp
Clamp
Memory socket
To Next Page
