2LY/2LZ

1-5-19

1-5-8 PWBs

(1) Detaching and refitting the control PWB

Procedure

1. Remove the right cover (See page 1-5-4).

2. Remove fourteen connectors form the con-

trol PWB.

3. Release the wires from the wire clamps.

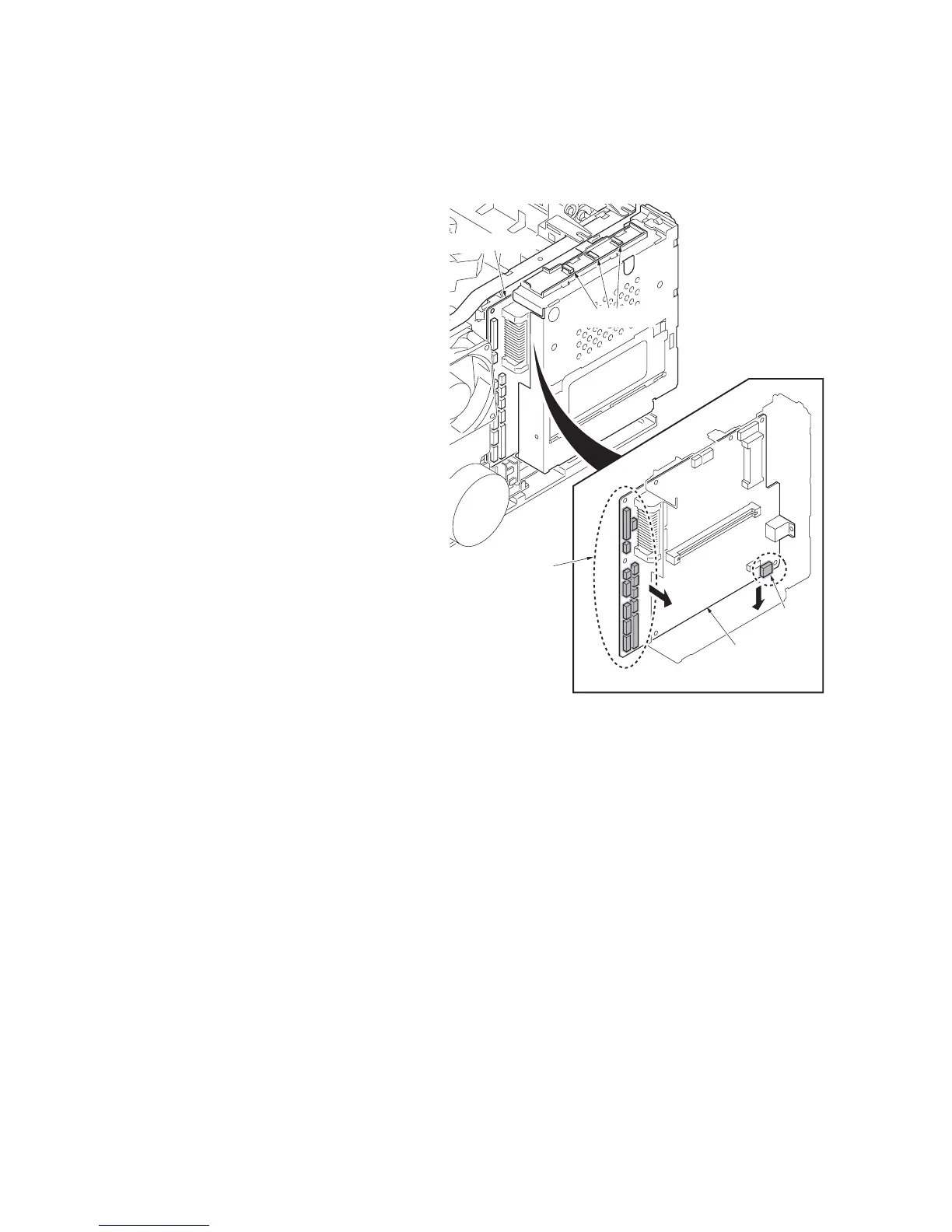

Figure 1-5-27

Connectors

(Thirteen)

Connector

Control PWB

Wire clamps
