Kyocera FS-1320D User Manual

2LY/2LZ
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper
feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed paper to the transfer/
separation section.
(1) Cassette paper feed section

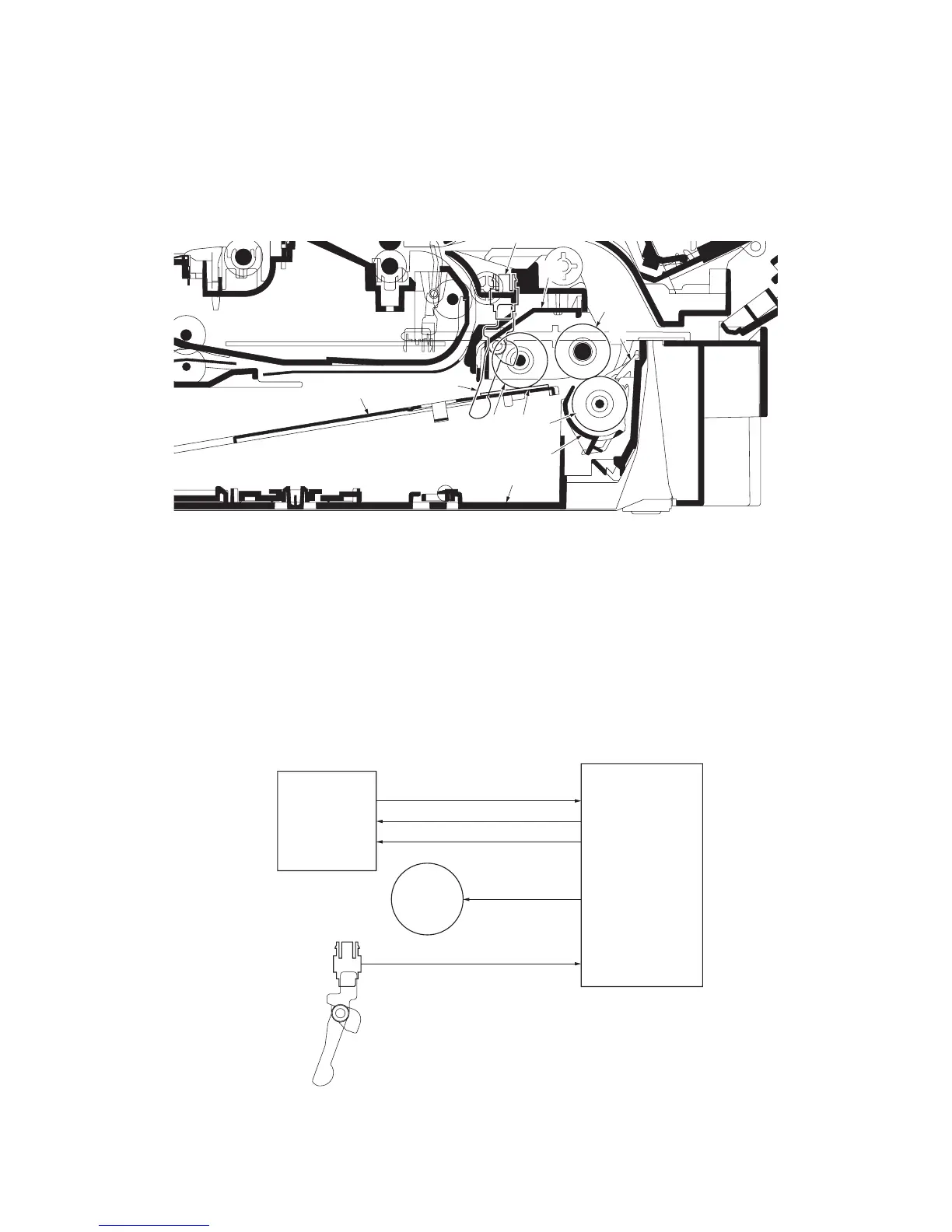

Figure 2-1-1 Cassette paper feed section
Figure 2-1-2Cassette paper feed section block diagram
1
9
7
3
4
5
2
6
8
10
11
(1) Pickup roller
(2) Paper feed roller
(3) Feed holder
(4) Retard roller
(5) Retard holder
(6) Retard guide
(7) Bottom plate
(8) Bottom pad
(9) Cassette base
(10) Paper sensor
(11) Actuator (paper sensor)
FEDDRN
MMOTRDYN
YC306-3
Paper sensor
Paper feed
Clutch
Main motor
Control PWB
PAPER
MOTCLK
REMOTEN
YC308-4
YC305-3
YC305-4
YC305-5

Kyocera FS-1320D Specifications

General

Print Technology	Laser
Paper Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Warm-up Time	15 seconds or less
Multi-purpose Tray Capacity	50 sheets
Print Speed	20 ppm
Resolution	1200 dpi
Paper Size (Main Tray)	A4, Letter, Legal
Print Media Sizes (Non-standard)	70 x 148 mm to 216 x 356 mm
