Kyocera FS-9120DN User Manual

Chapter 3 Using the Operator Panel
3-44
•>Cassette 3 Type or >Cassette 4 Type ap-
pears when an option paper feeder (PF-70) is in-
stalled.
•>Cassette 3 Type appears when an option pa-
per feeder (PF-75) is installed.
Press the ENTER key. A blinking question mark (?)
appears.
Press the  or  key to display the desired cassette
type. The display changes as shown below.
Plain
Preprinted
Bond
Recycled
Rough
Letterhead
Color
Prepunched
Thick
High quality
Custom(1 to 8)
When the desired cassette type is displayed, press
the ENTER key.
Press the MENU key. The message display returns to
Ready.
Selecting the Paper Source
You can select from which paper source printing will be per-
formed. If no option units are installed, the only selections
are the paper cassette and MP tray of the printer. If option
paper feeders are installed, they can also be selected.
Press the MENU key.
Press the  or  key repeatedly until Paper
Handling > appears.
Press the  key.
Press the  or  key repeatedly until >Feed
Select appears.
Press the ENTER key. A blinking question mark (?)
appears.
Press the  or  key to display the desired paper
source. The display changes as shown below accord-
ing to the installed option units.
Cassette1
(Printer’s standard upper cassette when
option paper feeders are installed)
Cassette2 (Printer’s standard lower paper cassette)
MP tray (printer’s MP tray)
Cassette3 (Option upper paper feeder)
Cassette4 (Option lower paper feeder)
When the desired paper source displayed, press the
ENTER key.
Press the MENU key. The message display returns to
Ready.
Setting Duplex Printing
Using the duplex unit, you can automatically print on both
sides of the paper. The duplex unit is installed underneath
the printer.

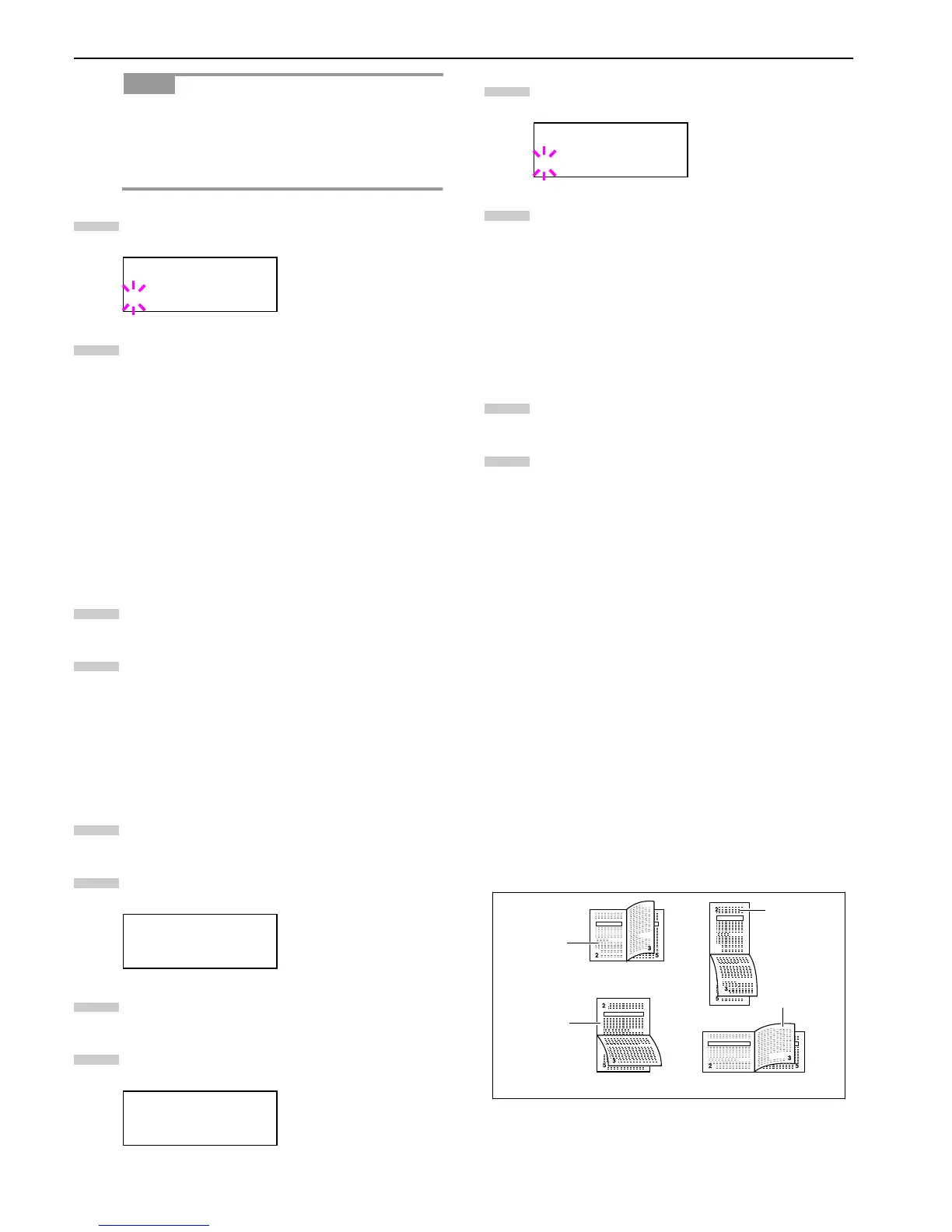

Binding Setups
The term binding refers to the manner in which printed pag-
es of paper are joined together (by gluing, stitching, etc.) in
book form. The two possible types of binding are long-edge
binding, in which pages are joined together along their long
edge; and short-edge binding, in which they are joined to-
gether along their short edge. In selecting a binding type,
you must also consider the orientation of the printed page.
You can use long-edge or short-edge binding with either
landscape or portrait printing.
Depending on the binding type and print orientation, the du-
plex unit provides four types of binding setups. These are: (1)
portrait, long-edge, (2) portrait, short edge, (3) landscape,
long-edge, and (4) landscape, short-edge. The figure below
shows these binding setups.
Figure 3-20
To select duplex printing and binding setup from the opera-
tor panel, proceed as follows.
NOTE
>Cassette 1 Type
? Plain
Paper Handling >
>Feed Select
Cassette1
5
6
7
8
1
2
3
4
>Feed Select
? Cassette1
5
6
7
8
Binding Setups
(1)
(2)
(4)
(3)
Portrait,
short-edge
Landscape,
short-edge
Portrait,
long-edge
Landscape,
long-edge

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
