2GN/2GP/2GR-6
1-4-1
1-4 Troubleshoo ting
1-4-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the machine immediately stops copying and displays the jam location on the operation
panel.
Paper misfeed counts sorted by the detection condition can be checked in maintenance item U903.
To remove paper jammed in the machine, open the front cover, left cover or pull the cassette out.
To remove original jammed in the optional DP, open the document processor top cover or document processor reverse
unit.
To remove the jammed paper in optional document finisher, detach the finisher from the machine.
Paper misfeed detection can be reset by opening and closing the respective covers to turn safety switch off and on.

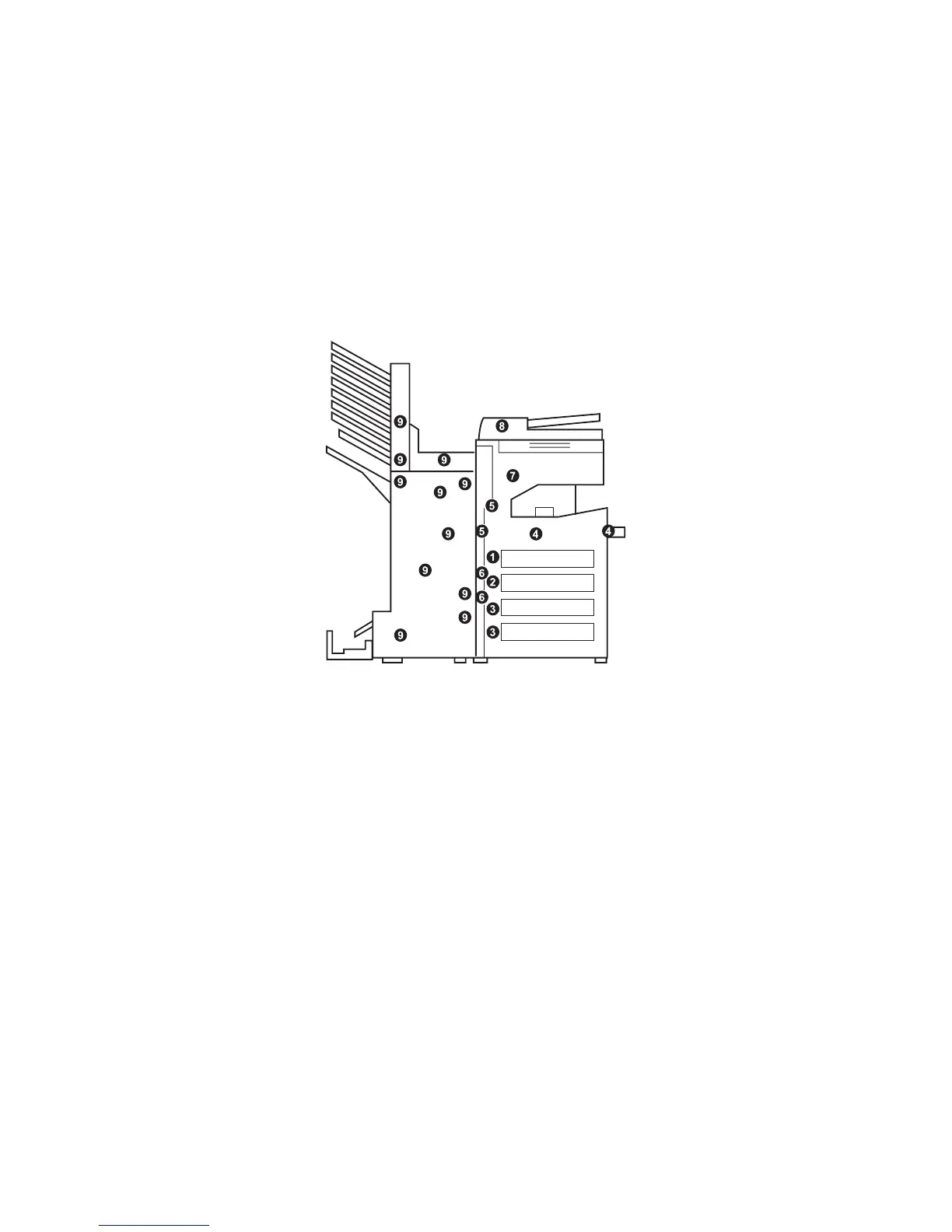

Figure 1-4-1
(1) Misfeed in cassette 1
(2) Misfeed in cassette 2
(3) Misfeed in optional cassette 3 or 4
(4) Misfeed in MP tray
(5) Misfeed in duplex unit or left cover 1
(6) Misfeed in left cover 2 or 3
(7) Misfeed in optional job separatior
(8) Misfeed in optional DP
(9) Misfeed in optional document finisher
