Kyocera Taskalfa Pro 15000c - Heater (Optional); Cassette 1 and 2

4-4
Installing the optional parts > Heater (Optional)
[CONFIDENTIAL]
4 - 2 Heater (Optional)
(1) Cassette 1 and 2

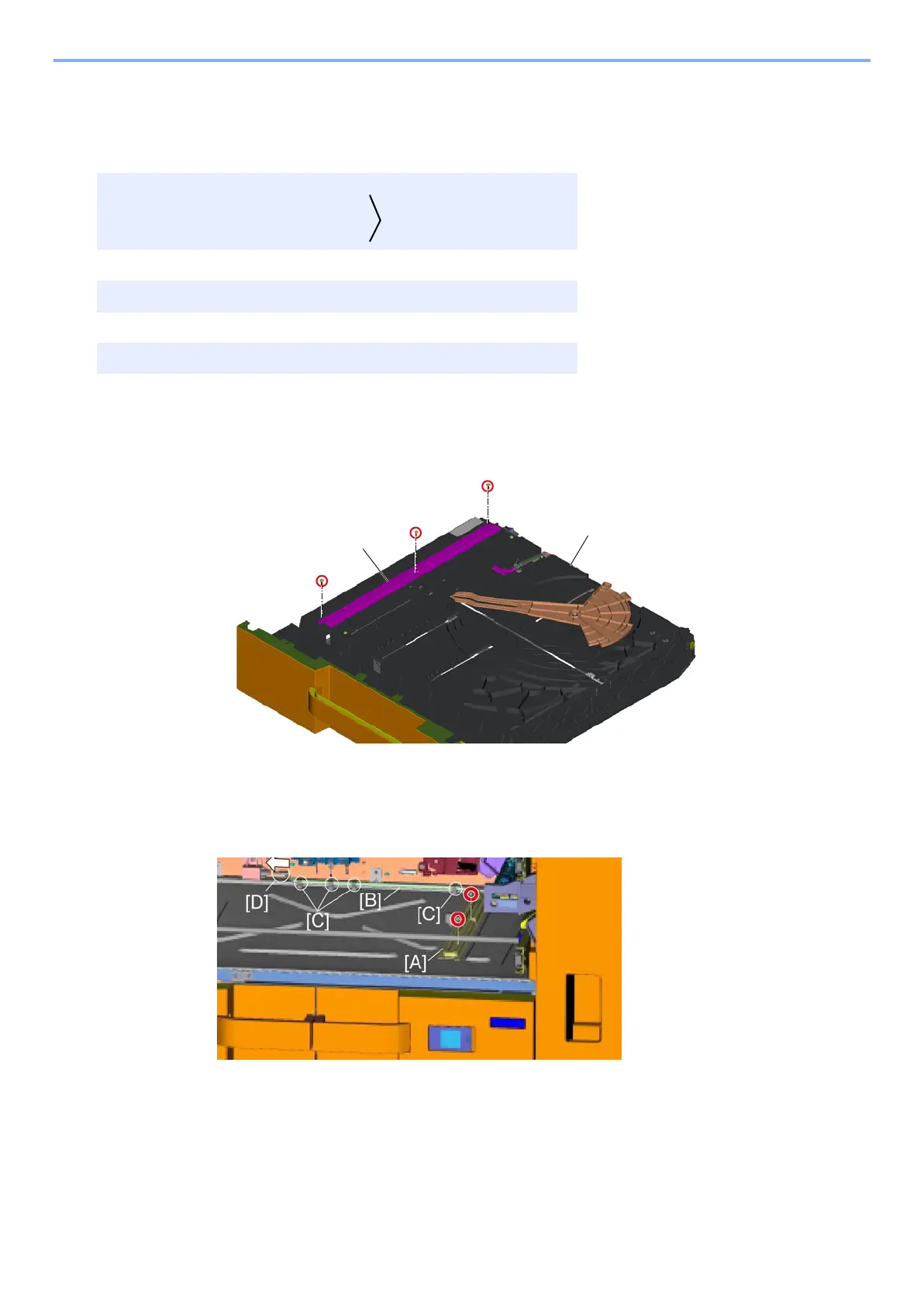

Cassette heater installation requires the following parts.
Bundle parts in Heater assy
1
Pull and take out cassette 1 and 2.
2
Up side down cassette 2 [A] and attach the cassette support plate [B]. (Screw x3)
3
Attach the heater [A] to cassette base. (Screw x2)
4
Connect the connector [D] to the main unit.
5
Fix the wire [B] with 4 wire saddles [C].
HEATER 100 ASSY (302TJ8099*)
HEATER 120 ASSY (302TJ80A2*)
HEATER 240 ASSY (302TJ80A1*)
1 pc (Select by region)
Heater 1 pc
Cassette support plate 1 pc
High temperature caution label 1 pc
[B]
[A]
