5. Turn switch marked “WATER HEATER”, which is located on the
monitor panel to “ON” position. If the burner does not light, the
system will automatically attempt two more tries for ignition
before lock out. NOTE: Each ignition cycle will have a fifteen
second purge before next spark cycle begins again, if the
system is a three try board
6. If lock-out occurs before main burner lights, turn switch to “OFF”,
wait five seconds and turn switch to “ON” position. This will
restart the ignition cycle. The first start-up of the water heater
may require several attempts before all air is purged from the
propane lines.
If the burner will not come on, the following items should be checked
before calling a service person:
1. Switch turned off.
2. Propane supply to heater is empty or turned off.
3. Reset button on ECO is tripped.
4. If burner fails to light, call a Suburban Service center or a local
RV Service agency.
Operating Instructions—Electric Element
Electric water heaters are designed to operate with a minimum
amount of service problems, however proper operation and care is
essential.
By far the most common trouble with electric water heaters results
from energizing the water heater before it is filled with water. Even
brief operation of the electric element without water in the tank will
burn-out the electric heating element.
Before the electric element will operate, the switch located behind the
water heater door in the lower left corner of the control housing must
be in the “ ON “ position.

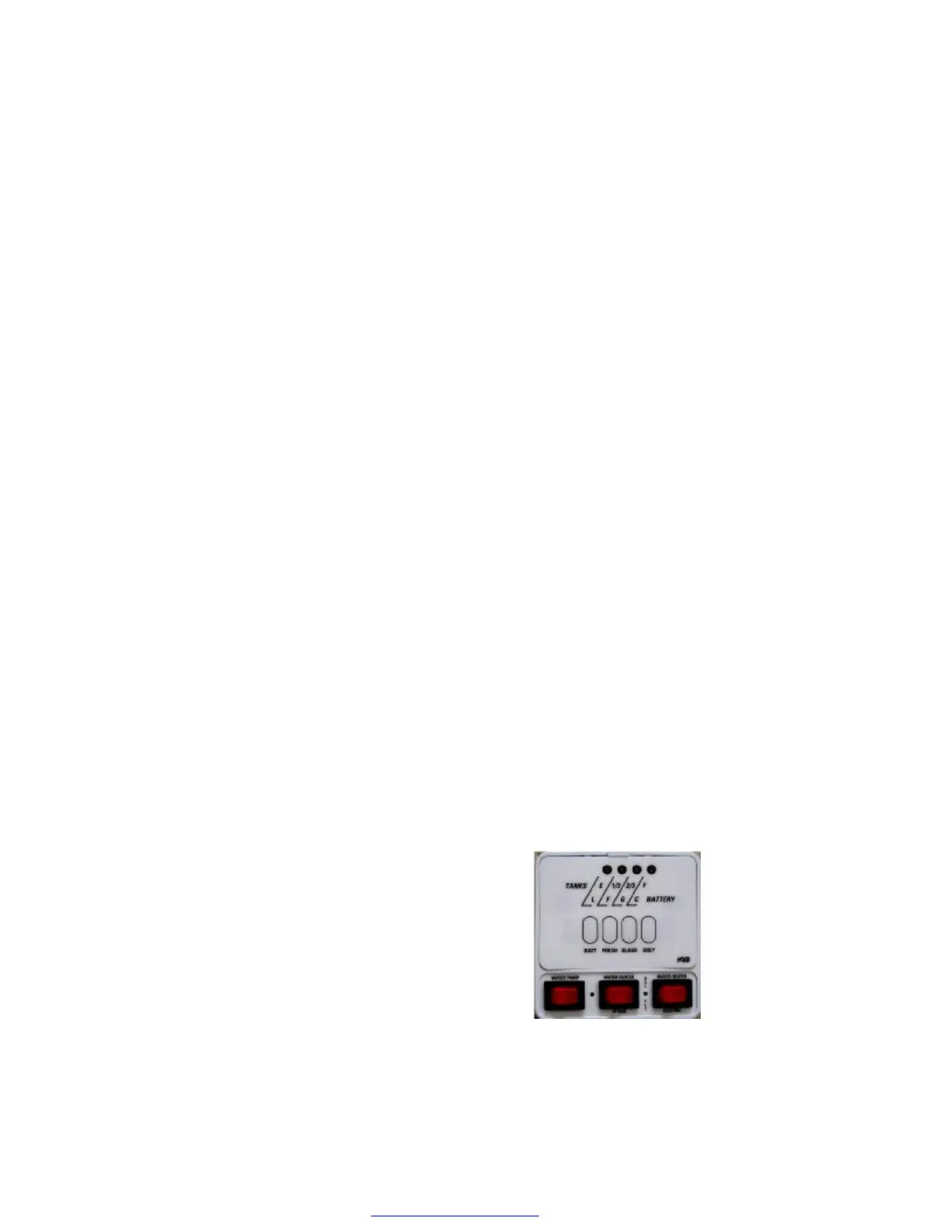

To energize the electric element, locate
the switch, which is on the bottom of
monitor panel, flip the switch marked
“ELECTRIC“ to the ON position. The water
temperature will be regulated by the
thermostat.
To Turn Off Water Heater
1. Turn switch to “ OFF “ Position.
