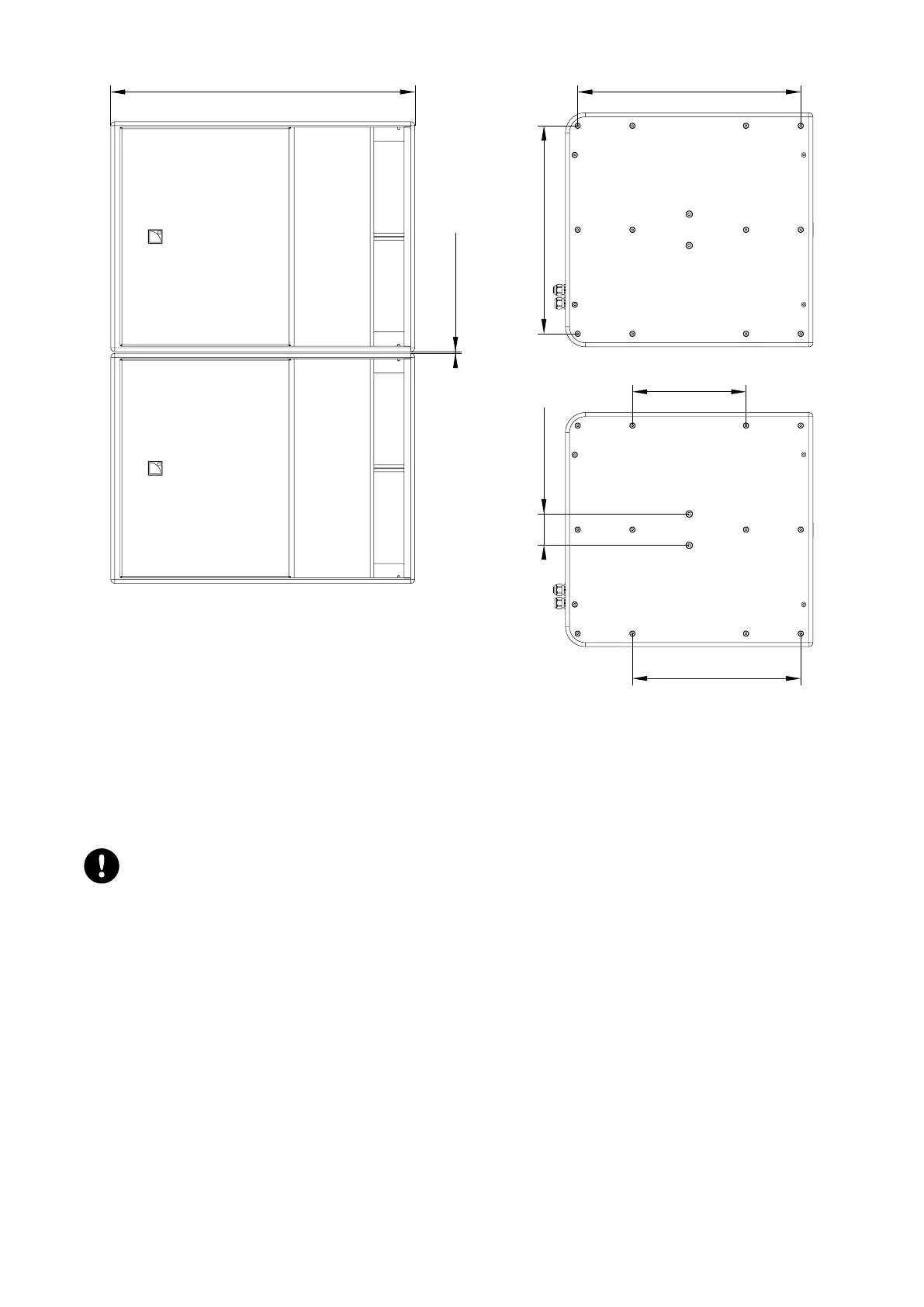

Specications for custom rigging systems
542 mm / 21.3 in
505.4 mm / 19.9 in
276 mm / 10.9 in
76 mm / 3 in
409 mm / 16.1 in
4 mm / 0.16 in
751.6 + 3 mm / 29.6 + 0.12 in
KS21i
Screws
• The grade and threaded length of screws used on the enclosures depend on the design of the metal sheets on the
array.
• Recommended screws for a 3 mm thickness metal sheet: M6x18.
Risk of damaging the ns if the length is not respected
Adapt the length of the screws according to the thickness of the sheet.
• Prevent screws from loosening (threadlocker, spring washer...).
Threaded inserts
• Ultimate Tensile Strength: 1160 N
• Ultimate Shear Strength: 5370 N
• Recommended torque: 5 N.m for M6 inserts, 7 N.m for M8 inserts
