Rigging procedures
Mounting an assembly on a ceiling with A15i-TILTBRACKET
Type of deployment ceiling-mounting
Rigging accessories A15i-TILTBRACKET
A15i Wide/Focus rigging plates
Additional accessories M6x18 rigging screws (provided)
4 x M10 screws and anchors
T30 Torx bits
Min number of operators 3

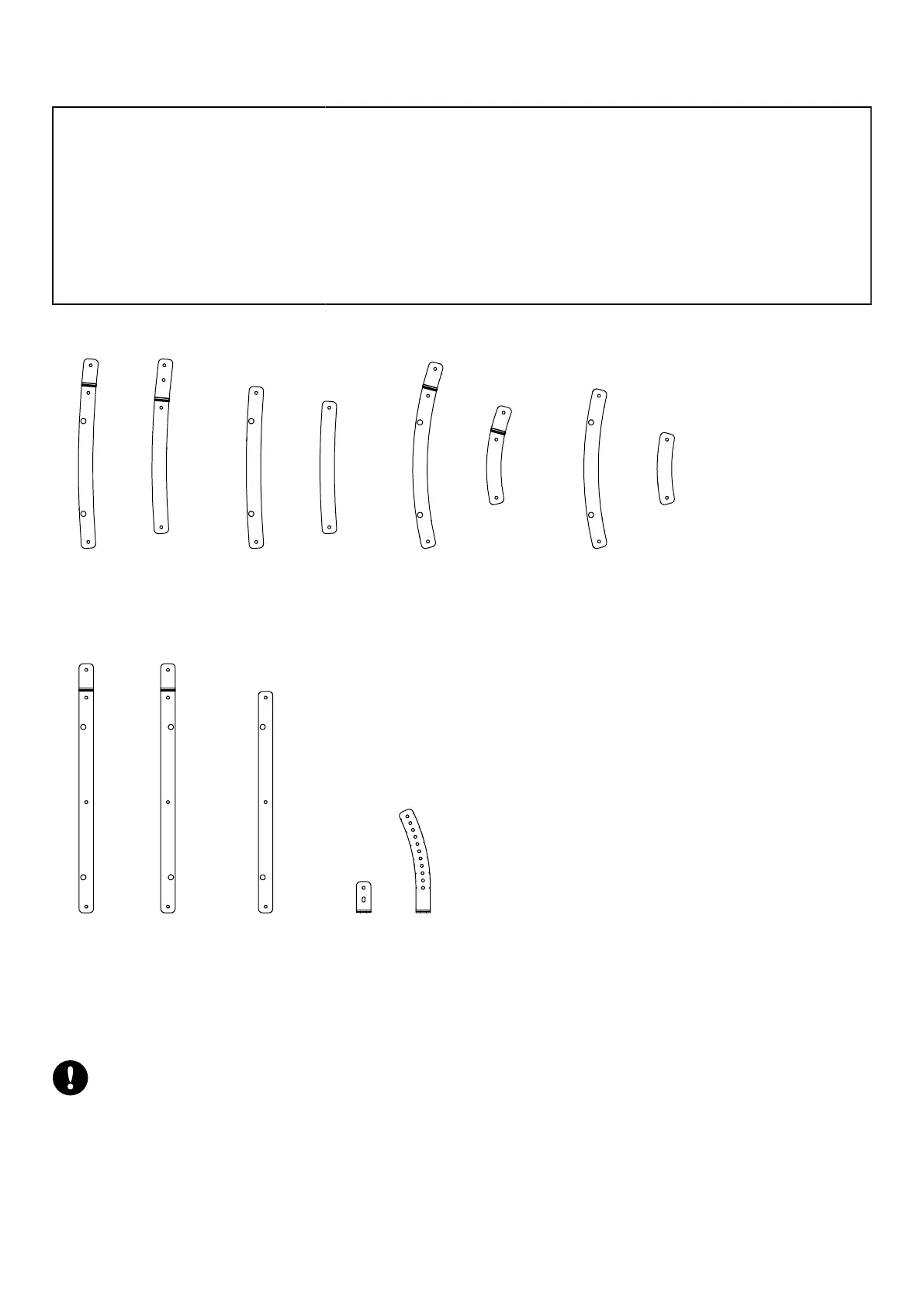

Rigging plates
x2 x2
x2 x2
x2 x2
x2 x2
A15iFOCUS-LINK
Rigging plates
for A15i Focus
A15iFOCUS-ENDLINK
End rigging plates
for A15i Focus
A15iWIDE-LINK
Rigging plates
for A15i Wide
A15iWIDE-ENDLINK
End rigging plates
for A15i Wide
x2 x2
x4
x2 x2
KS21i-LINK
Rigging plates
for KS21i
KS21i-
ENDLINK
End rigging
plates for
KS21i
A15i-TILTBRACKET
Fastening brackets
with angles for A15i
Ai-FIXBRACKET / A15i-TILTBRACKET in ceiling-mounted conguration
In a ceiling-mounted conguration, the array applies a force of 60 daN on the anchoring points.
80 A15i owner's manual (EN) version 1.0
