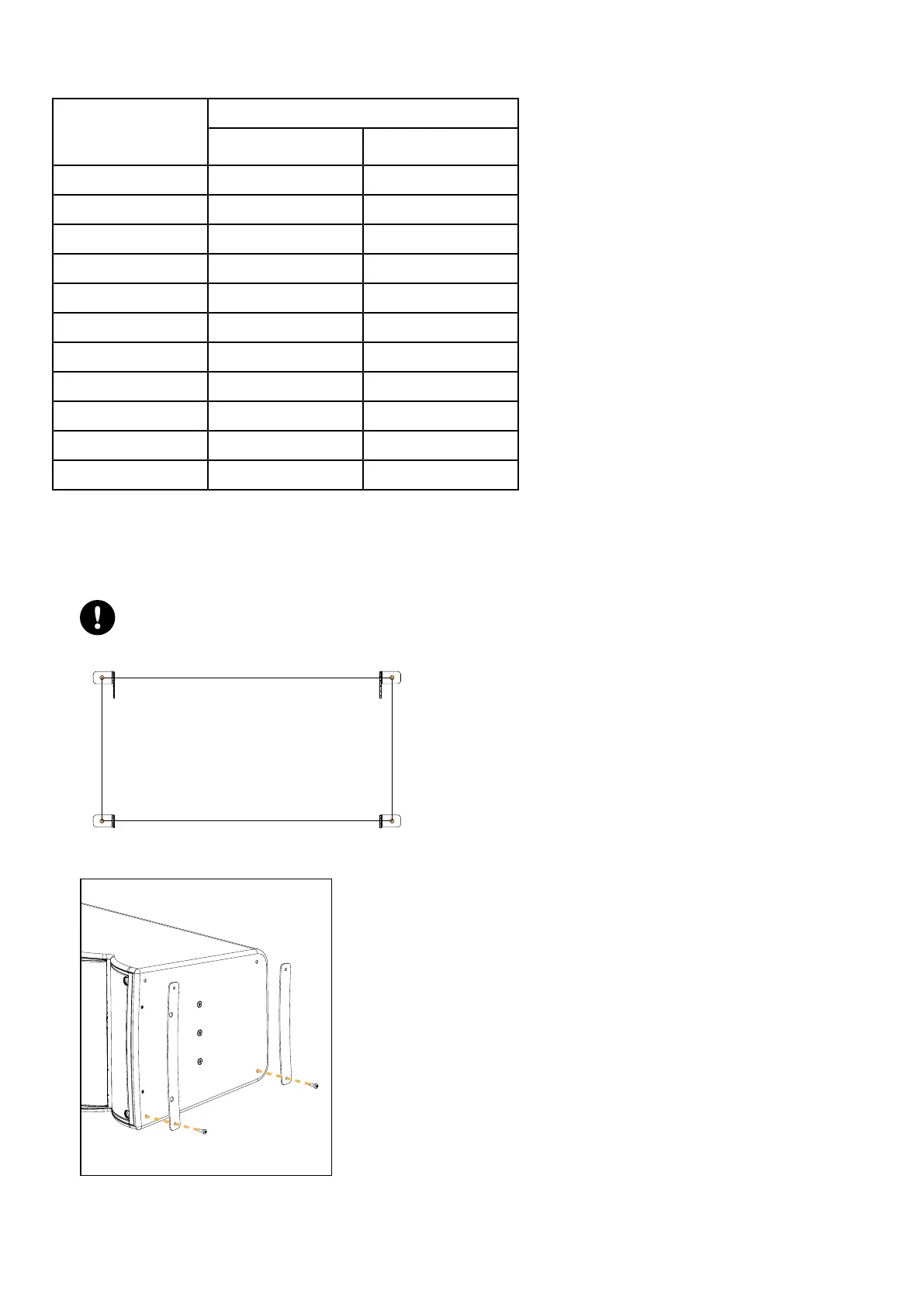

Rigging procedures
Realized site angles (with A15i-TILTBRACKET at the rear)
realized site angleselected angle
on A15i-
TILTBRACKET
A15i Focus A15i Wide
25° 20° 10°
22.5° 17.5° 7.5°
20° 15° 5°
17.5° 12.5° 2.5°
15° 10° 0°
12.5° 7.5° -2.5°
10° 5° -5°
7.5° 2.5° -7.5°
5° 0° -10°
2.5° -2.5 -12.5°
0° -5 -15°
Assembly
Procedure
1. Secure A15i-TILTBRACKET to the ceiling using M10 screws.
Fasteners for wall-mounting or ceiling-mounting
Select screw length and anchors applicable to the wall or ceiling properties.
829 mm / 32.6 in
409 mm / 16 in
2. Prepare an enclosure by removing the placeholder screws and securing end rigging plates on both sides.
A15i owner's manual (EN) version 1.0 81
