Rigging procedures
Wall-mounting or ceiling-mounting
Mounting an assembly with A-U15i
Type of deployment ceiling-mounting, wall-mounting
Rigging accessories A-U15i
U-bracket rigging plates
Additional accessories M8x35 rigging screws (provided)
4 x M10 screws and anchors
T40 Torx bits
Min number of operators 3

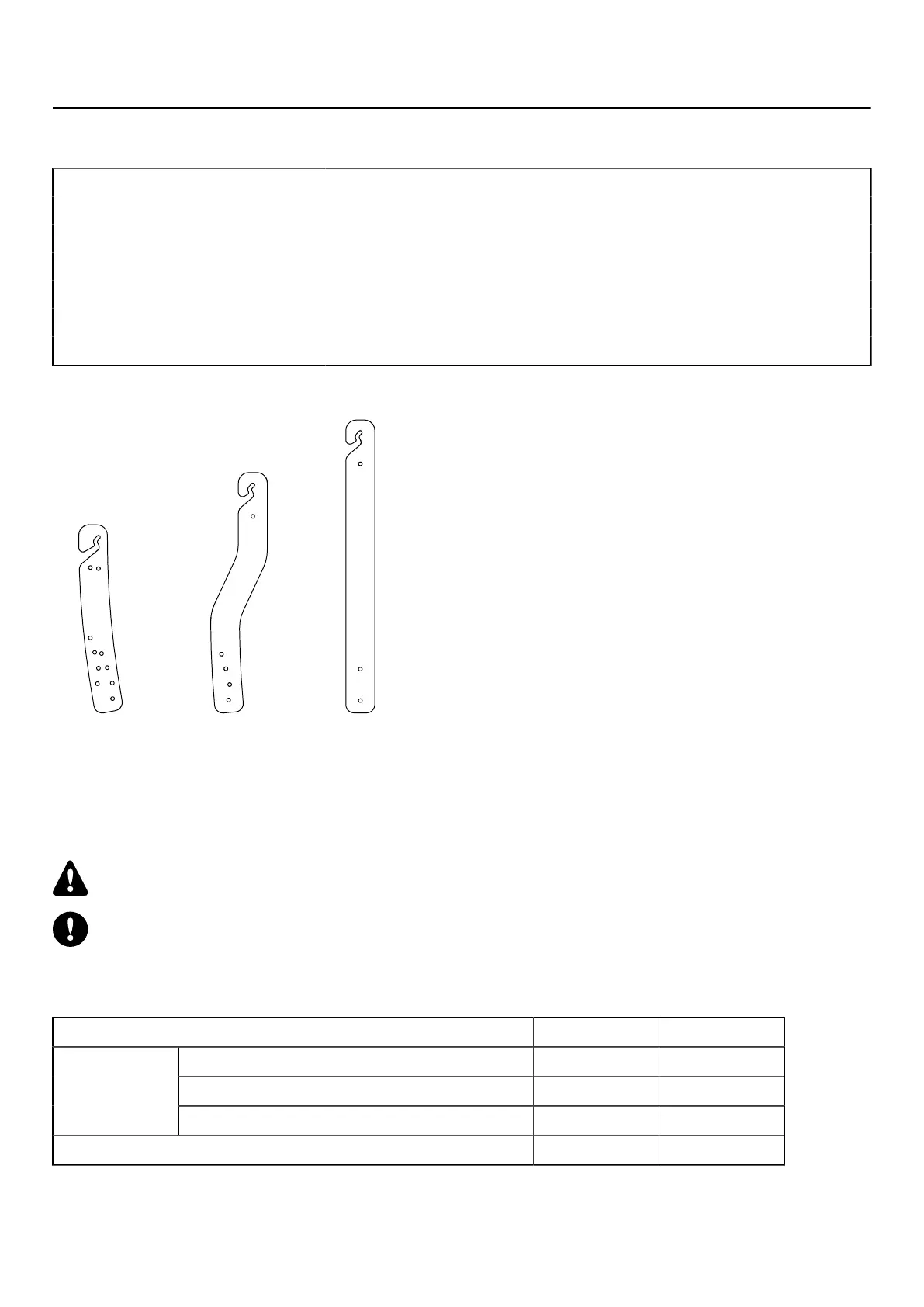

Rigging plates
x2
x2
x2
A15i-ULINK
Rigging plates
for ying two
A15i with A-U15i
A15iKS21i-ULINK
Rigging plates for
ying A15i under
KS21i with A-U15i
KS21i-ULINK
Rigging plates
for ying
two KS21i
with A-U15i
Additional safety for own arrays
When ying an array, use available holes to implement a secondary safety.
The procedure is shown with A-U15i in horizontal position.
The same procedure applies for all congurations with A-U15i. Refer to APPENDIX B: Congurations with A-U15i
(p.113).
Resistance value of anchoring points
Conguration Tensile load Shear load
A-U15i in horizontal position, with 1 enclosure 275 daN 65 daN
A-U15i in horizontal position, with 2 enclosures 375 daN 75 daNWall-mounted
A-U15i in vertical position, with 1 enclosure 40 daN 30 daN
Ceiling-mounted 150 daN —
74 A15i owner's manual (EN) version 1.0
